MAINTENANCE AND ADJUSTMENT
182
To install the left hand cockpit infill
panel:
▼ Fit the front end of cockpit infill
panel as noted for removal and slide
the lugs into the two retaining clips.
▼ Fit the push release plastic rivet
securing the cockpit infill panel to
the fairing.

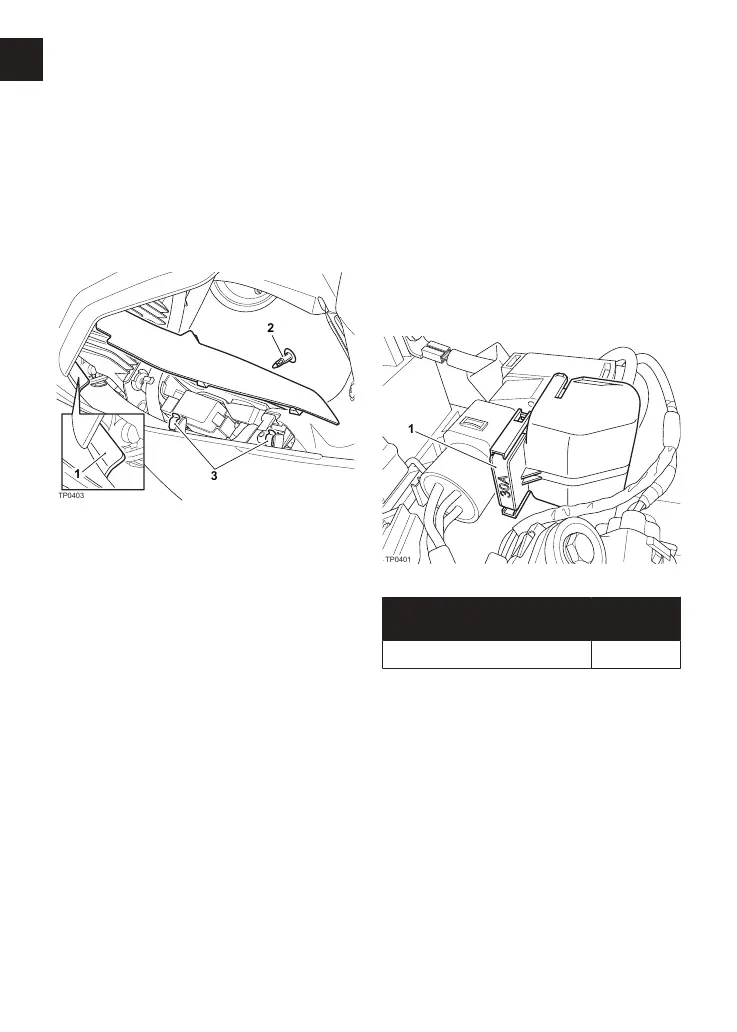

1. Cockpit infill panel locating feature
2. Push release plastic rivet
3. Retaining clips
Fuse Identification
The fuse identification numbers listed in
the tables correspond with those
printed on the fuse box covers, as
shown below.
Spare fuses are located on the inside of
the fuse box covers and should be
replaced if used.
All Models
Main Fuse Box
Main Fuse Box
Fuse Number and Circuit
Protected
Rating
(Amps)
Fuse 1 - Main fuse 30
To Next Page
