MAINTENANCE AND ADJUSTMENT
183
Trident

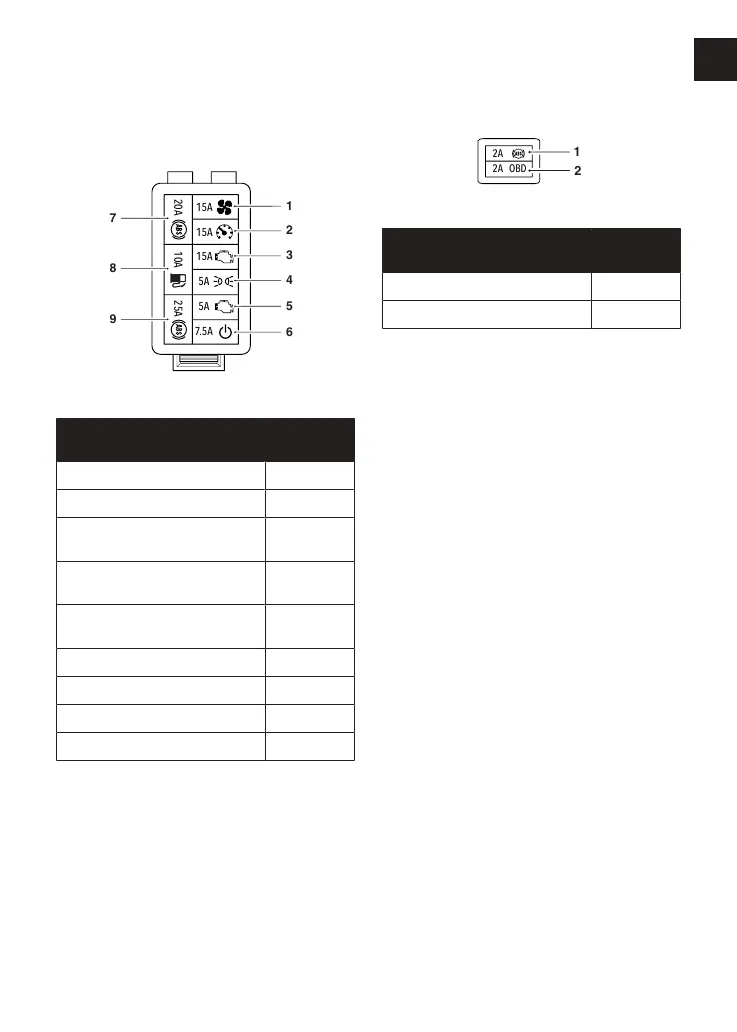

Fuse Box 1
15A
15A
5A
.5A
20A 10A 25A
5A
7
15A
9
1
2
3
4
5
6
7
8
Fuse Box 1
Fuse Number and Circuit
Protected
Rating
(Amps)
Fuse 1 - Cooling fan 15
Fuse 2 - Instruments 15
Fuse 3 - Engine Management
System (EMS)
15
Fuse 4 - Position light, rear light,
licence plate light and USB
5
Fuse 5 - Engine Control Unit
(ECU)
5
Fuse 6 - Ignition 7.5
Fuse 7 - ABS solenoid 20
Fuse 8 - Fuel pump 10
Fuse 9 - ABS motor 25
Fuse Box 2
2A
2A OBD
1
2
Fuse Box 2
Fuse Number and Circuit
Protected
Rating
(Amps)
Fuse 1 - ABS ECU 2
Fuse 2 - Diagnostics 2
