MAINTENANCE AND ADJUSTMENT
184
TigerSport

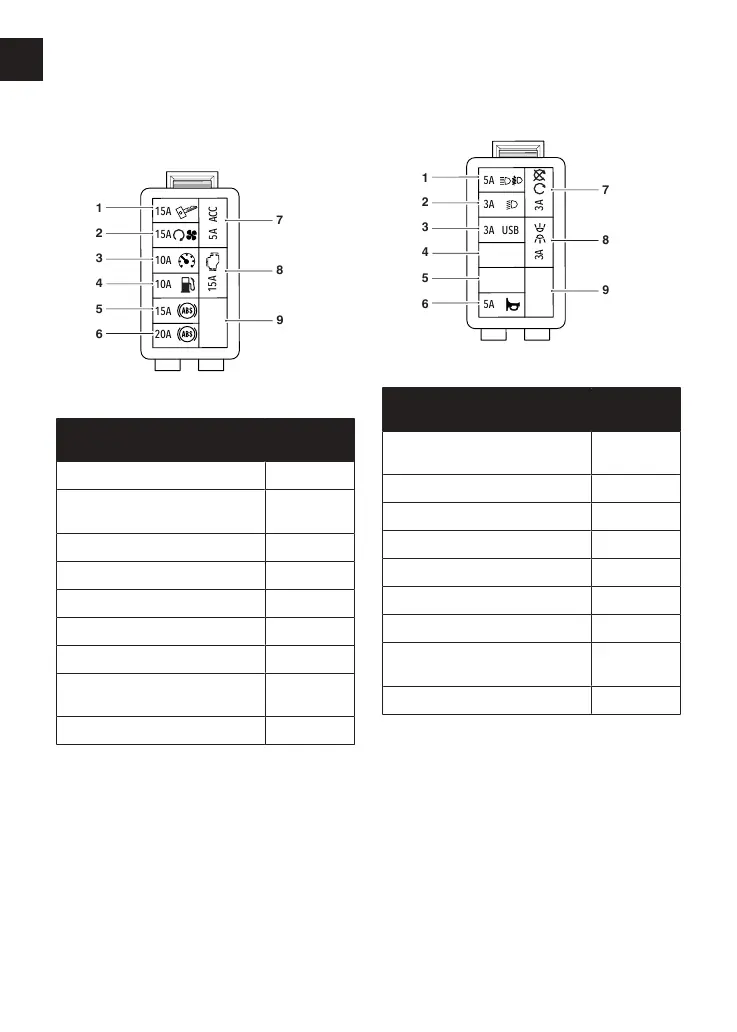

Fuse Box 1
20A
15A
10A
15A
5A ACC
15A
10A
15A
1
2
3
4
5
6
7
8
9
Fuse Box 1
Fuse Number and Circuit
Protected
Rating
(Amps)
Fuse 1 - Ignition 15
Fuse 2 - Starter motor and
cooling fan
15
Fuse 3 - Instruments 10
Fuse 4 - Fuel pump 10
Fuse 5 - ABS solenoid 15
Fuse 6 - ABS pump 20
Fuse 7 - Accessory 5
Fuse 8 - Engine Management
System (EMS)
15
Fuse 9 - Empty -
Fuse Box 2
USB
5A
3A
3A
3A
3A
5A
1
2
3
6
7
8
4
5
9
Fuse Box 2
Fuse Number and Circuit
Protected
Rating
(Amps)
Fuse 1 - Main beam and fog
lights
5
Fuse 2 - Dipped beam 3
Fuse 3 - USB 3
Fuse 4 - Empty -
Fuse 5 - Empty -
Fuse 6 - Horn 5
Fuse 7 - Run/stop switch 3
Fuse 8 - Position light, rear light
and licence plate light
3
Fuse 9 - Empty -
