MAINTENANCE AND ADJUSTMENT
178
Battery - Installation
WARNING
Make sure the motorcycle is stabilised
and adequately supported.
Do not support the motorcycle on any
ancillary component, the exhaust
system or any other non structural
parts of the motorcycle frame.
A correctly supported motorcycle will
help prevent it from falling.
An unstable motorcycle may fall
resulting in motorcycle damage,
serious injury or death.
WARNING
Make sure that the battery terminals
do not touch the motorcycle frame.
This may cause a short circuit or
spark which would ignite battery
gases.
Failure to follow the advice above
could result in serious injury or death.
Trident
▼ Position the battery into its housing.
▼ Insert the battery spacer.
▼ Fit the battery strap.
NOTICE
The battery positive and negative
leads are to be connected to the
vertical face of the battery terminals.
The battery positive lead routes
underneath the diagnostic connector
cable and clips to the Engine ECM
moulding.
▼ Reconnect the battery, positive (red)
lead first and then the negative lead,
routing the positive lead underneath
the diagnostic connector cable.
▼ Tighten the battery terminals to 4.5
Nm.

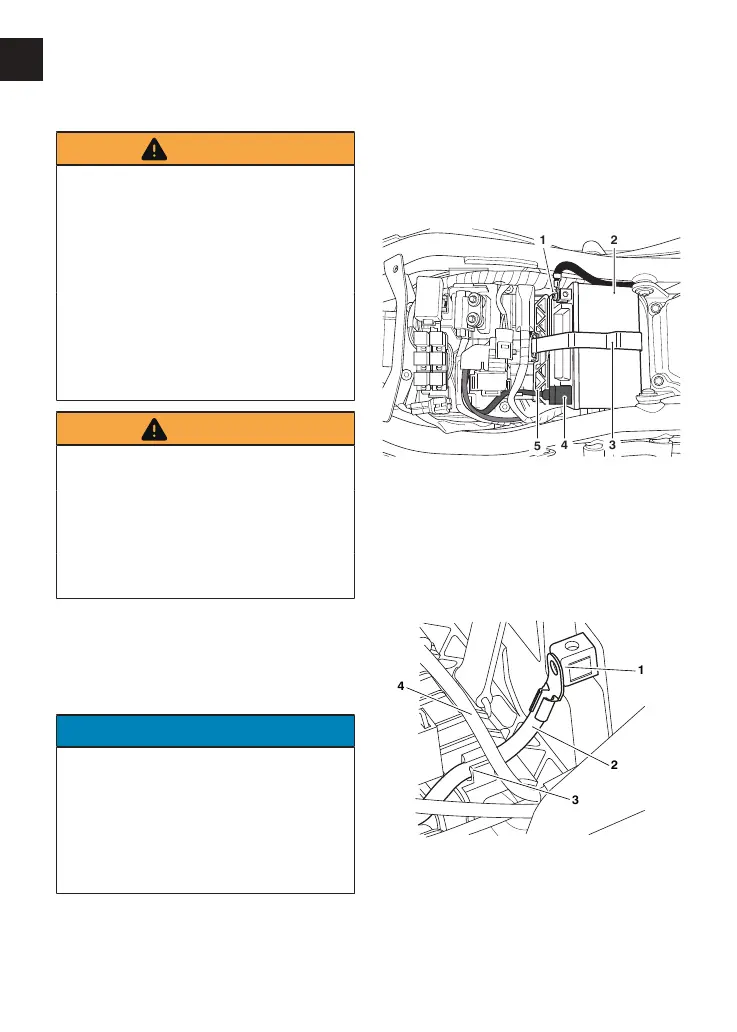

1. Negative (black) terminal
2. Battery
3. Battery strap
4. Positive (red) terminal
5. Battery spacer
▼ Make sure the battery positive (red)
lead is clipped to the engine ECM
tray.
1. Battery positive terminal
2. Battery positive lead
3. Retaining feature on engine ECM moulding
4. Diagnostic connector cable
▼ Apply a light coat of grease to the
terminals to prevent corrosion.
