MAINTENANCE AND ADJUSTMENT
185
Daytona660

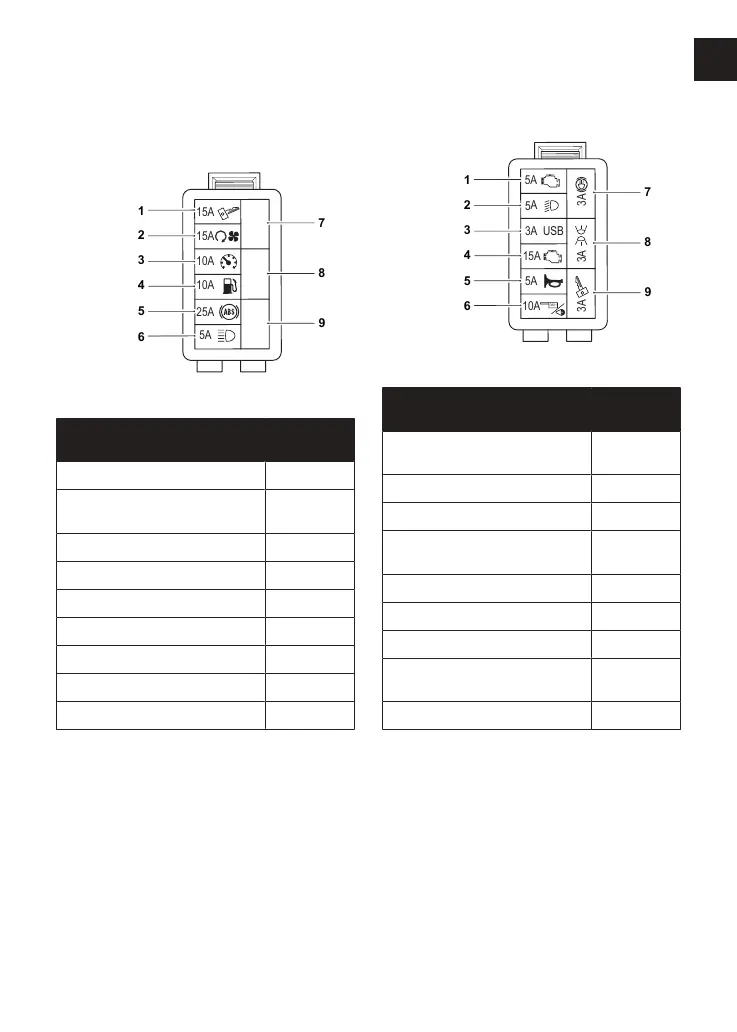

Fuse Box 1
5A
25A
10A
15A
15A
10A
1
2
3
4
5
6
7
8
9
Fuse Box 1
Fuse Number and Circuit
Protected
Rating
(Amps)
Fuse 1 - Ignition 15
Fuse 2 - Starter motor and
cooling fan
15
Fuse 3 - Instruments 10
Fuse 4 - Fuel pump 10
Fuse 5 - ABS 25
Fuse 6 - Main beam 5
Fuse 7 - Empty -
Fuse 8 - Empty -
Fuse 9 - Empty -
Fuse Box 2
3A
USB
3A
15A
5A
5A
A3
5A
3A
10A
OBD 1
1
2
3
4
5
6
7
8
9
Fuse Box 2
Fuse Number and Circuit
Protected
Rating
(Amps)
Fuse 1 - Engine Control Unit
(ECU)
5
Fuse 2 - Dipped beam 5
Fuse 3 - USB 3
Fuse 4 - Engine Management
System (EMS)
15
Fuse 5 - Horn 5
Fuse 6 - Diagnostics 10
Fuse 7 - Brake light 3
Fuse 8 - Position light (if fitted),
rear light and licence plate light
3
Fuse 9 - Ignition 3
