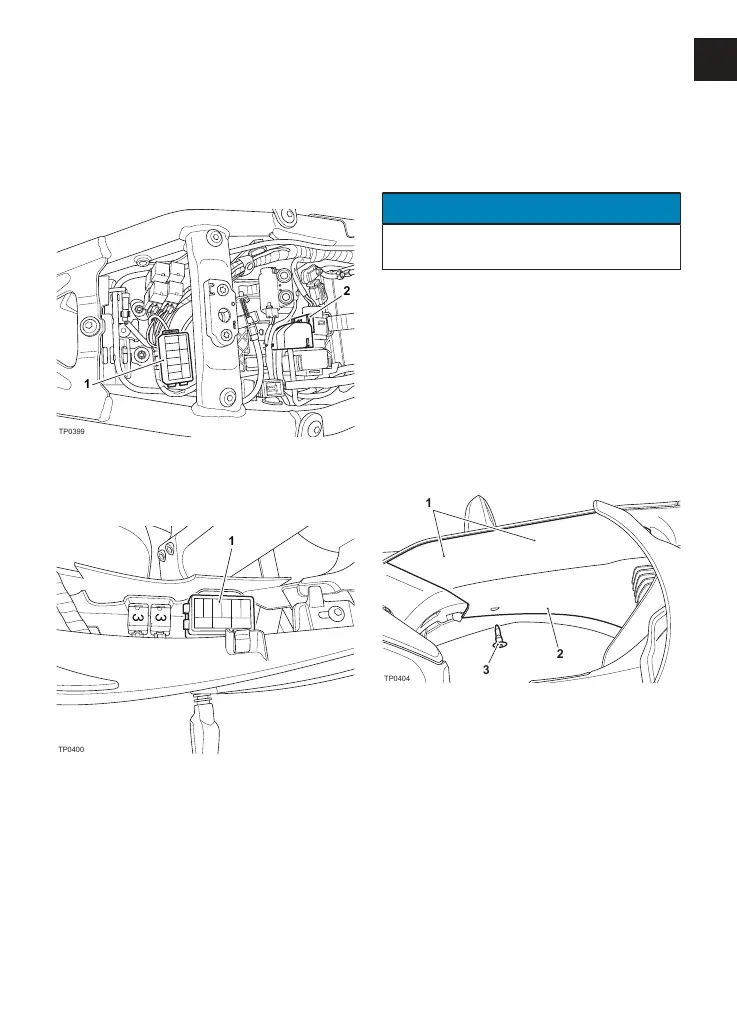

Fuse box 1 and the main fuse are
located underneath the seat. To allow
access to the fuse boxes, the seat must
be removed (see page89).
1. Fuse box 1
2. Main fuse (30 Amp)
Fuse box 2 is located under the left
hand cockpit infill panel.
1. Fuse box 2
To remove the left hand cockpit infill
panel:
▼ Slide the deflector fairing downwards
to detach it from its retaining tang.
NOTICE
Note the position of the front end of
the cockpit infill panel for installation.
▼ Remove the push release plastic rivet
securing the cockpit infill panel to
the fairing.
▼ Lift the lower edge of the cockpit
infill panel to release it from its two
retaining clips.
▼ Slide the cockpit infill panel
rearwards for removal.
1. Retaining clips location
2. Cockpit infill panel
3. Push release plastic rivet
