3-5-6
Orig
CD373
Chapter 3
Section 5 MZ Tow Tractor

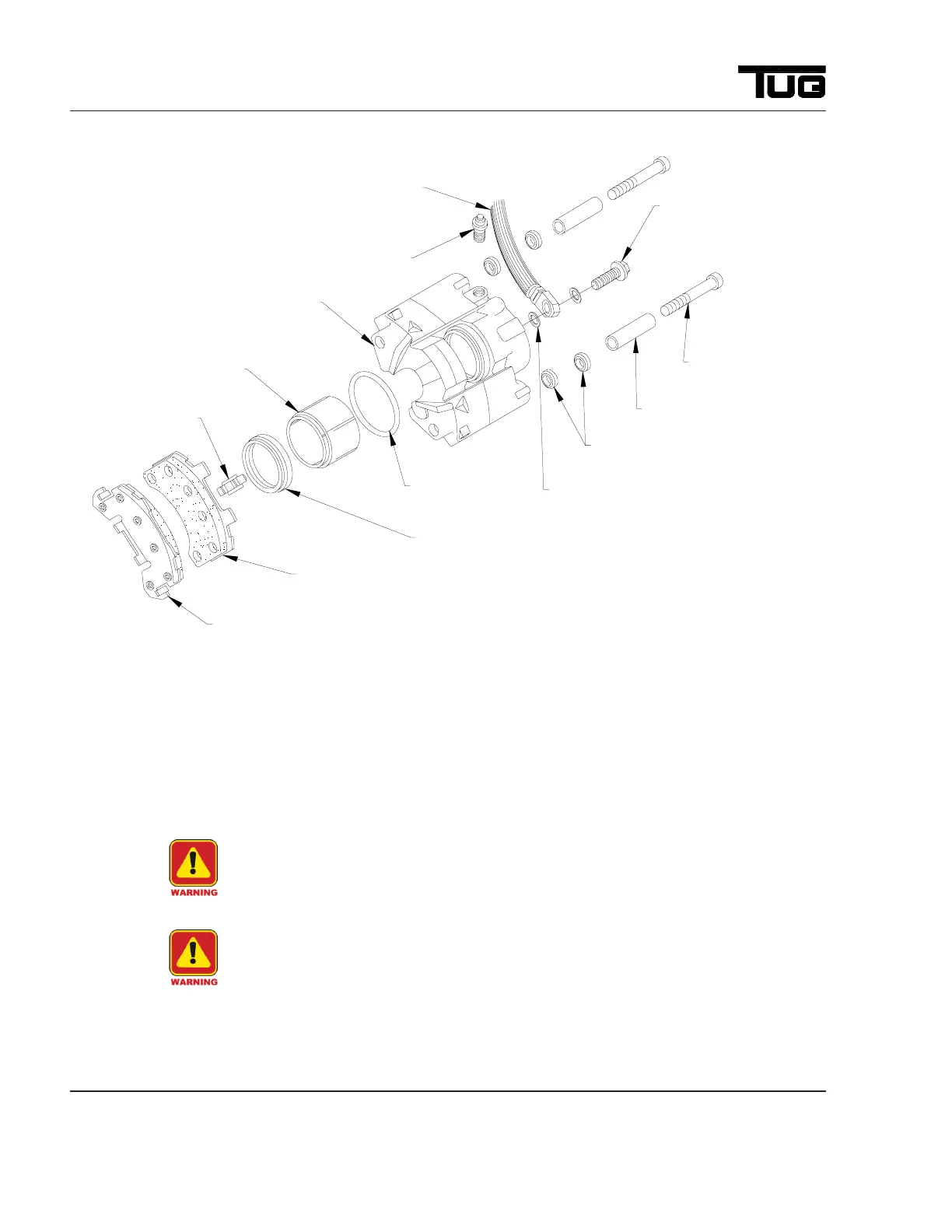

Figure 5-6. Front-Wheel Disc Brake Caliper
WARNING: USE OF COMPRESSED AIR WITHOUT WOOD BLOCK
MAY RESULT IN PERSONAL INJURY AND/OR DAMAGE TO THE
PISTON.
WARNING: ALWAYS WEAR SUITABLE EYE PROTECTION WHEN
USING COMPRESSED AIR TO PREVENT POSSIBLE EYE INJURY.
(e) Support caliper in a vise and pad caliper interior with shop cloths. Use a piece of 1 x
6 soft pine to prevent piston from coming out completely
(Figure 5-7).
INBOARD PAD
AND LINING
OUTBOARD PAD
AND LINING
PAD RETAINER
CALIPER
HOUSING
O-RING
SLEEVE
HOUSING
RETAINER BOLT
BLEED VALVE
BRAKE HOSE
BOLT
WASHER BRAKE
HOSE
PISTON
CALIPER BOOT
BRAKE HOSE
PISTON SEAL
