7. Check-Out
(a) Check brake pedal for sponginess or hard pedal.
(b) Drive vehicle slowly and make several slow speed stops.
(c) Check all brake fluid line fittings and caliper areas for fluid leakage.
(d) Correct any discrepancies before returning vehicle to service.
C. CALIPER OVERHAUL
The following overhaul procedures are for the front-wheel, disc-brake, calipers (Figure 5-6). Remove
caliper assembly as described in paragraph B.2. of this section.
1. Disassembly
(a) Move the caliper to a work bench for overhaul.
(b) Drain fluid from caliper.
(c) Remove pad and spring clip from end of piston.
(d) Before beginning caliper disassembly, thoroughly clean exterior using denatured
alcohol.

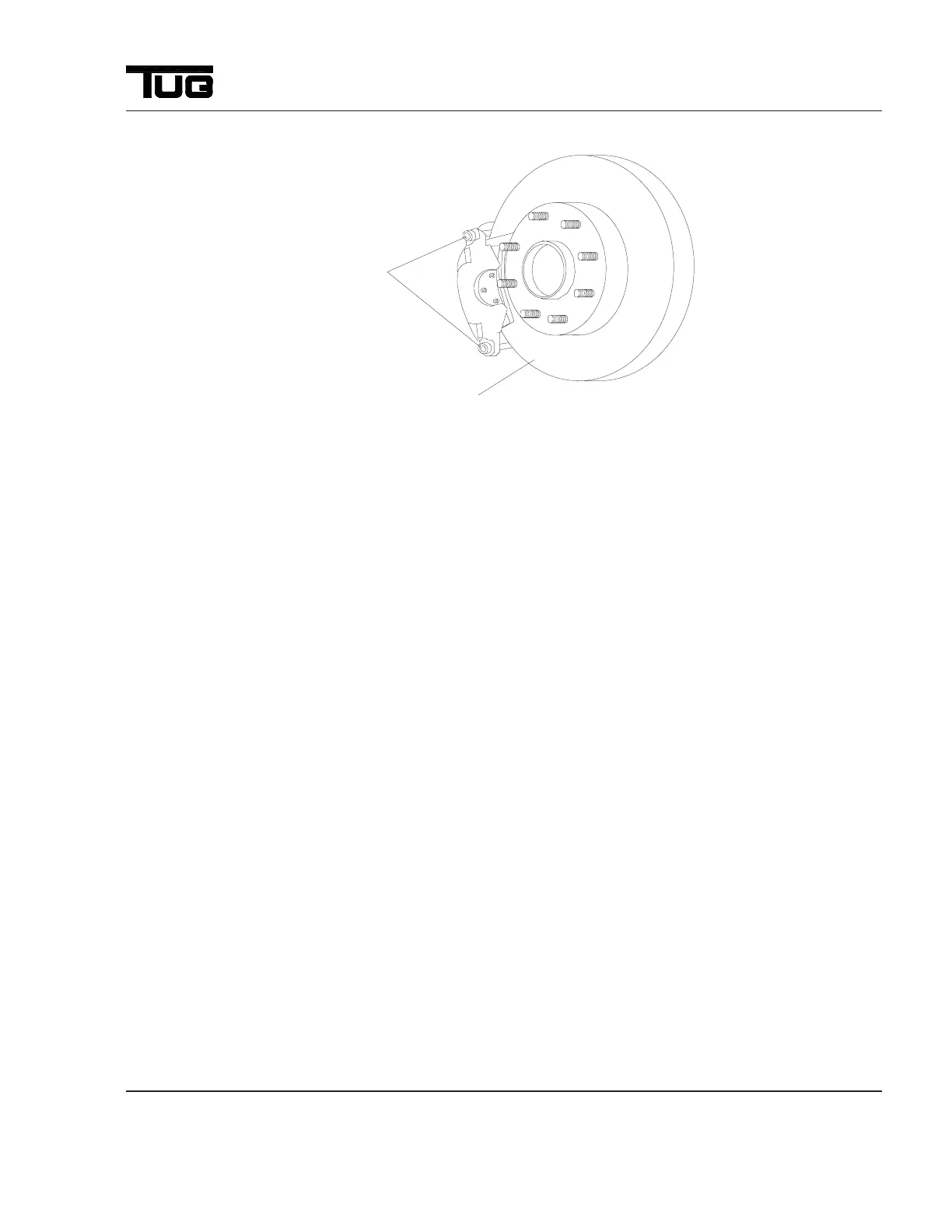

Figure 5-5. Caliper Mounting Bolts
ROTOR
MOUNTING
BOLTS
