D. LUBRICATION CHART

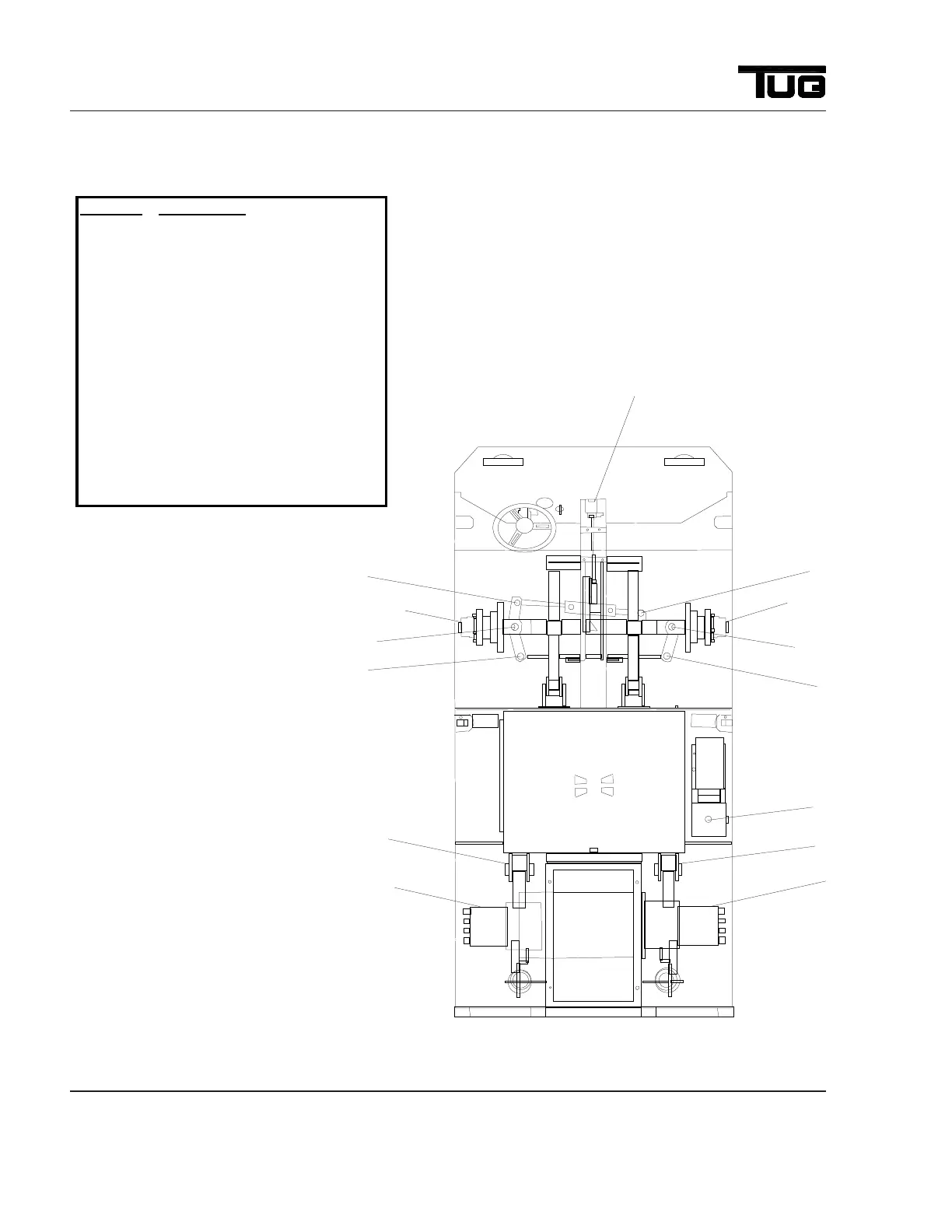

Figure 1-1. Lubrication Points
Find No. Component
1 Tie Rod Ends
2 King Pins
3 Wheel Bearings
4 Transaxle
5 Master Cylinder
6 Power Steering Fluid Reservoir
7 Motor Pivot Pins
