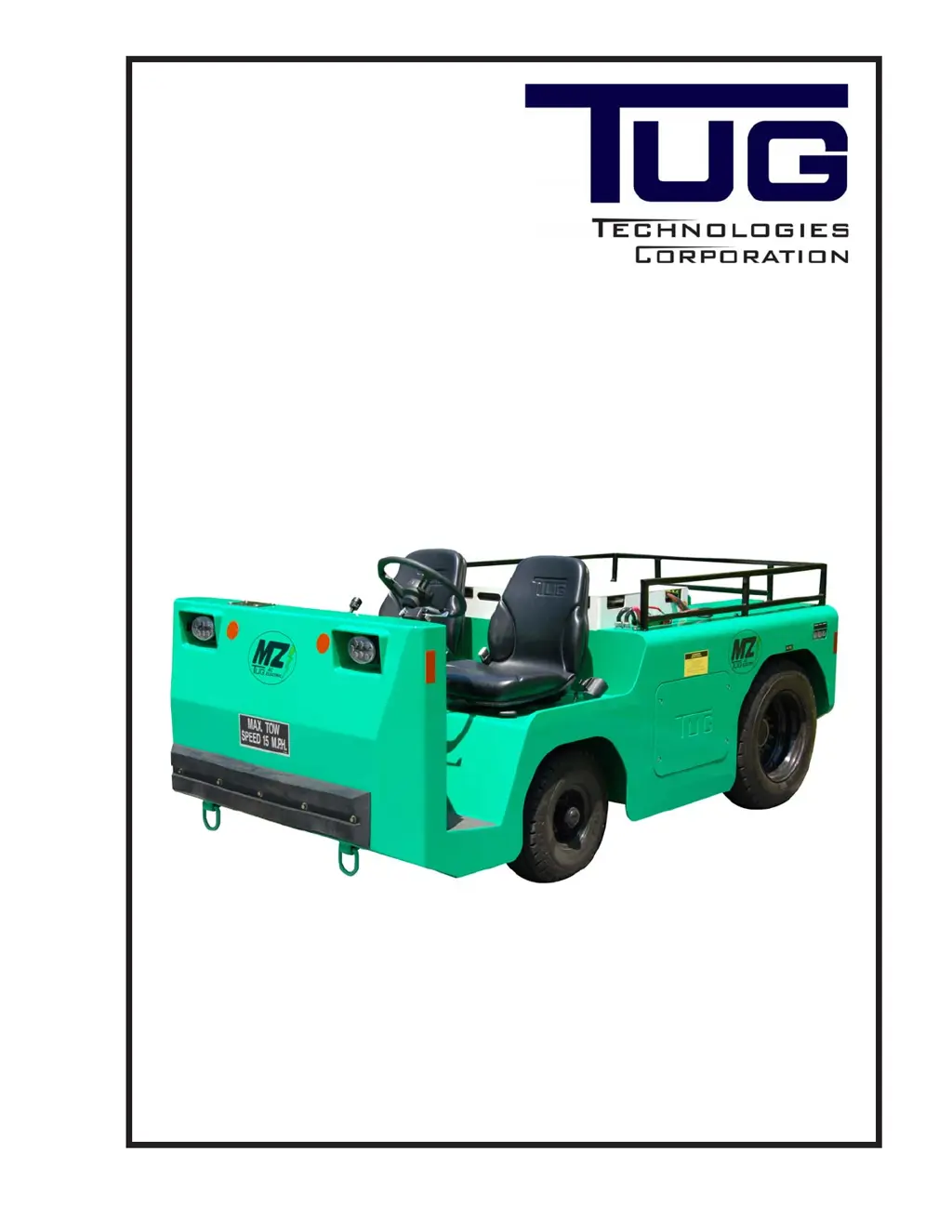

OPERATION, MAINTENANCE
& PARTS MANUAL
MODEL MZ
TOW TRACTOR
CD373

Table of Contents

Questions and Answers

  • P
    Peter RobersonAug 13, 2025
    Why are the headlights on my TUG MZ Tractor working poorly?
    • H
      Holly BrownAug 14, 2025
      If the headlights on your TUG Tractor are working poorly, intermittently, or not at all, the issue might stem from several causes. First, check for blown or damaged fuses or circuit breakers and replace them if necessary. Another potential reason is a blown headlight bulb, which should be replaced. A faulty headlight switch could also be the culprit, requiring replacement. Lastly, inspect the wiring, connectors, and grounds for any looseness or breakage, and repair as needed.
  • K
    Kristina JenningsAug 17, 2025
    What to do if stop lights are not working on TUG Tractor?
    • M
      Michael AdamsAug 18, 2025
      If the stop lights on your TUG Tractor are working poorly, intermittently, or not at all, start by checking for blown or damaged fuses or circuit breakers and replace them. Also, inspect the bulbs and replace them if they are blown. A faulty brake light switch can also cause this issue, so replace the switch if necessary. Finally, check the wiring, connectors, and grounds for any looseness or breakage, and repair as needed.
  • J
    jacob99Aug 21, 2025
    Why does the horn sound continuously on my TUG Tractor?
    • W
      William DanielsAug 21, 2025
      If the horn on your TUG Tractor sounds continuously, it could be due to a few reasons. A shorted wire between the horn button and relay might be the cause; in this case, repair or replace the wiring as needed. Another possibility is a stuck horn button, which should be repaired or replaced. Lastly, a faulty or shorted relay could also be the problem, requiring the relay to be replaced.
  • S
    Shawn FriedmanAug 25, 2025
    Why is the steering difficult on my TUG MZ Tractor?
    • F
      francistaraAug 26, 2025
      If your TUG Tractor's steering is difficult, consider these possible causes: a lack of lubrication on the axle, which can be solved by lubricating it; low fluid in the power steering fluid reservoir, in which case you should check for leaks, replace any damaged parts, and add fluid as needed; a damaged or faulty steering cylinder, which may need replacement; or a damaged CharLynn valve, which should also be replaced.
  • E
    elizabeth16Aug 28, 2025
    What causes back-up lights to fail on a TUG MZ Tractor?
    • J
      jonathan10Aug 28, 2025
      If the back-up lights on your TUG Tractor are working poorly, intermittently, or not at all, begin by checking for blown or damaged fuses or circuit breakers and replace them. Inspect the bulbs and replace them if blown. A faulty back-up light switch might also be the issue, so replace it if necessary. Lastly, examine the wiring, connectors, and grounds for any looseness or breakage, and repair them as needed.
  • C
    Christopher LewisSep 1, 2025
    How to fix a horn that doesn't work on a TUG Tractor?
    • L
      Laura GouldSep 2, 2025
      If the horn on your TUG Tractor works intermittently or has no sound, there are several potential causes. It could be due to a blown fuse, which should be replaced. A faulty or shorted relay could also be the issue, requiring replacement. Loose or damaged wiring and the horn button might be the problem, so replace them as required. Lastly, the horn itself may be damaged or faulty, necessitating replacement.
  • B
    Brent BoyleSep 5, 2025
    What to do if the wiper motor doesn't work on TUG MZ?
    • A
      Ashley LongSep 5, 2025
      If the wiper motor on your TUG Tractor works intermittently or not at all, start by checking for a blown fuse and replace it if necessary. Inspect the wiring or connections for any looseness and repair. If the issue persists, the wiper control switch might be faulty, requiring replacement. Finally, the motor itself could be damaged or faulty, and should be replaced as needed.
  • K
    Krista Wood DDSSep 9, 2025
    Why does the front wheel wobble on my TUG MZ Tractor?
    • M
      mejiaashleySep 9, 2025
      If the front wheel of your TUG Tractor appears to wobble, it could be due to loose or worn studs or lug nuts; tighten or replace them, ensuring lug nuts are tightened to 125 ft-lb on the front wheel and 90 ft-lb on the rear. Alternatively, worn or damaged bearings and/or hubs could be the cause, requiring repair or replacement.
