TUG MZ - Fig. 8 Throttle Mapping (Torque Control Mode); Fig. 9 Effect of Gear Soften Parameter (Torque Control Mode); Fig. 10 Effect of Brake Taper Speed Parameter (Torque Control Mode)

Curtis 1234/36/38 Manual, Rev. D
37
1 1 J U LY 2 0 0 8 D R A F T
3 — PROGRAMMABLE PARAMETERS: Fine Tuning Parameters (TORQUE CONTROL MODE)
Fig. 9 Effect
of Gear Soften parameter
(torque control mode).
Fig. 10 Effect of Brake
Taper Speed parameter
(torque control mode).

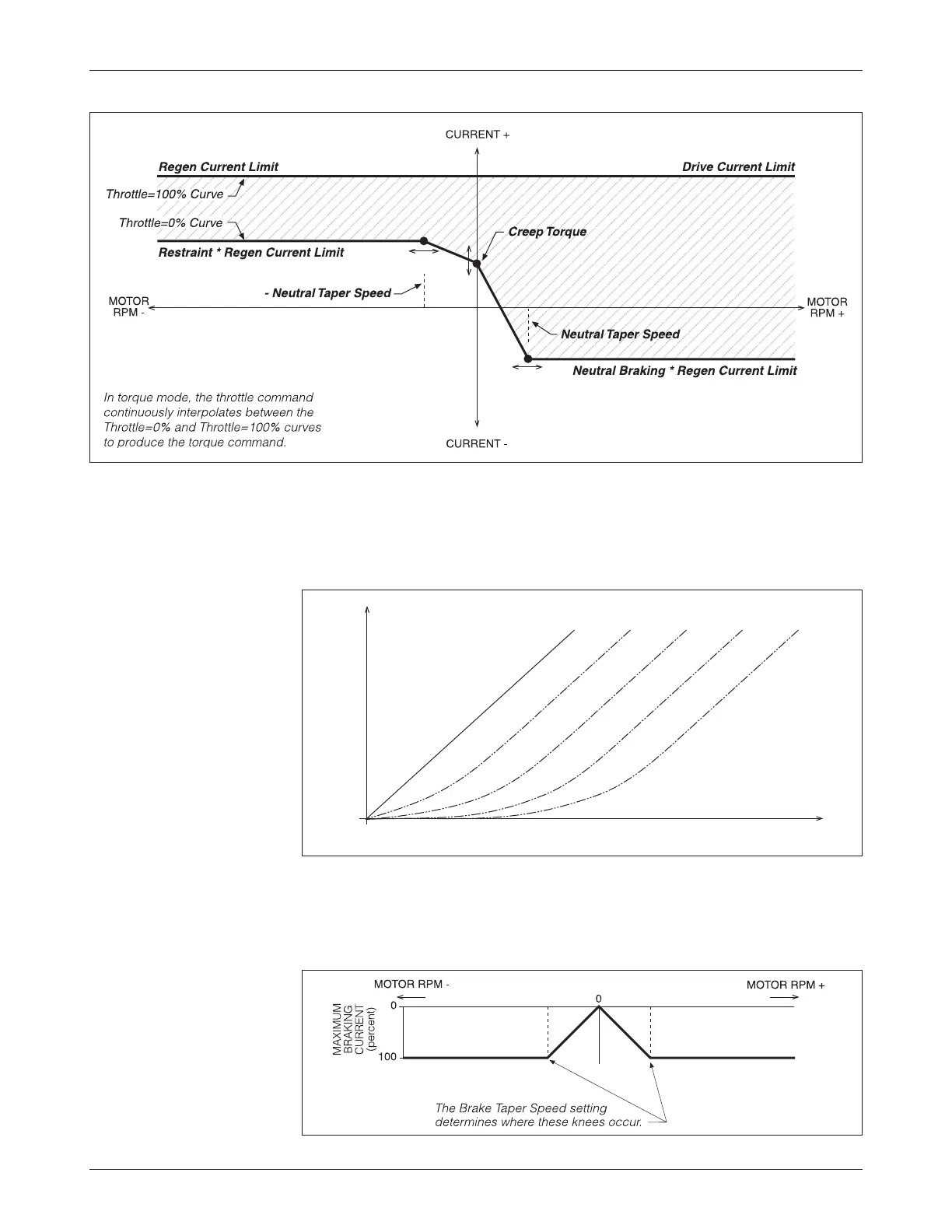

Fig. 8 Throttle mapping (torque control mode).
TIME
TORQUE
Gear Soften = 0%
= 25%
= 50%
= 75%
= 100%
