Curtis 1234/36/38 Manual, Rev. D
41
1 1 J U LY 2 0 0 8 D R A F T
REGEN LIMITING MAP MENU
ALLOWABLE
PARAMETER RANGE DESCRIPTION
Nominal 0–100 % Sets
PL_Regen_Nominal 0
–32767
Plus Delta 0–100 % Sets
PL_Regen_Nominal_Plus_Delta 0
–32767
Plus 2xDelta 0–100 % Sets
PL_Regen_Nominal_Plus_2xDelta 0–32767
Plus 4xDelta 0–100 % Sets
PL_Regen_Nominal_Plus_4xDelta 0–32767
Plus 8xDelta 0–100 % Sets
PL_Regen_Nominal_Plus_8xDelta 0–32767
3 — PROGRAMMABLE PARAMETERS: Regen Limiting Map Parameters
These parameters define the percentage of regen current limit
that will be applied at the speeds defined by the base speed
and delta speed parameters.
The curve can be shaped to limit the available torque at
various speeds. One possible use is to compensate for the
torque-speed characteristic of the motor.

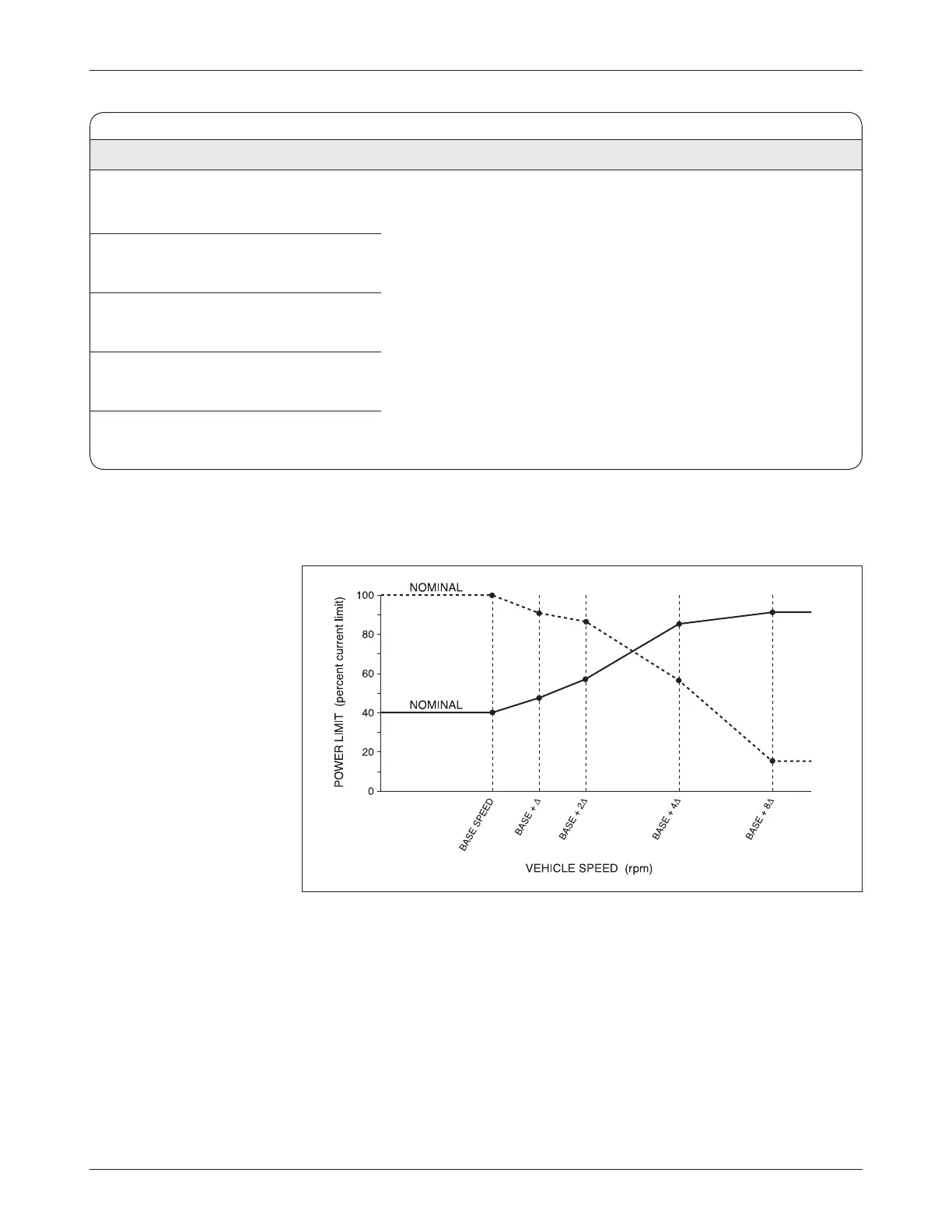

Fig. 12 Regen
current limiting map
(two examples).
