UTG9000T Series Function Abitrary Waveform Generator
106

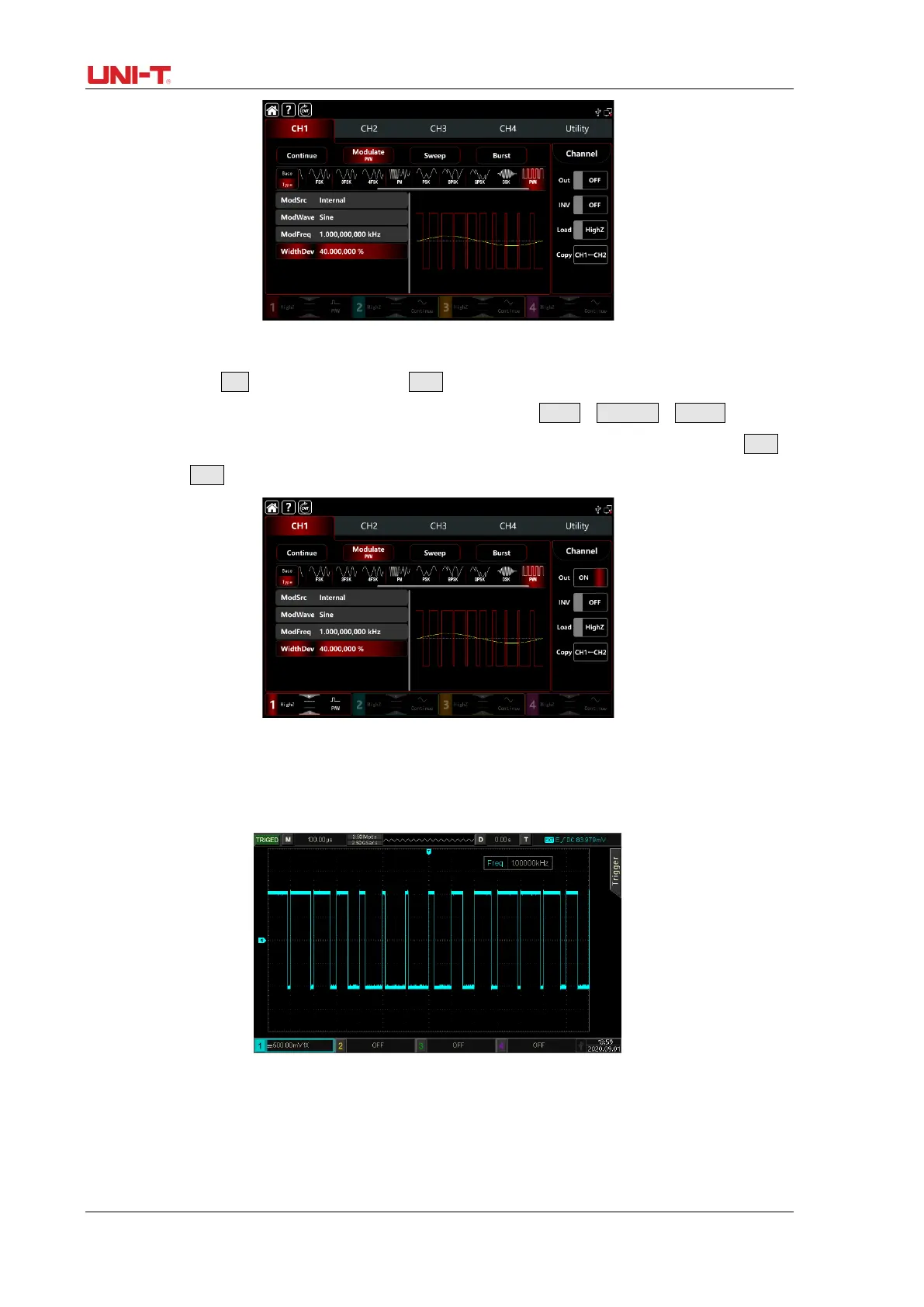

4）Turn on the output channel
Tap channel Out botton to ON or push CH1 key on the front panel to quick set the output
channel,and it can aslo turn on at the Utility interface,tap Utility→Channel→Output or
double-click the channel tab bar at the bottom of the screen to step through ON/OFF. CH1
key and CH1 tab bar backlight light on indicating that the channel 1 output is turned on.
The shape of the FM modulation waveform viewed through an oscilloscope is shown in the
figure below,
