UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
25

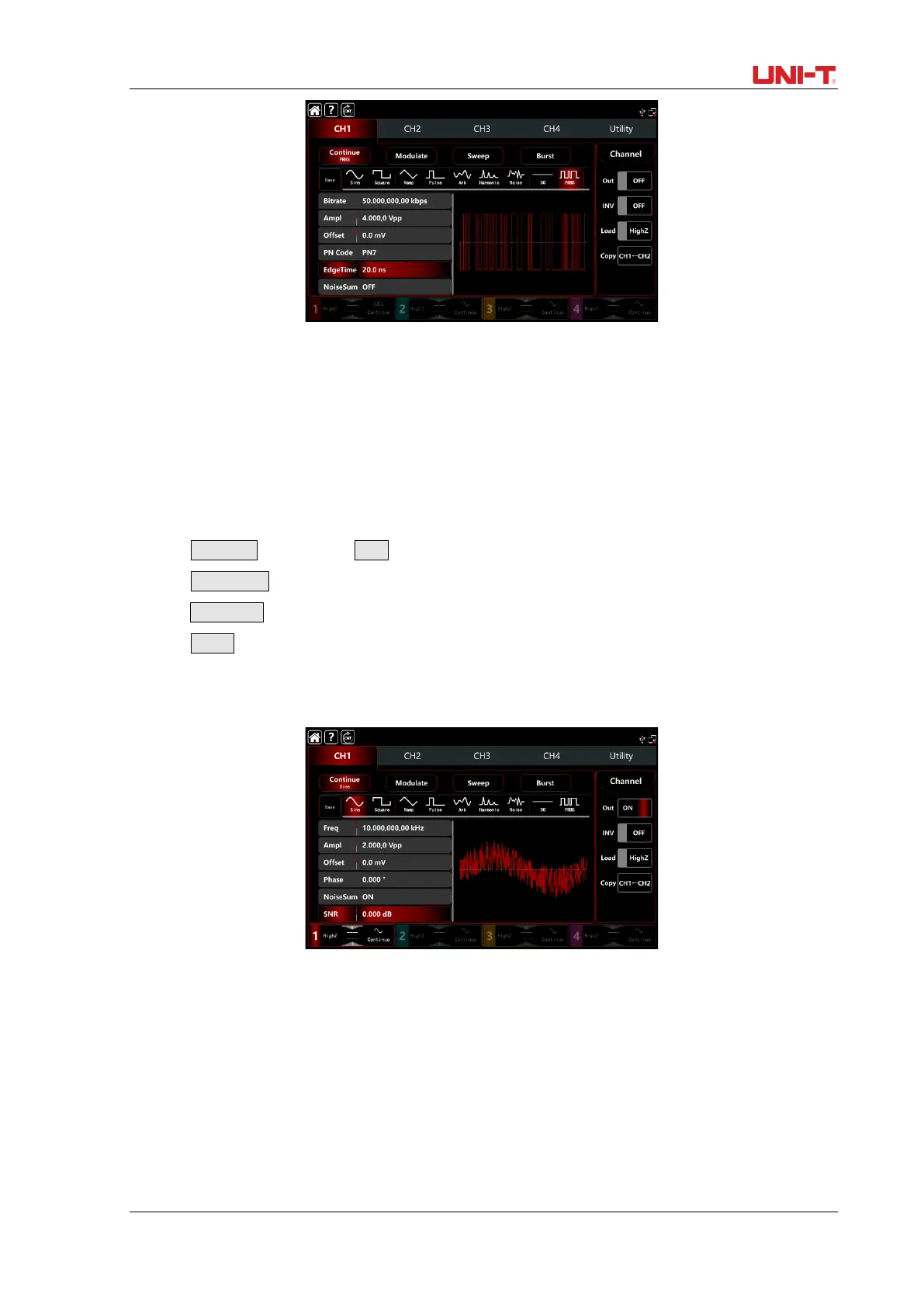

Figure 2-13 PRBS Wave Settings
2.3.11 Noise Superposition Settings
UTG9000T function/arbitrary waveform generator can add noise. The SNR is adjustable. The step
to set the sine wave of frequency 10kHz, amplitude 2Vpp, DC offset 0V, signal noise ratio 0dB:
1) Tap Continue tab to select Sine.
2) Tap Frequency tab, pop-out the virtual numeric keyboard to enter 10kHz.
3) Tap Amplitude tab, pop-out the virtual numeric keyboard to enter 2Vpp.
4) Tap Noise to turn on.
Note: Differen frequency and amplitude will effect the range of SNR. The default noise
superposition is 10dB.
Figure 2-14 Noise Superposition Settings
2.4 Secondary Function Settings
Utility can set the settings of the channel, channel coupling, frequency counter, digital protocol,
system and internet, detailed description as following,
