UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
117

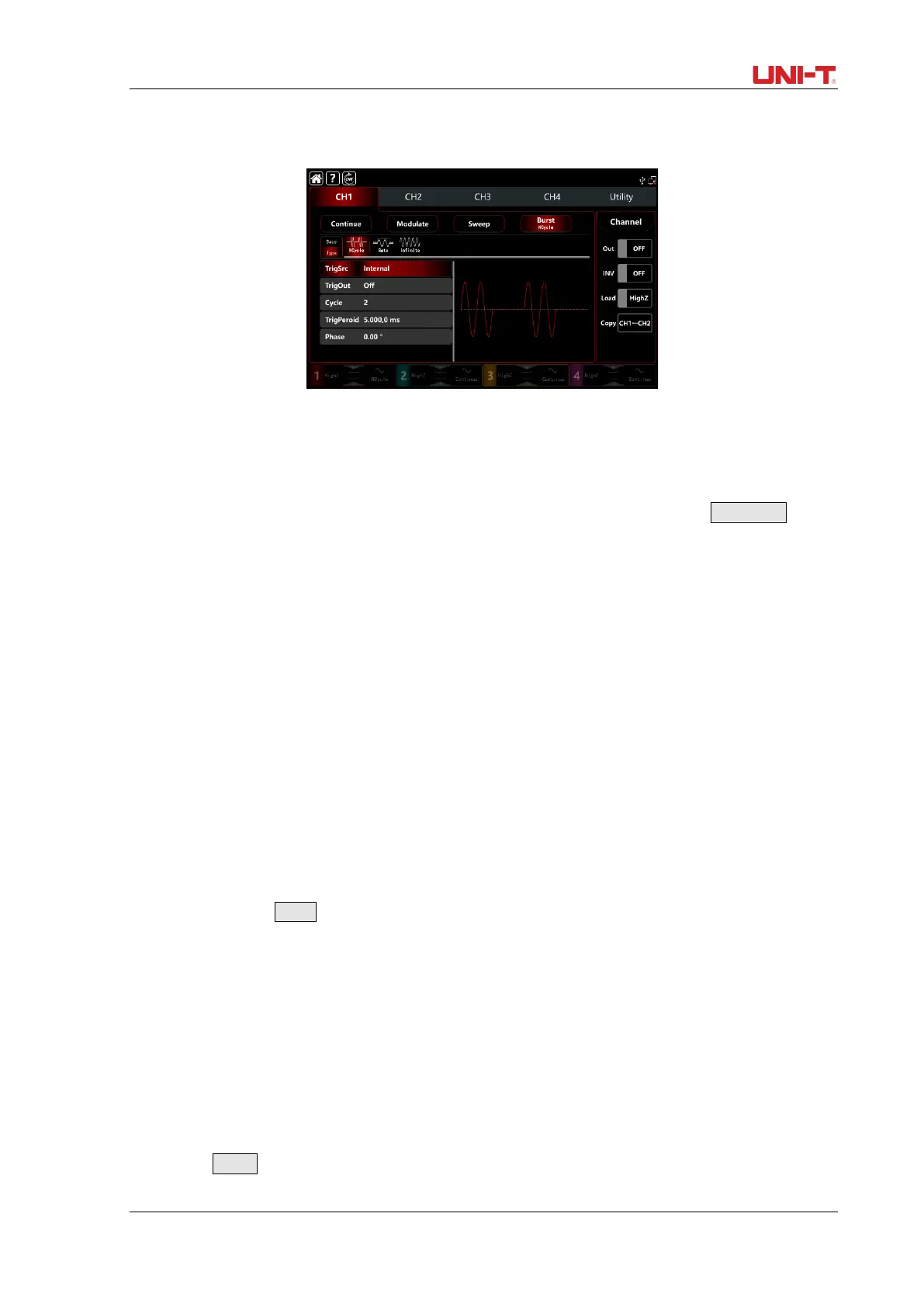

3.3.4 Burst Period
Burst period (period of pulse string) is only for N cycle mode, which is mean the time from one
pulse string to the next pulse string. When trigger source is external or manul, trigger period
will be hidden in parameter list. The range of burst period (period of pulse string) can set to
1μs~500s; the default range is is 5.000ms. Rotate multifunction knob or tap TrigPeriod tab to
pop-out visual numeric keyboard to enter values and select unit.
 Burst period (period of pulse string)≥waveform period×cycle number（number of pulse
string）At here, waveform period is the reciprocal of the waveform frequency which mentioned in
the Select Burst.
 If burst period (period of pulse string) is too short, the waveform generator will increase
the designated period to output a designated number of cycles.
3.3.5 Counting of Burst
In N cycle mode, pulse string counting is used to specify the number of waveform period. It is in
the range of 1~50000 periods and 2 by default. In N cycle mode, rotate multifunction knob, push
direction key or tap Cycle tab to pop-out visual numeric keyboard to enter values and select unit.
 Cycle number< Trigger period × Waveform frequency
 If cycle number exceeds the above limit,the waveform generator increase the pulse string
period to adapt the designated pulse string count automatically ( the waveform frequency won’t
change)
3.3.6 Select Trigger Source
The waveform generator will output a frequency sweep when receive a trigger signal and wait next trigger
source. The trigger source of frequency sweep can be internal, external and manual. Rotate multifunction
knob or tap TrigSrc to select the trigger source.
1) The waveform generator will continue output the designated frequency when in internal
