UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
113
key and CH1 tab bar backlight light on indicating that the channel 1 output is turned on.

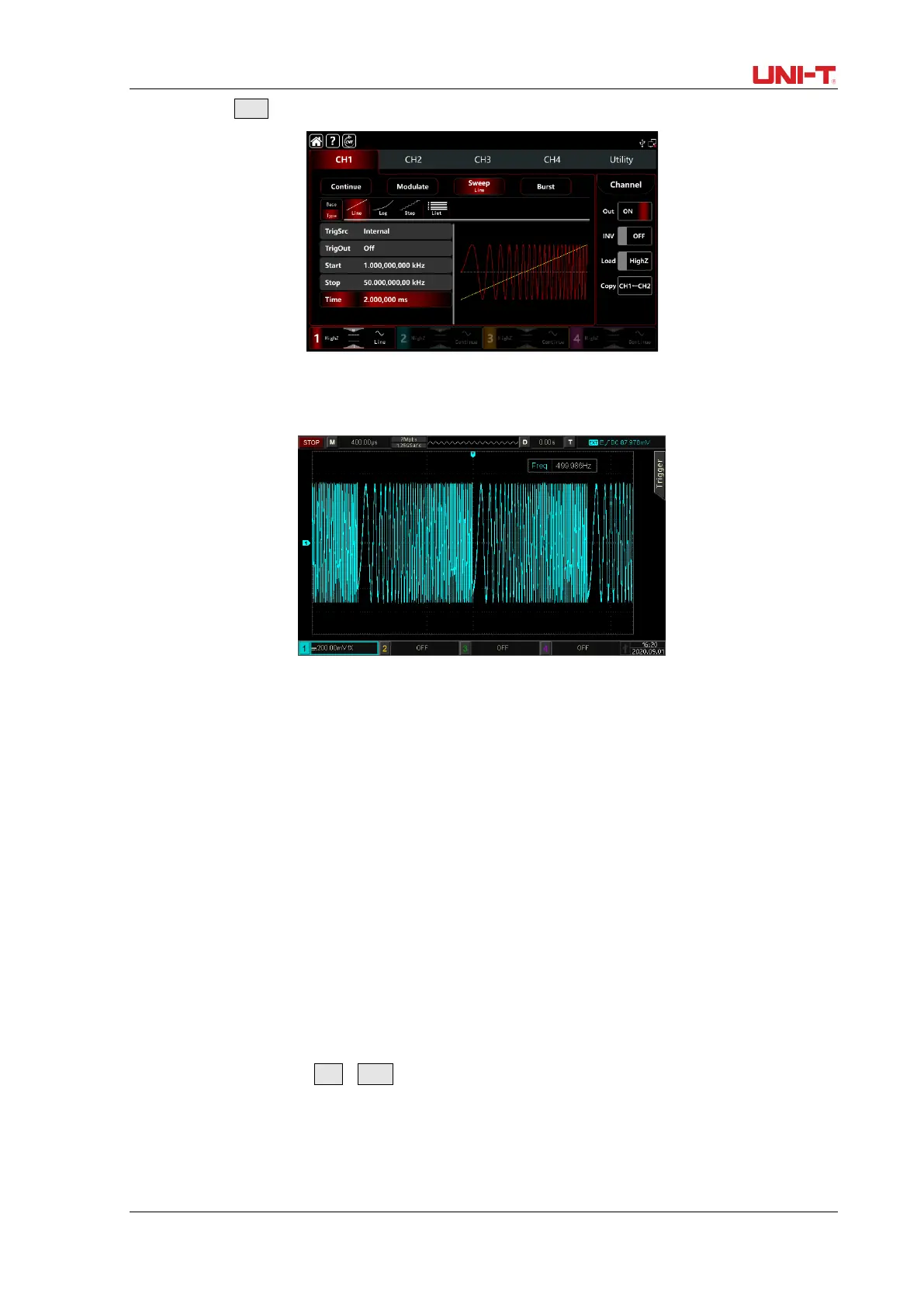

The shape of the frequency sweep waveform viewed through an oscilloscope is shown in the
figure below,
3.3 Output Burst Waveform
The waveform generator can output a designated cycle period wave (pulse string).It has three
trigger output mode: internal, external and manual. And offer N cycle, gating and infinite pulse
string. It can generate pulse train for sine wave, square wave, ramp wave, pulse wave, arbitrary
wave (except DC) and noise (only applicable to gating pulse train). The modulation modes for
each channel are independent, it can set the same or different modulation modes to each channel.
3.3.1 Select Burst
Turn on Burst mode: tap CH1→Burst accordingly, the instrument output the moduluated pulse string
waveform according to the current setting.
