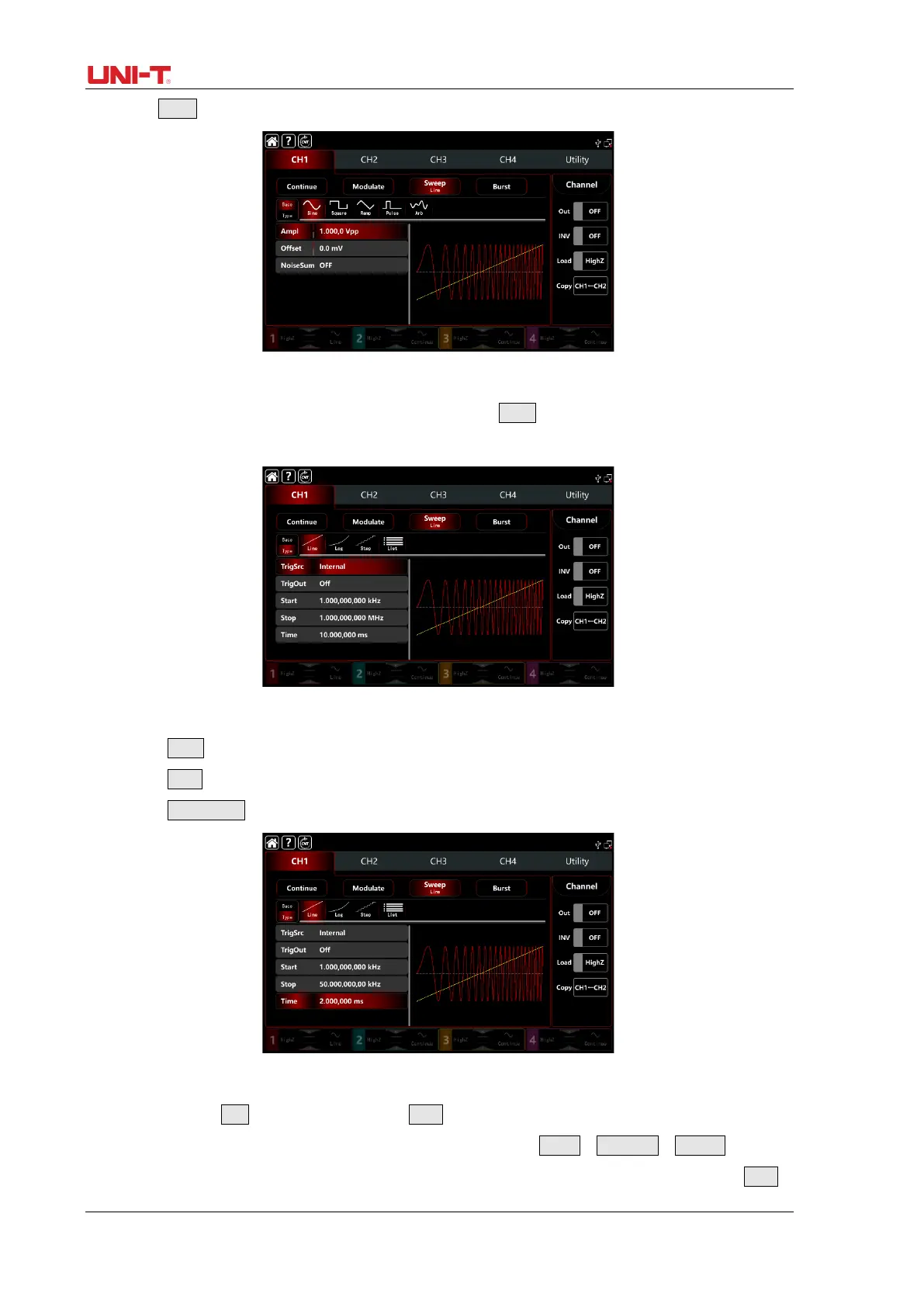

Ta p Ampl tab to pop-out visual numeric keyboard to enter 1Vpp.
2) Set the starting/stop frequency, frequency sweep time,trigger source and edge
After the parameter setting of the carrier wave, tap Type to return to sweep interface to set
the frequency sweep parameter.
Select Linear as the way of frequency sweep (default).
Tap Start tab to pop-out visual numeric keyboard to enter 1kHz.
Tap Stop tab to pop-out visual numeric keyboard to enter 50kHz.
Tap DwellTime tab to pop-out visual numeric keyboard to enter 2ms.
3) Turn on the output channel
Tap channel Out botton to ON or push CH1 key on the front panel to quick set the output
channel,and it can aslo turn on at the Utility interface,tap Utility→Channel→Output or
double-click the channel tab bar at the bottom of the screen to step through ON/OFF. CH1
