108

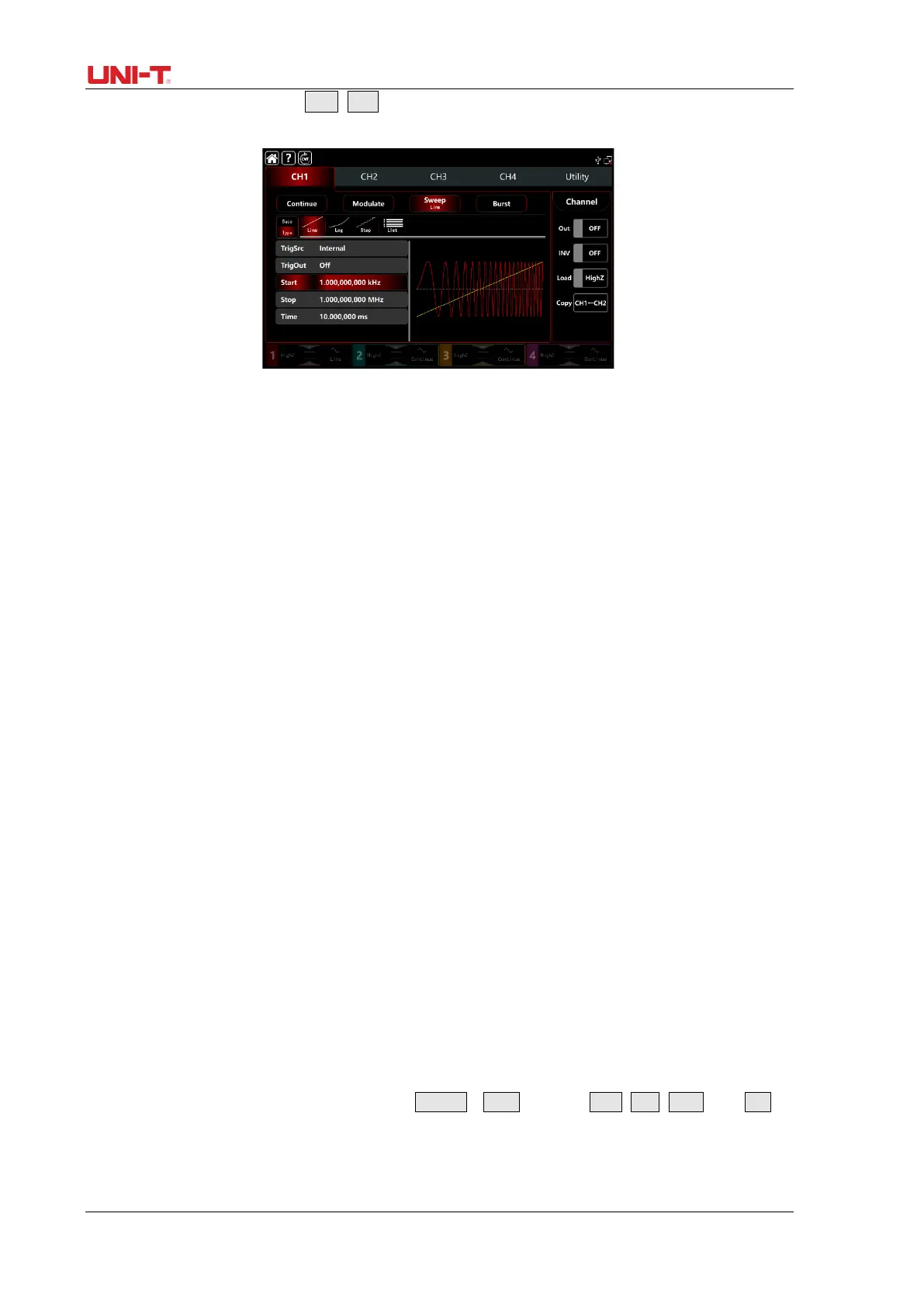

knob, push direction key or tap Start, Stop tab to pop-out visual numeric keyboard to enter values and
select unit in sweep modulation setting interface.
 When starting frequency < stop frequency, the function/arbitrary waveform generator
sweeps from low to high frequency.
 When starting frequency > stop frequency, the function/arbitrary waveform generator
sweeps from high to low frequency.
 When starting frequency = stop frequency，the function/arbitrary waveform generator
outputs a constant frequency.
 The synchronous signal of frequency sweep mode is low from starting point to midpoint
of frequency sweep time, and high from midpoint to end of frequency sweep time.
By default, starting frequency is 1kHz and stop frequency is 1Mz, but the range of starting
and stop frequency can vary with frequency sweep waveform. See the Table 4-1/4-2 Carrier
frequency settings of AM.
3.2.3 Frequency Sweep Mode
UTG9000T has four frequency sweep mode: linear, logarithm, stepping and list sweep
Linear frequency sweep: output frequency in a linear way
Logarithm frequency sweep: output frequency in a logarithm way
Stepping frequency sweep: output frequency in a stepping way
List frequency sweep: output frequency in a list way
Linear frequency sweep mode is default. Tap Sweep→Type to select Line, Log, Step, and List
mode.
