UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
107
3.2 Output Frequency Sweep Waveform
In frequency sweep mode, the funcyion/arbitrary waveform generator can output the frequency
from starting to stop by the mode of linear, logarithm, stepping and list sweep in designated sweep
time. Trigger source can be internal, external or manual it can generate frequency sweep output
for sine, square, sawtooth ramp and arbitrary wave (except DC). The modulation modes for each
channel are independent, it can set the same or different modulation modes to each channel.
3.2.1 Select Frequency Sweep

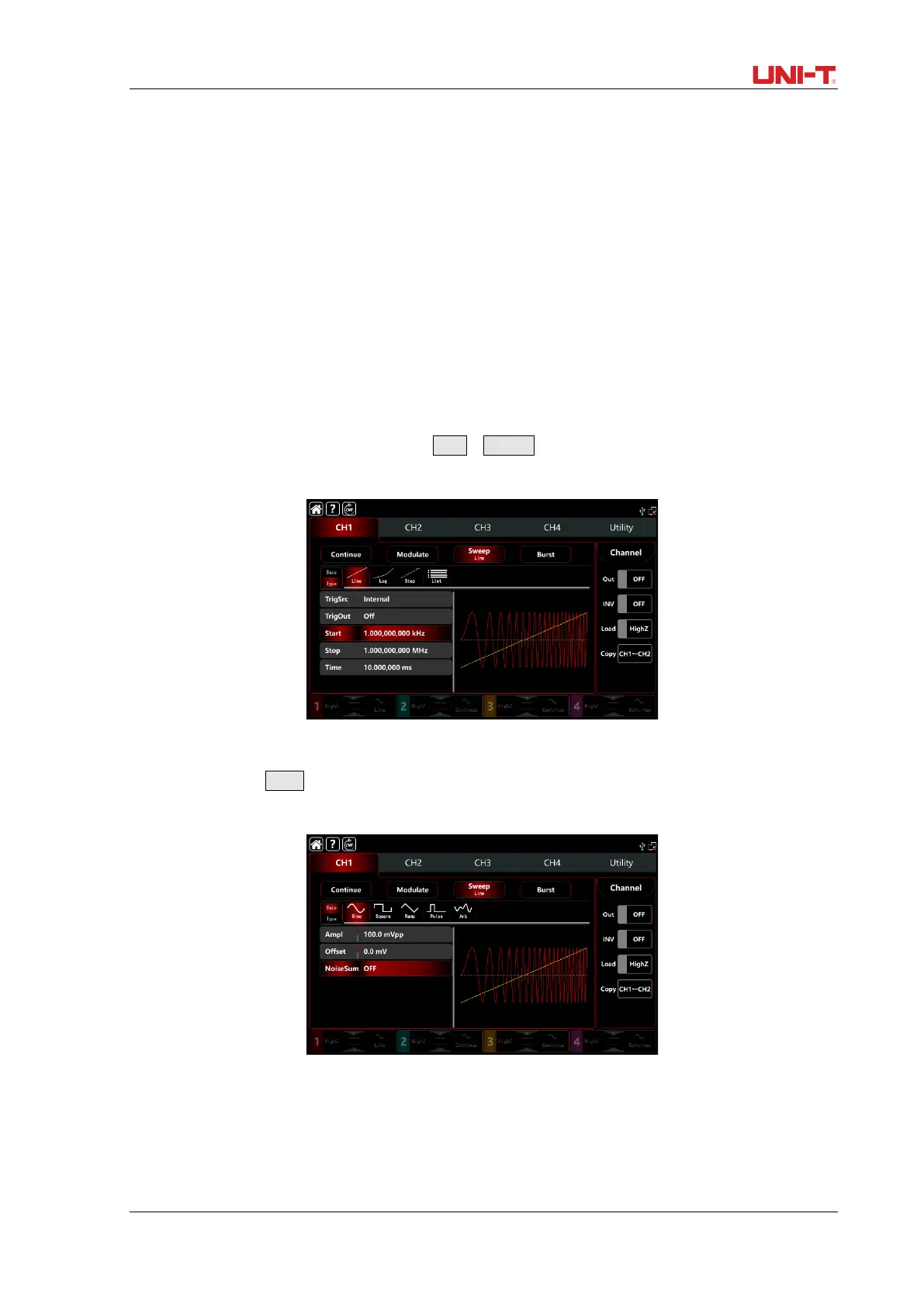

1) Turn on frequency sweep mode: tap CH1→Sweep accordingly, the instrument output the
current frequency sweep waveform.
2) Select the frequency sweep waveform
Tape Base tap Base to present the carrier waveform on the right side. See the interface figure
as below,
3.2.2 Starting and stop frequency settings
Starting and stop frequency are the upper limit and lower limit of frequency sweep.The function/arbitrary
waveform generator is always sweeps from starting frequency to stop frequency. Rotate multifunction

UNI-T UTG9000T Series Specifications
