UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
65

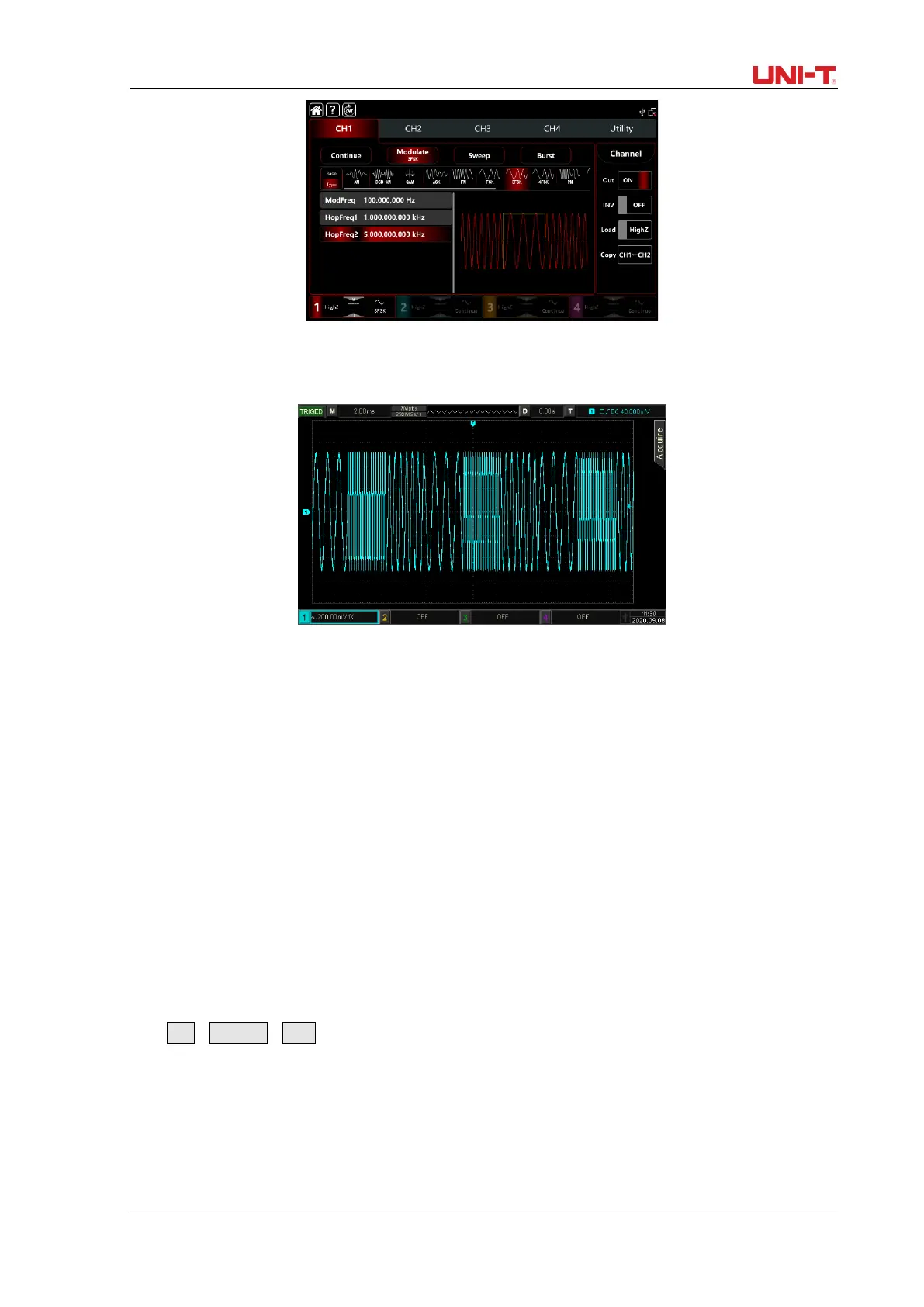

The shape of the 3FSK modulation waveform viewed through an oscilloscope is shown in the
figure below,
3.1.7 4FSK Modulation (Four Frequency Shift Keying)
In three frequency shift keying modulation mode, the function/arbitrary waveform generator can
move between among three preset frequencies (carrier frequency and three hopping frequency)
According to the logical level of the modulating signal to output the carrier frequency or hopping
frequency. The modulation modes for each channel are independent, it can set the same or
different modulation modes to each channel.
Select 4FSK modulation
Tap CH1→Modulat→4FSK to turn on 4FSK modulation, the instrument output the moduluation
waveform according to the current setting.
