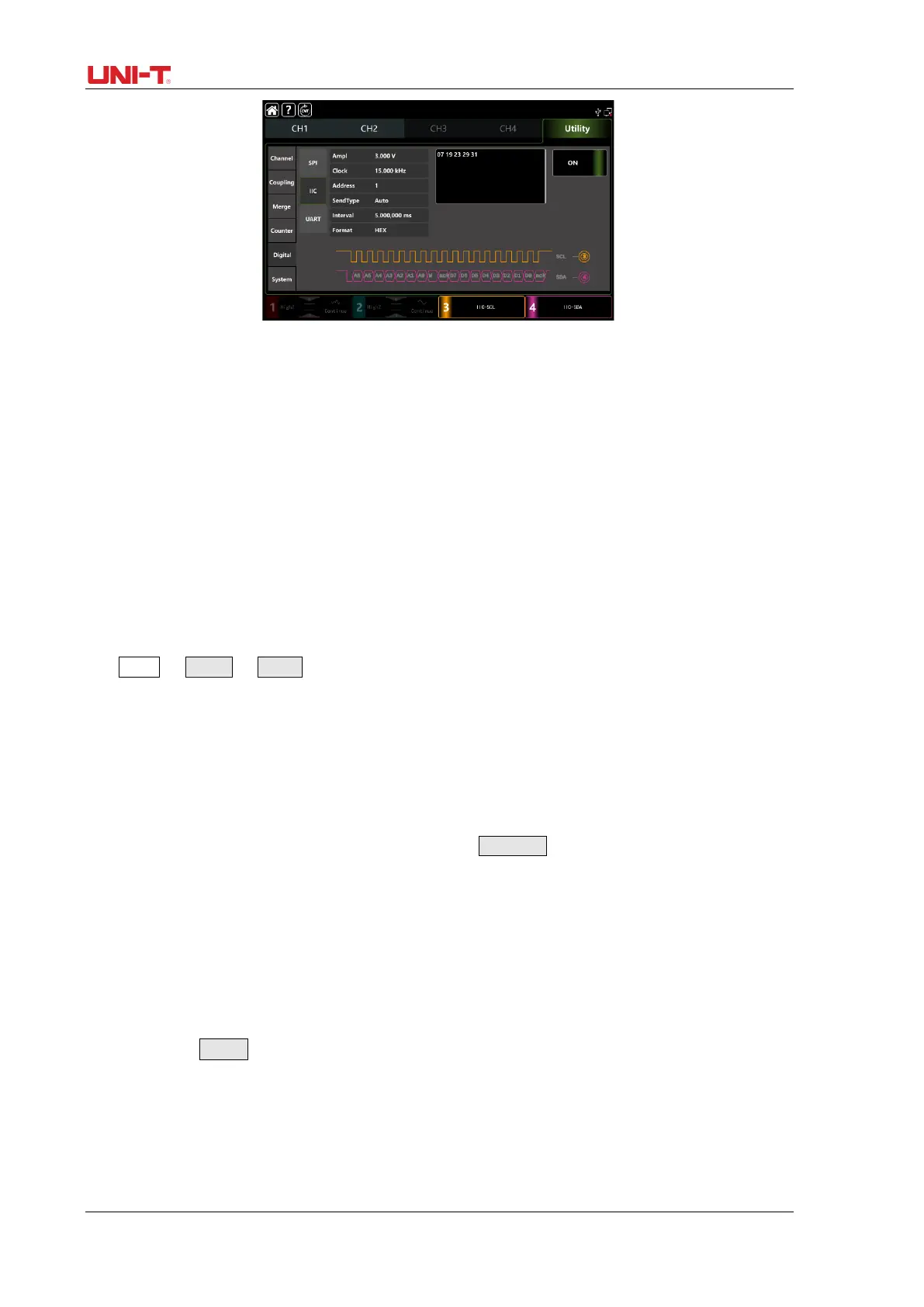

3.5.3 UART Protocol
The waveform generator can create configurable serial protocol signal parameters in UART
protocol mode.
Select UART mode
Tap Utility → Digital → UART accordingly, turn on UART mode to output the current UART
protocol signal.
Set baud rate
Baud rate can set by user’s need. In UART mode, tap Baudrate to pop-out visual numeric
keyboard to enter values and select unit. The baud rate range can set to 1-1000000.
Data format setting
The data format of UART can set by user’s need. It have two format types: hexadecimal and character.In
UART mode, tap Format to step through HEX and Char.
Set data
Tap blank input box on the right side to pop-out visual numeric keyboard to enter bits and tap return key
