UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
135
Set send type
Please refer to section 3.5.1 Set send type
Set interval time
If the send mode is auto, set the interval time of data send according to the actual condition. Tap Interval
to pop-out visual numeric keyboard to enter values and select unit. The interval time range can set to
20ns~1000s.
Comprehensive example
In IIC mode, set the output address to 10 bit, values is 65, clock 500kHz, select decimalism 17, 19,
29, 29, 31 as the data format, interval time 5ms, the setting steps as following,
1) Turn on IIC mode
Tap Utility → Digital → IIC accordingly.
2) Set data parameter
Tap Clock to pop-out visual numeric keyboard to enter 15kHz.
Tap Interval to pop-out visual numeric keyboard to enter 5ms.
Tap blank input box to enter 17, 19, 29, 29, 31.
3) Turn on output function

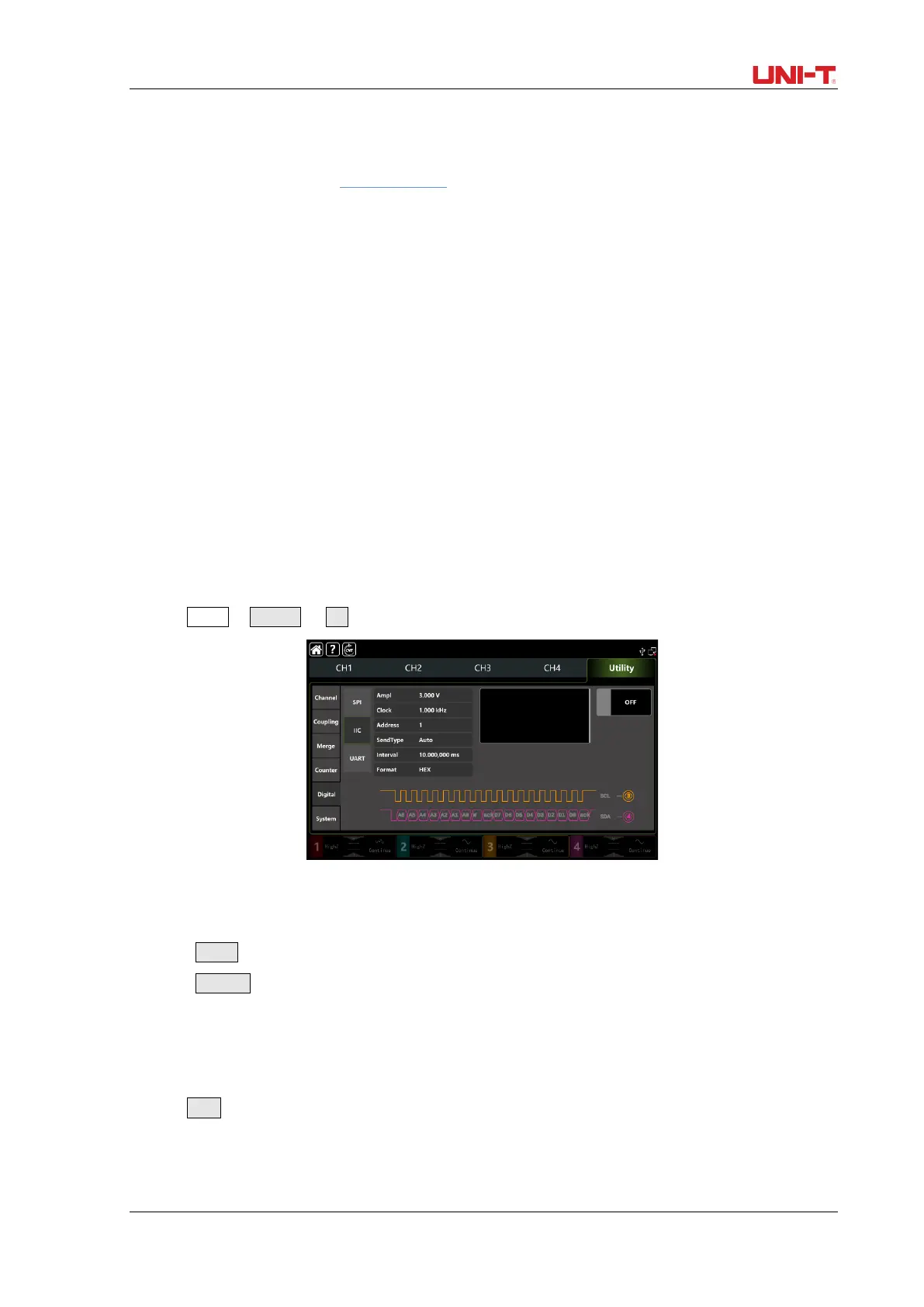

Tap OFF to turn on the output function, CH3 is IIC-SCL，CH4 is IIC-SDA. See the figure as
below.
