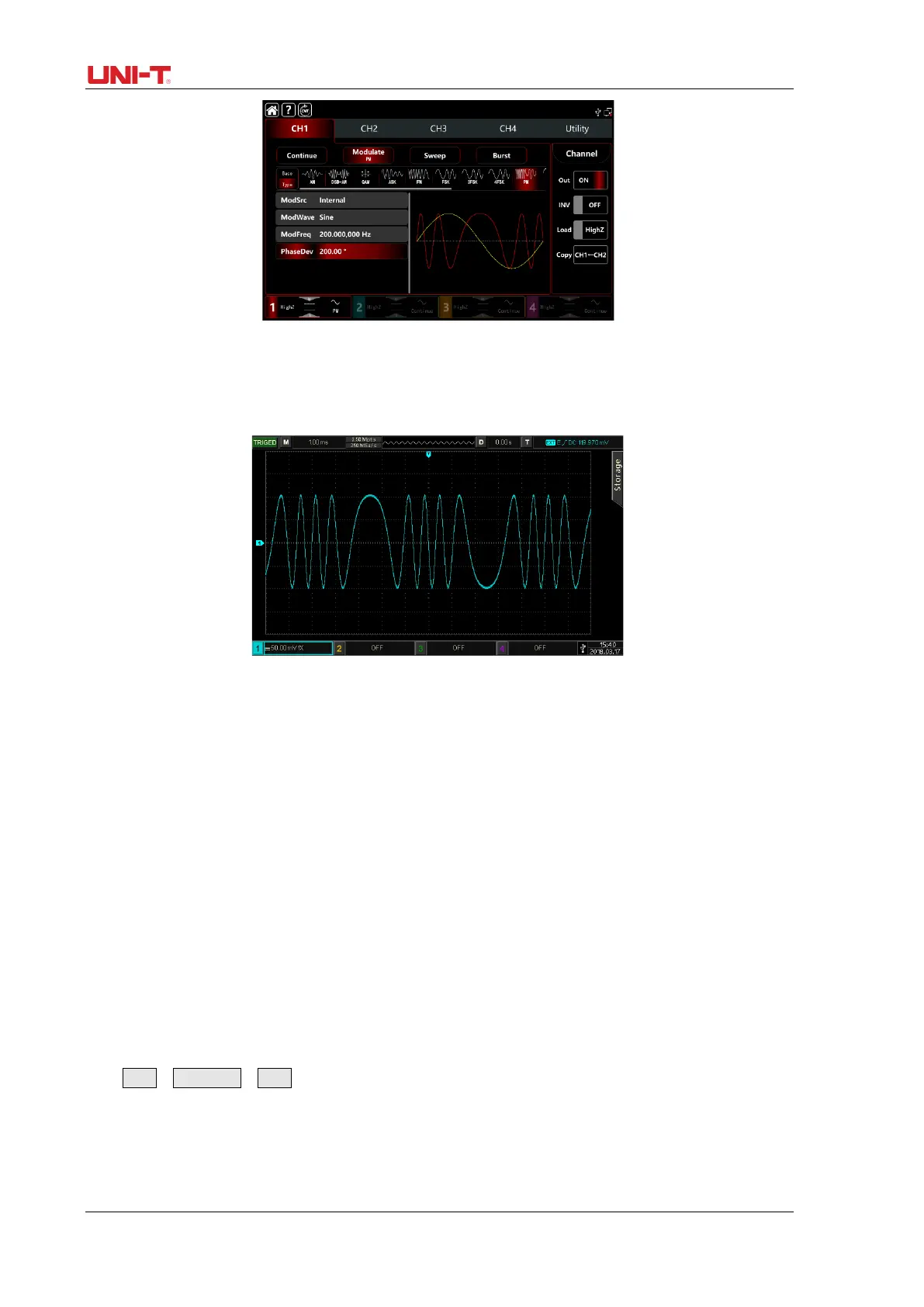

The shape of the PM modulation waveform viewed through an oscilloscope is shown in the figure
below,
3.1.4 ASK (Amplitude Shift Keying)
ASK is a digital amplitude modulation, it expresses digital signals “0”and “1”by changing the
amplitude of carrier signal. And according to the logical of modulation signal to output the carrier
signals with different amplitude. The modulation modes for each channel are independent, it can
set the same or different modulation modes to each channel.
Select ASK modulation
Tap CH1→Modulate→ASK to turn on ASK modulation, the instrument output the moduluated
waveform according to the current setting of the modulation wave frequency and the carrier wave.
