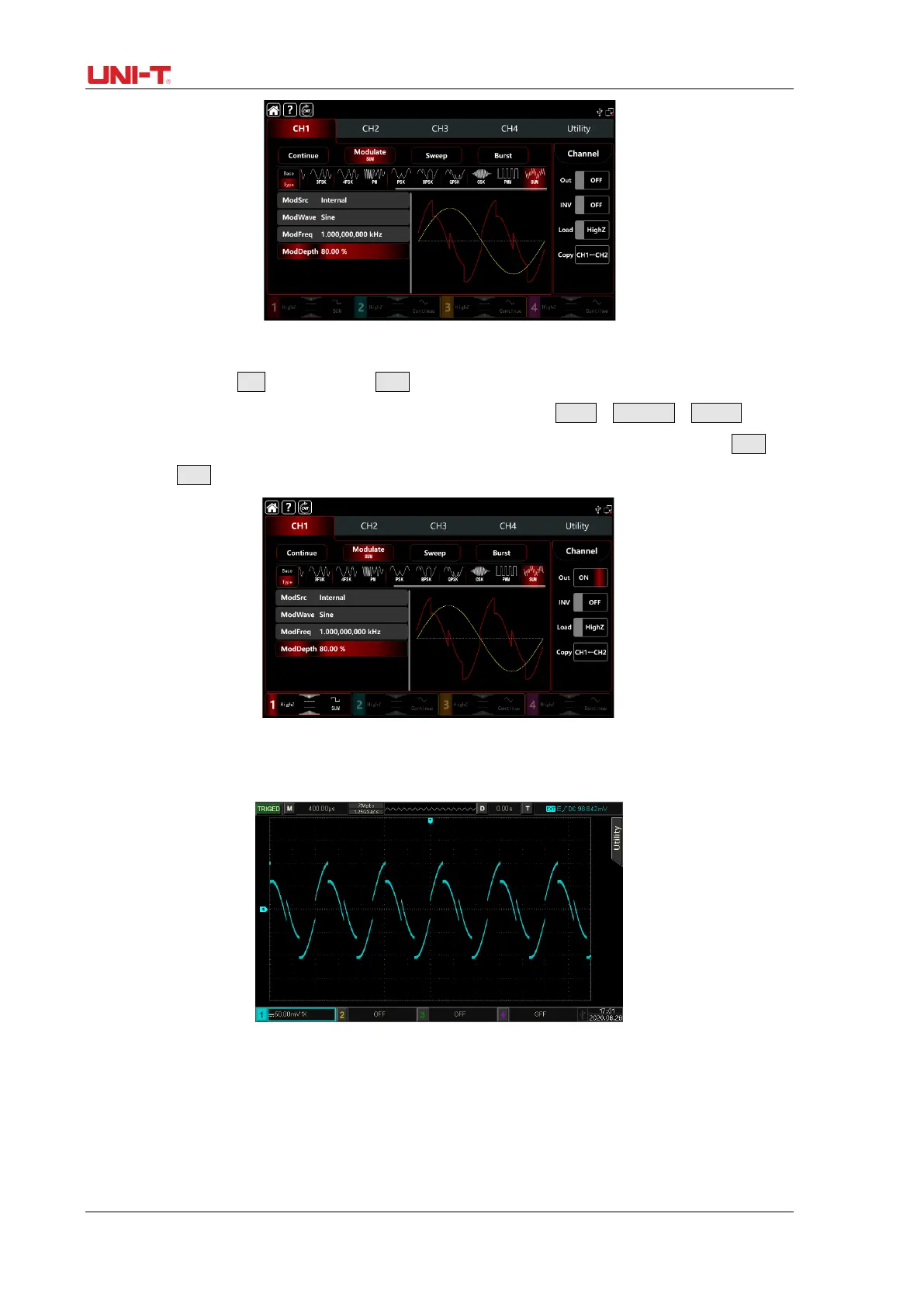

4) Turn on the output channel
Tap channel Out to ON or push CH1 on the front panel to quick set the output
channel,and it can aslo turn on at the Utility interface,tap Utility→Channel→Output or
double-click the channel tab at the bottom of the screen to step through ON/OFF. CH1
and CH1 tab backlight light on indicating that the channel 1 output is turned on.
The shape of the AM modulation waveform viewed through an oscilloscope is shown in the
figure below,
