UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
91

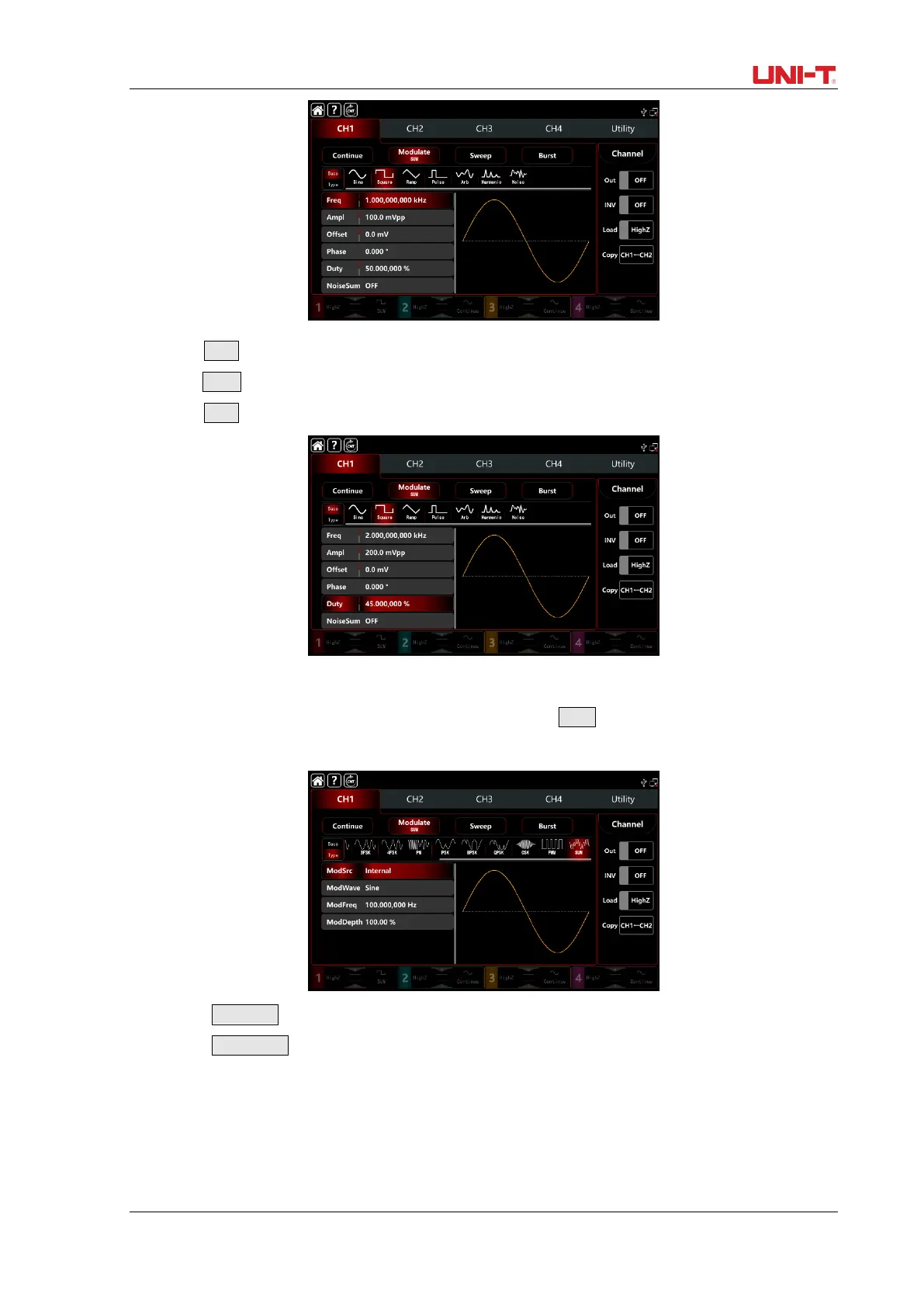

Tap Freq tab to pop-out visual numeric keyboard to enter 2kHz.
Tap Ampl tab to pop-out visual numeric keyboard to enter 200mVpp.
Tap Duty tab to pop-out visual numeric keyboard to enter 45%.
3） Set the modulation frequency and depth
After the parameter setting of the carrier wave, tap Type to return to SUM modulation
interface to set the frequency and depth.
Tap ModFreq tab to pop-out visual numeric keyboard to enter 1kHz.
Tap ModDepth tab to pop-out visual numeric keyboard to enter 80%.
