UTG9000T Series Function Abitrary Waveform Generator
133

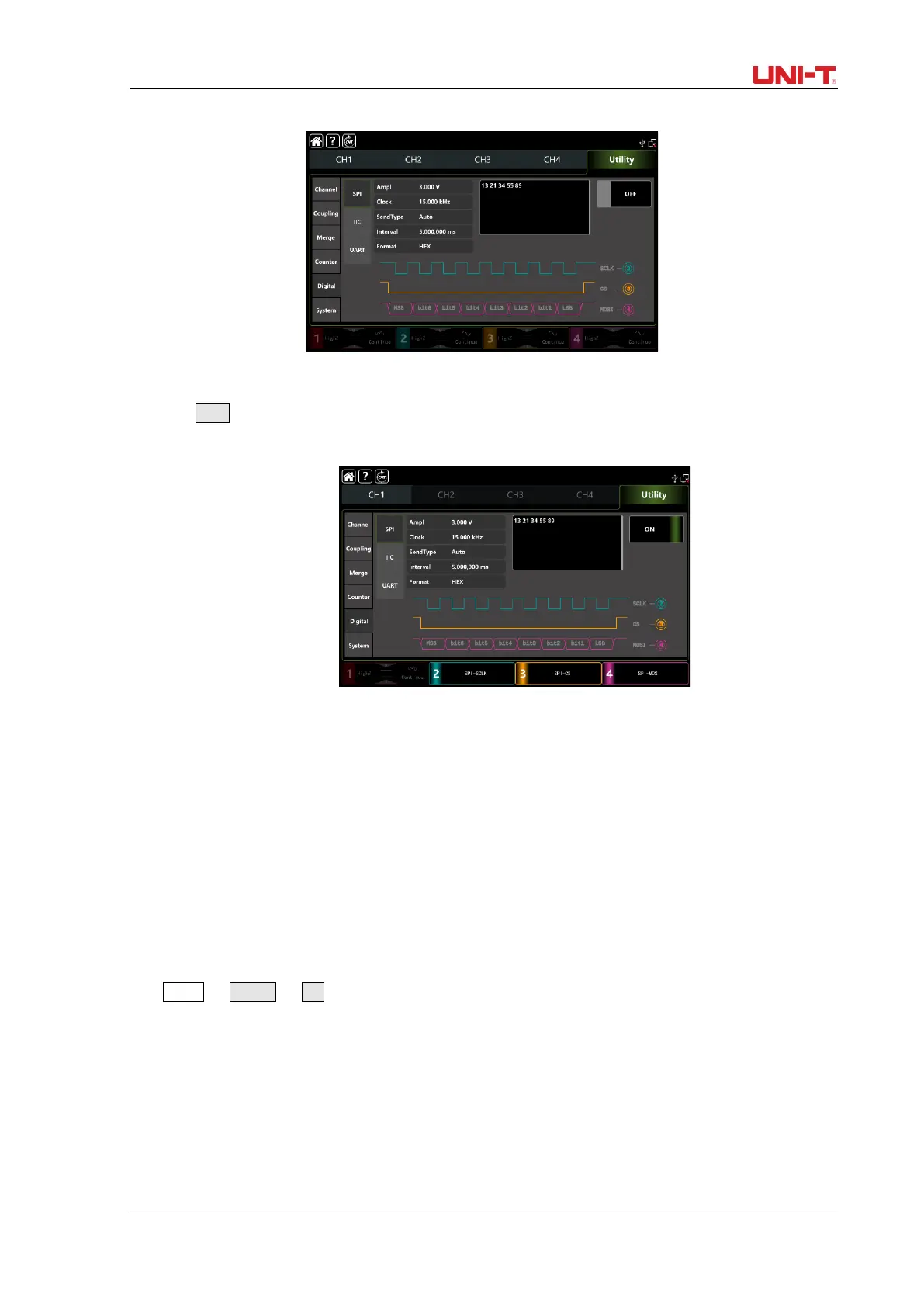

Tap blank input box to enter13, 21, 34, 55, 89.
3) Turn on output function
Tap OFF to turn on the output function, CH2 is SPI-SCLK, CH3 is SPI-CS, CH4 is SPI-MOSI.
See the figure as below.
3.5.2 IIC Protocol
The waveform generator can create configurable protocol signal parameters in IIC protocol mode.
Select IIC mode
Tap Utility → Digital → IIC accordingly, turn on IIC mode to output the current IIC protocol signal.
