UTG9000T Series Function Abitrary Waveform Generator
15
activate the function,
● amplitude > 4Vpp, input voltage > ±12.5V, frequency < 10kHz
● amplitude < 4Vpp, input voltage > ±5.0V, frequency < 10kHz
● Display screen will pop-out”Over-voltage protection, the output is closed.”
2.2.2 Back Panel

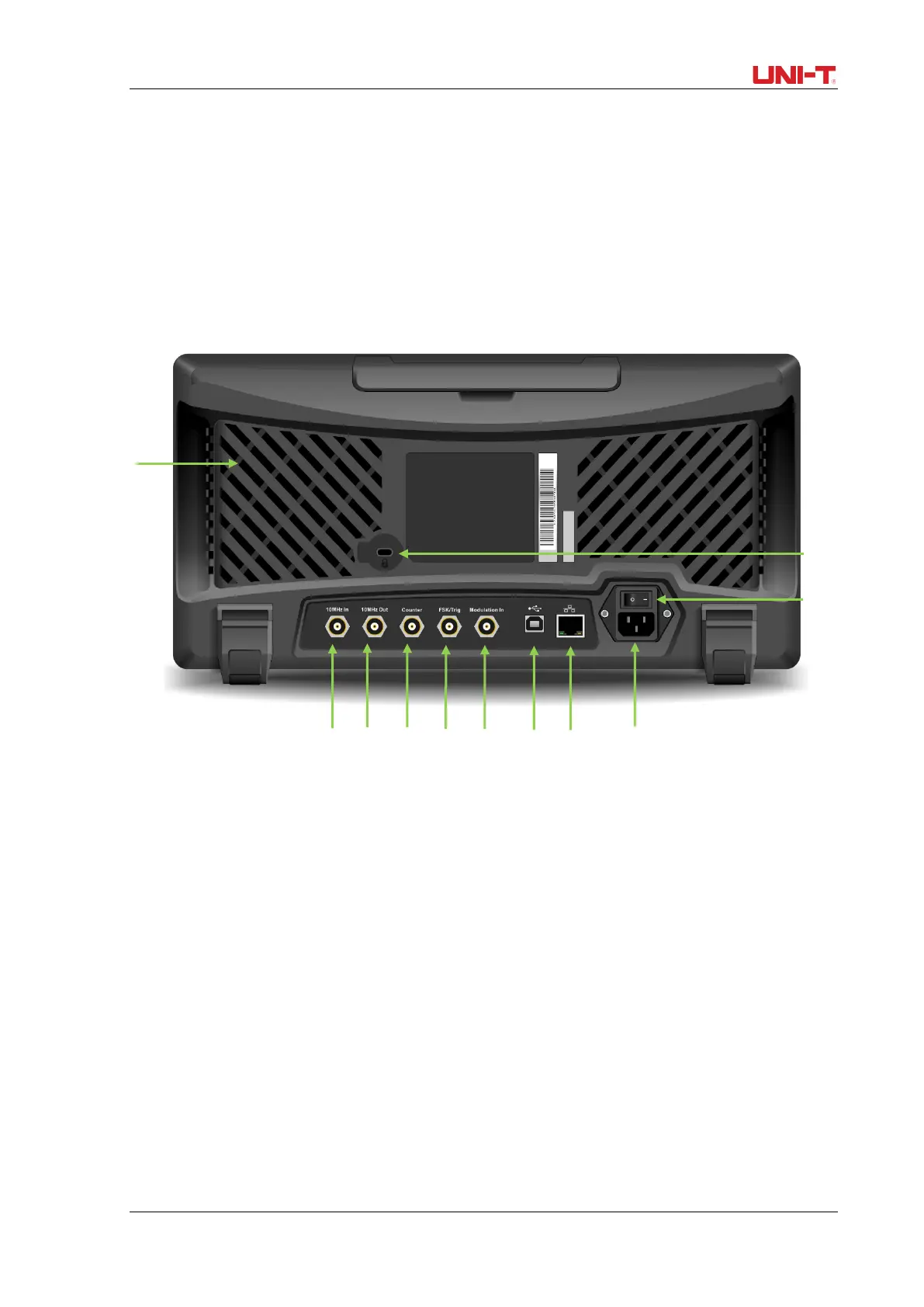

Figure 2-2 Back Front Structure
①．Heat Emission Hole
To make sure that the instrument in good heat emission status, don’t block off these holes.
②．Internal 10MHz output terminal
Establish synchronous or external clock signal with reference frequency of 10 MHz for multiple
function/arbitrary waveform generators. When clock source of the instrument is internal, internal
10MHz output terminal outputs an internal 10MHz clock signal.
③．External 10MHz intput terminal
Establish synchronization of multiple function/arbitrary waveform generators or synchronization
with external 10 MHz clock signal. When clock source of the instrument is external, external
10MHz input terminal receives an external 10MHz clock signal.
④. Frequency Counter Interface
