Tap channel Out to ON or push CH1 on the front panel to quick set the output channel,and it
can aslo turn on at the Utility interface,tap Utility→Channel→Output or double-click the
channel tab at the bottom of the screen to step through ON/OFF. CH1 and CH1 tab backlight
light on indicating that the channel 1 output is turned on.

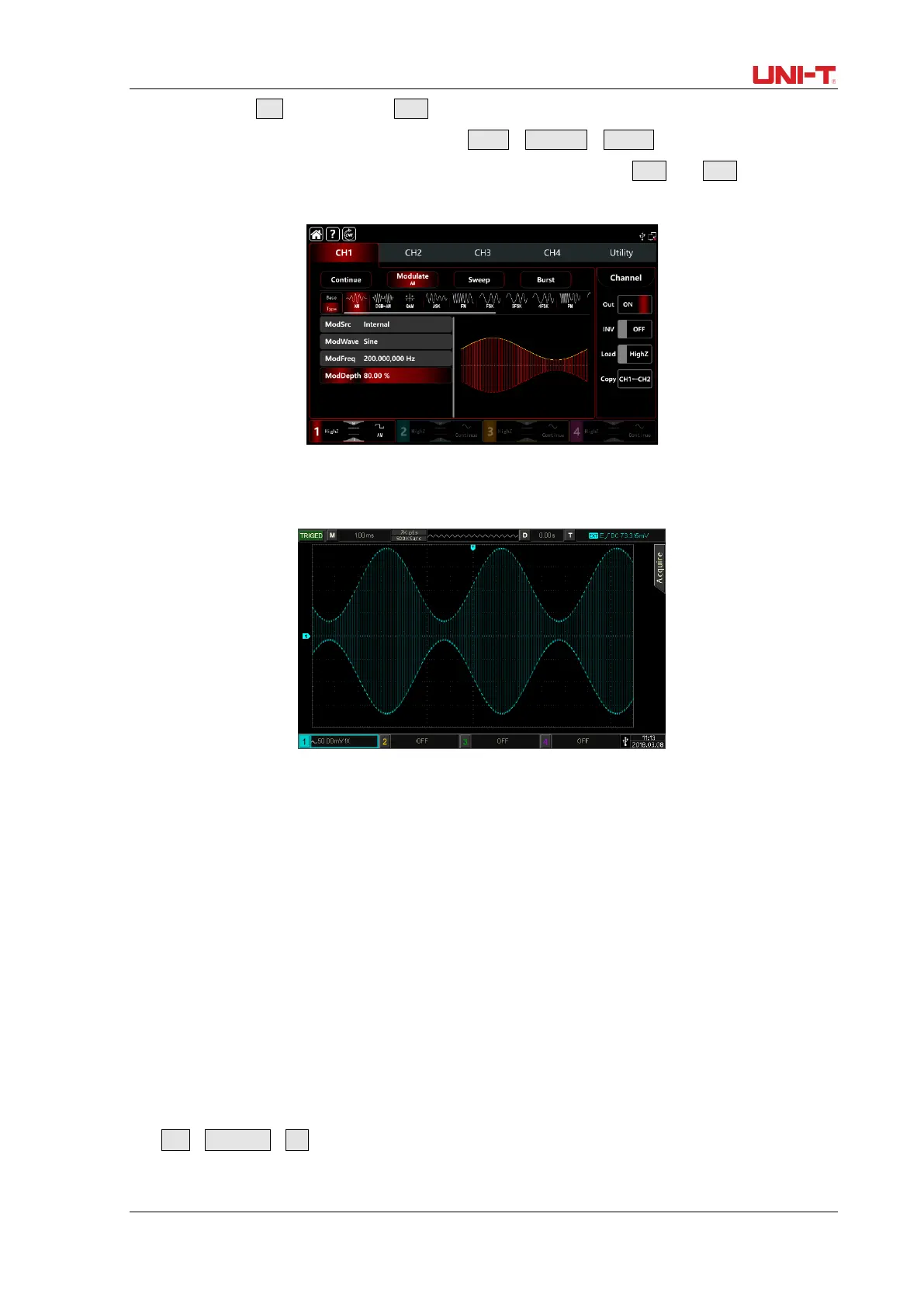

The shape of the AM modulation waveform viewed through an oscilloscope is shown in the
figure below,
3.1.2 FM (Frequency Modulation)
In frequence modulation mode, the modulated waveform is consist of the carrier wave and the
modulation wave. The carrier wave frequency changed by the modulation wave amplitude. The
modulation modes for each channel are independent, it can set the same or different modulation
modes to each channel.
Select FM modulation
Tap CH1→Modulate→FM to turn on FM modulation, the instrument output the moduluated waveform
according to the current setting of the modulation wave and the carrier wave.
