UTG9000T Series Function Abitrary Waveform Generator
74

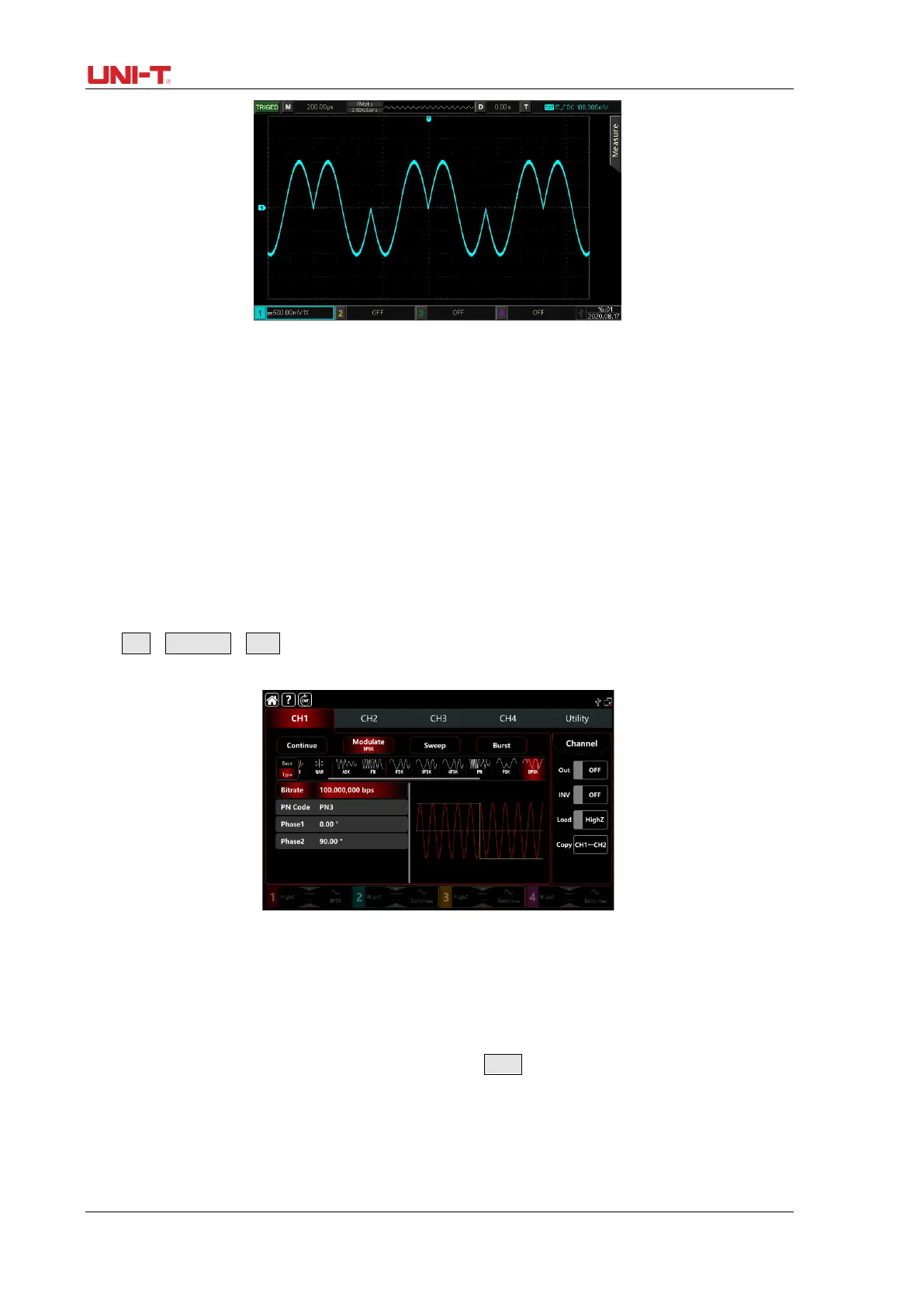

3.1.9 BPSK (Double Phase Shift Keying)
In BPSK modulation mode, the function/arbitrary waveform generator can move preset phase
between in the carrier phase and the modulating phase, to represent the information of 0 and 1.
The modulation modes for each channel are independent, it can set the same or different
modulation modes to each channel.
Select BPSK modulation
Tap CH1→Modulate→BPSK to turn on BPSK modulation, the instrument output the moduluated
waveform according to the current setting of the modulation wave and the carrier wave.
Select the carrier waveform
The carrier wave of BPSK: sine, square, ramp, pulse and arbitrarty wave (except DC), the default
option is sine wave. After select BPSK modulation, tap Base to present the carrier waveform on
the right side.
