UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
110
trigger output is also output by the external digital modulation terminal (FSK Trig connector).
This terminal can not be the external trigger input and internal trigger output at the same time.

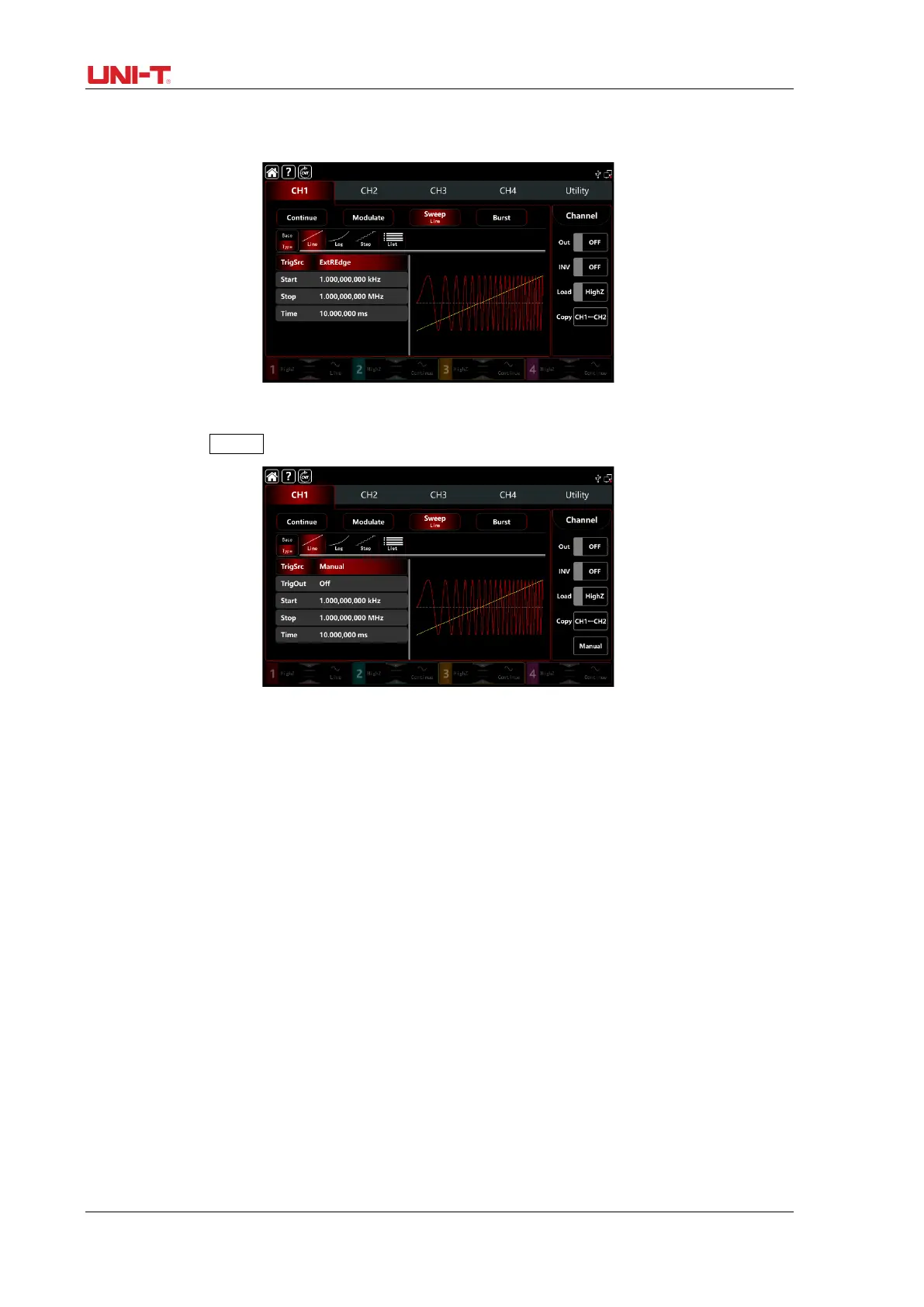

3) Manual tigger source present in the current channel setting interface on the right side of the
screen. Tap Manual to output a sweep frequency for each time.
3.2.6 Trigger Output
When trigger source is internal or manual, the trigger signal (square wave) can be output
through external digital modulation terminal（FSK Trig connector）, compatible with TTL level.
The default trigger output is OFF. Rotate multifunction knob or tap TrigOut to step through Close,
REdge and DEdge.
 Internal trigger source, the waveform generator outputs a square wave with duty ratio of 50%
from external digital modulation terminal (FSK Trig connector) when frequency sweep starts.
Trigger period depends on designated frequency sweep time.
 Manual trigger source, the waveform generator outputs a pulse wide than 1μs from external
digital modulation terminal (FSK Trig connector) when frequency sweep starts.
 External trigger source, trigger output will be hidden in parameter list. Because the trigger
output is also output by the external digital modulation terminal (FSK Trig connector). This
terminal can not be the external trigger input and internal trigger output at the same time.
