4) Turn on the output channel
Tap channel Out botton to ON or push CH1 key on the front panel to quick set the output
channel,and it can aslo turn on at the Utility interface,tap Utility→Channel→Output or
double-click the channel tab bar at the bottom of the screen to step through ON/OFF. CH1
key and CH1 tab bar backlight light on indicating that the channel 1 output is turned on.

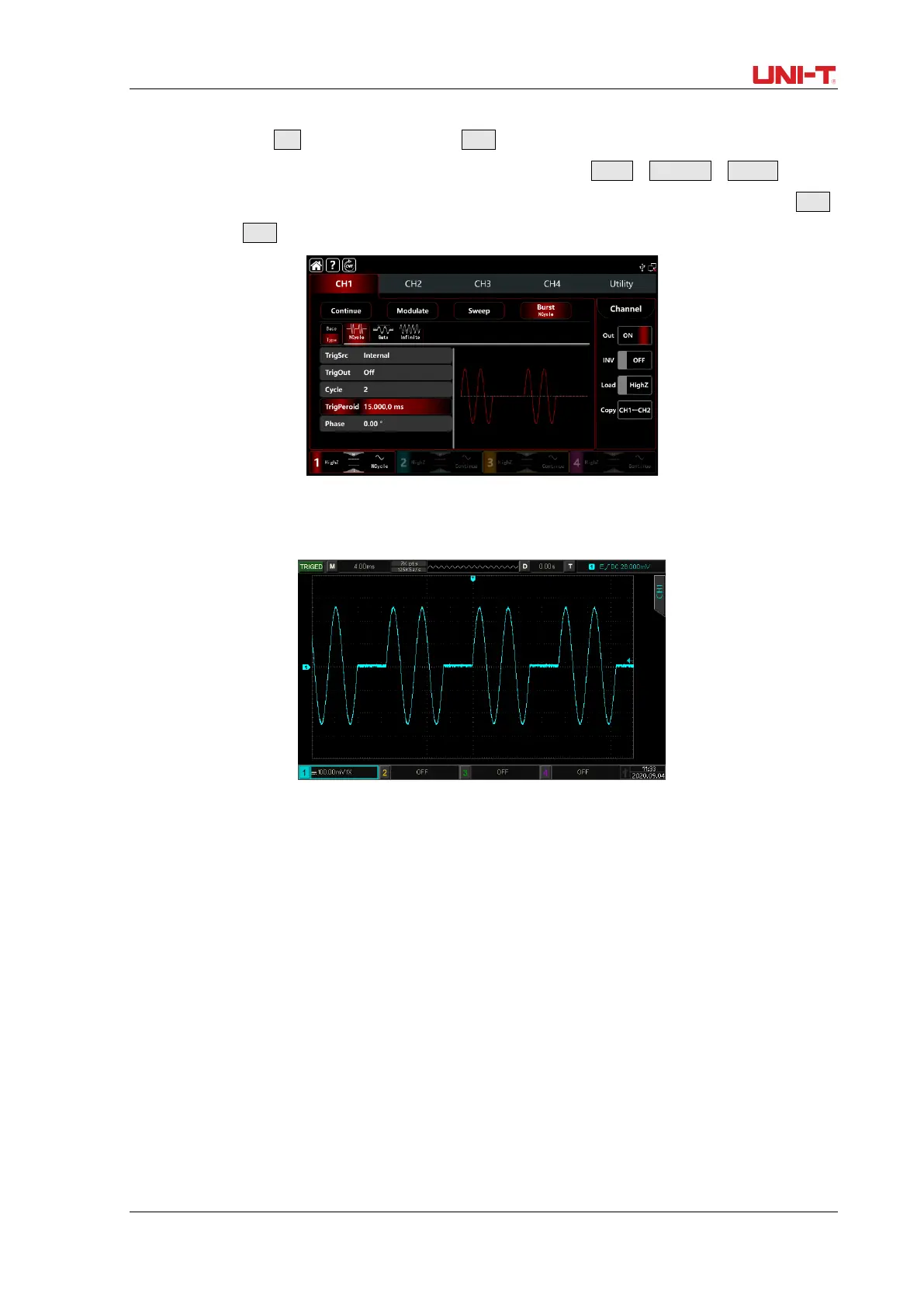

The shape of the burst waveform viewed through an oscilloscope is shown in the figure
below,
3.4 Output Abitrary Waveform
UTG9000T hs store more than 200 standard waveform types in non-volatile memory. See Table
4-4 (Built-in Arbitrary Waveform). The instrument can creat and edit arbitrary waveform by USB
interface to read arbitrary data file on the front panel.
