UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
61

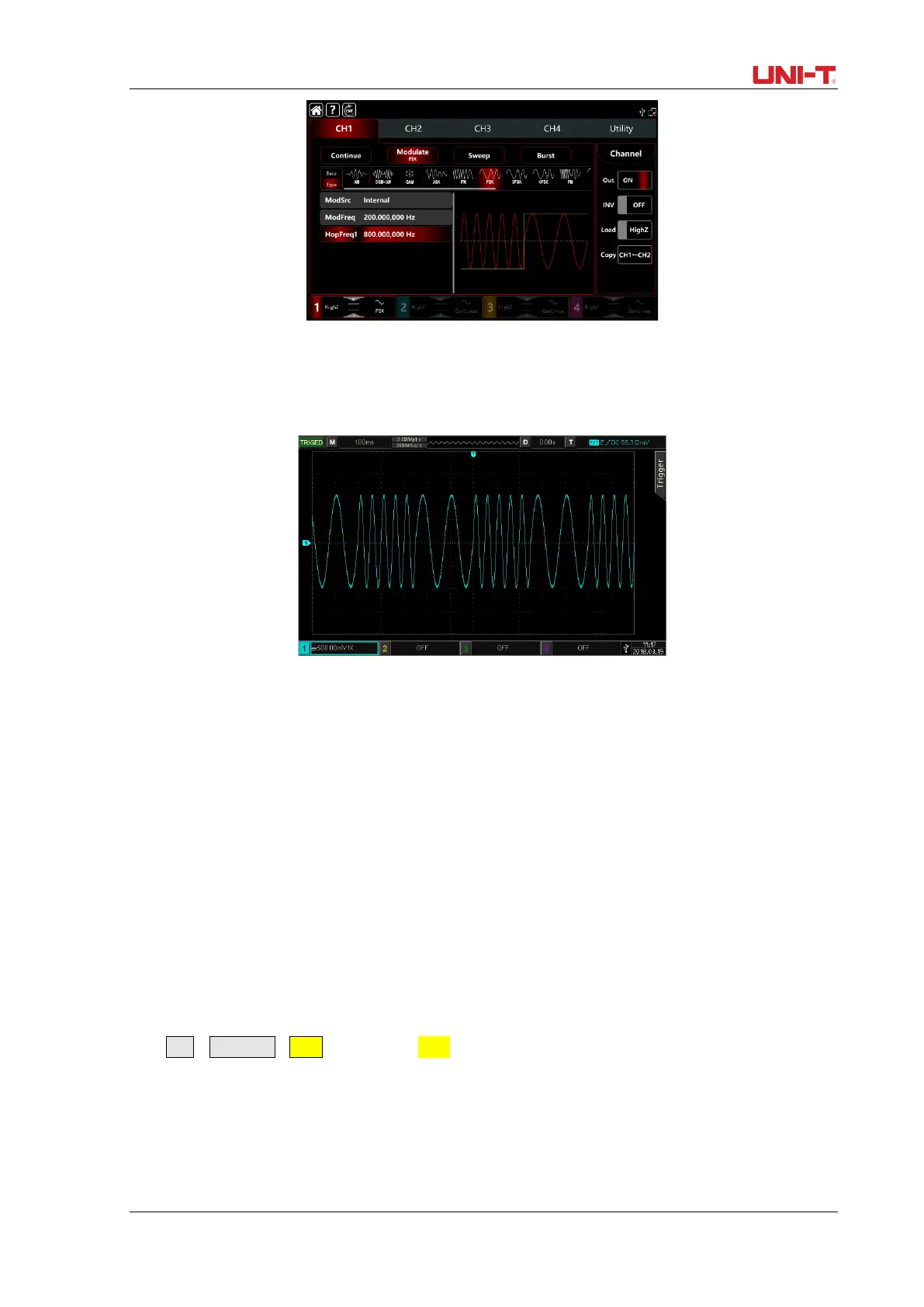

The shape of the FSK modulation waveform viewed through an oscilloscope is shown in the figure
below,
3.1.6 3FSK Modulation (Three Frequency Shift Keying)
In three frequency shift keying modulation mode, the function/arbitrary waveform generator can
move between among three preset frequencies (carrier frequency and two hopping frequency)
According to the logical level of the modulating signal to output the carrier frequency or hopping
frequency. The modulation modes for each channel are independent, it can set the same or
different modulation modes to each channel.
Select 3FSK modulation
Tap CH1→Modulate→3FSK to turn on 3FSK modulation, the instrument output the moduluation
waveform according to the current setting.
