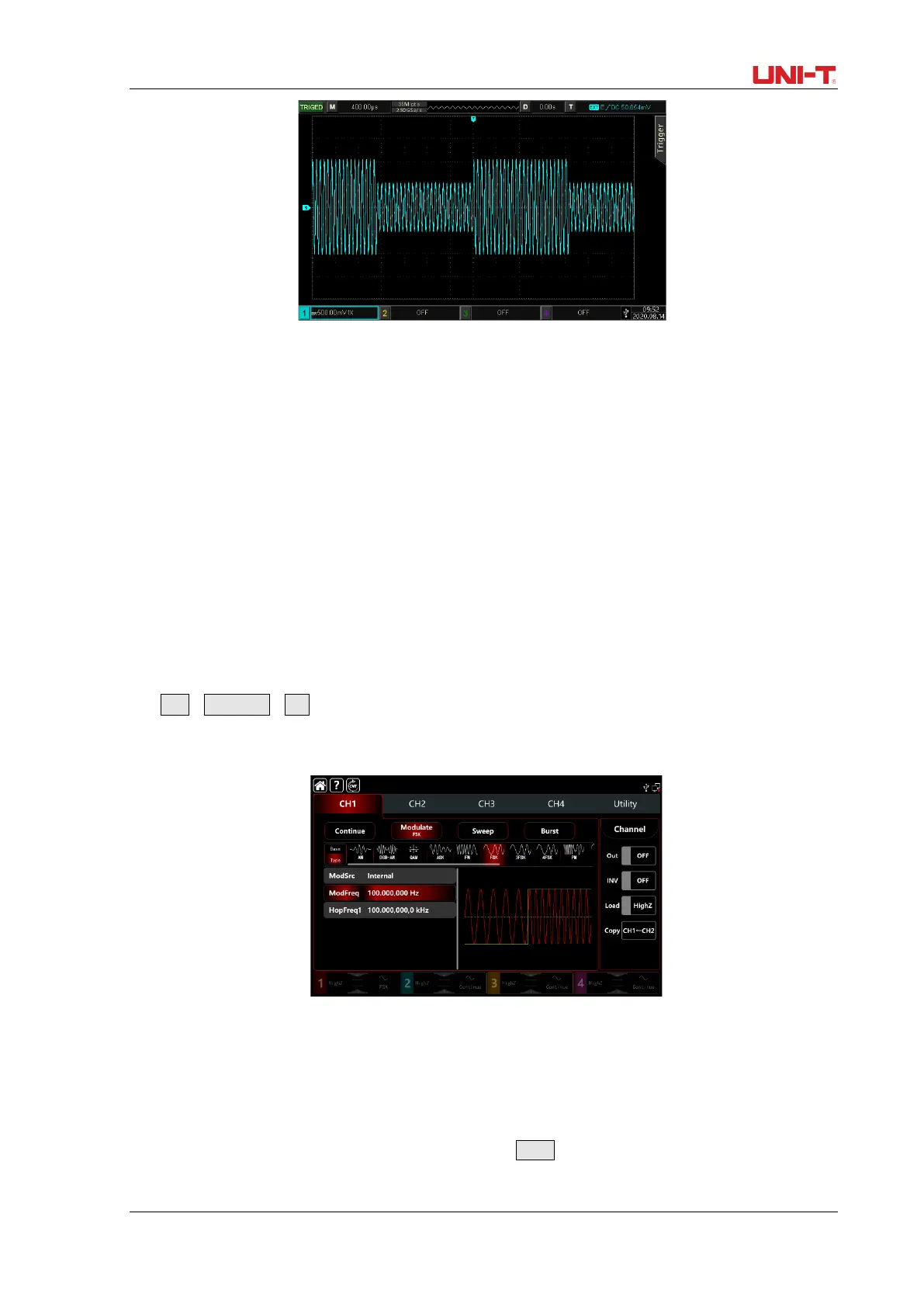

3.1.5 FSK (Frequency Shift Keying)
In FSK modulation mode, the function/arbitrary waveform generator can move between in two
preset frequencies (carrier frequency and hopping frequency) According to the logical level of the
modulating signal to output the carrier frequency or hopping frequency. The modulation modes for
each channel are independent, it can set the same or different modulation modes to each channel.
Select FSK modulation
Tap CH1→Modulate→FSK to turn on FSK modulation, the instrument output the moduluation waveform
according to the current setting.
Select the carrier waveform
The carrier wave of FSK: sine, square, ramp, pulse and arbitrarty wave (except DC), the default
option is sine wave. After select FSK modulation, tap Base to present the carrier waveform on the
right side.
