3.4.1 Turn on arbitrary waveform mode
Turn on Burst mode: tap CH1→Abitrary accordingly, the instrument output the moduluated
arbitrary waveform according to the current setting.
3.4.2 Point by point output/ DDS mode
UTG9000T supports point by point and DDS mode. In point by point mode, the waveform generator
automatically calculates frequency of output signal（4577.64Hz）according to waveform length (e.g.
65.536k points) and sampling rate. The waveform generator outputs waveform points one by one with
this frequency. It can prevent loss of important waveform point. In DDS default mode, the waveform
generator output arbitrary waveform by automatic interpolation or select point as fixed length (8.192
points) and the frequency of parameter list. Rotate multifunction knob or tap Mode tab to step through

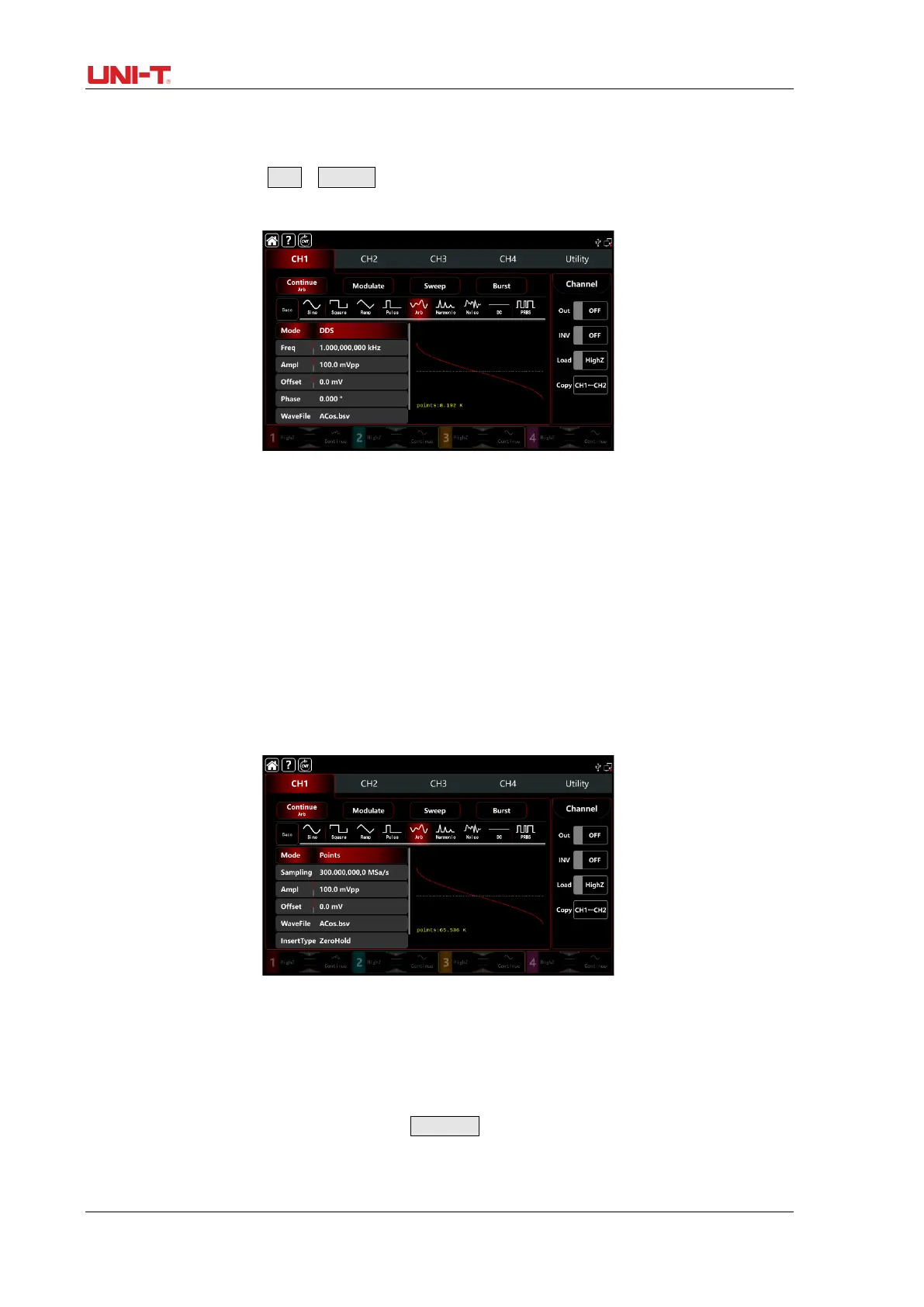

DDS and Points. Point by point interface figure as below.
3.4.3 Select Abitrary Waveform
UTG9000T can select arbitrary waveform from internal or external memory storage. Rotate
multifunction knob, push direction key or tap WaveFile to enter select it. See the figure as below,
