UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
119
output (internal trigger or manual trigger source), rising edge represents the rising edge output
trigger signal; falling edge represents the falling edge output trigger singal, and the default is rising
edge.

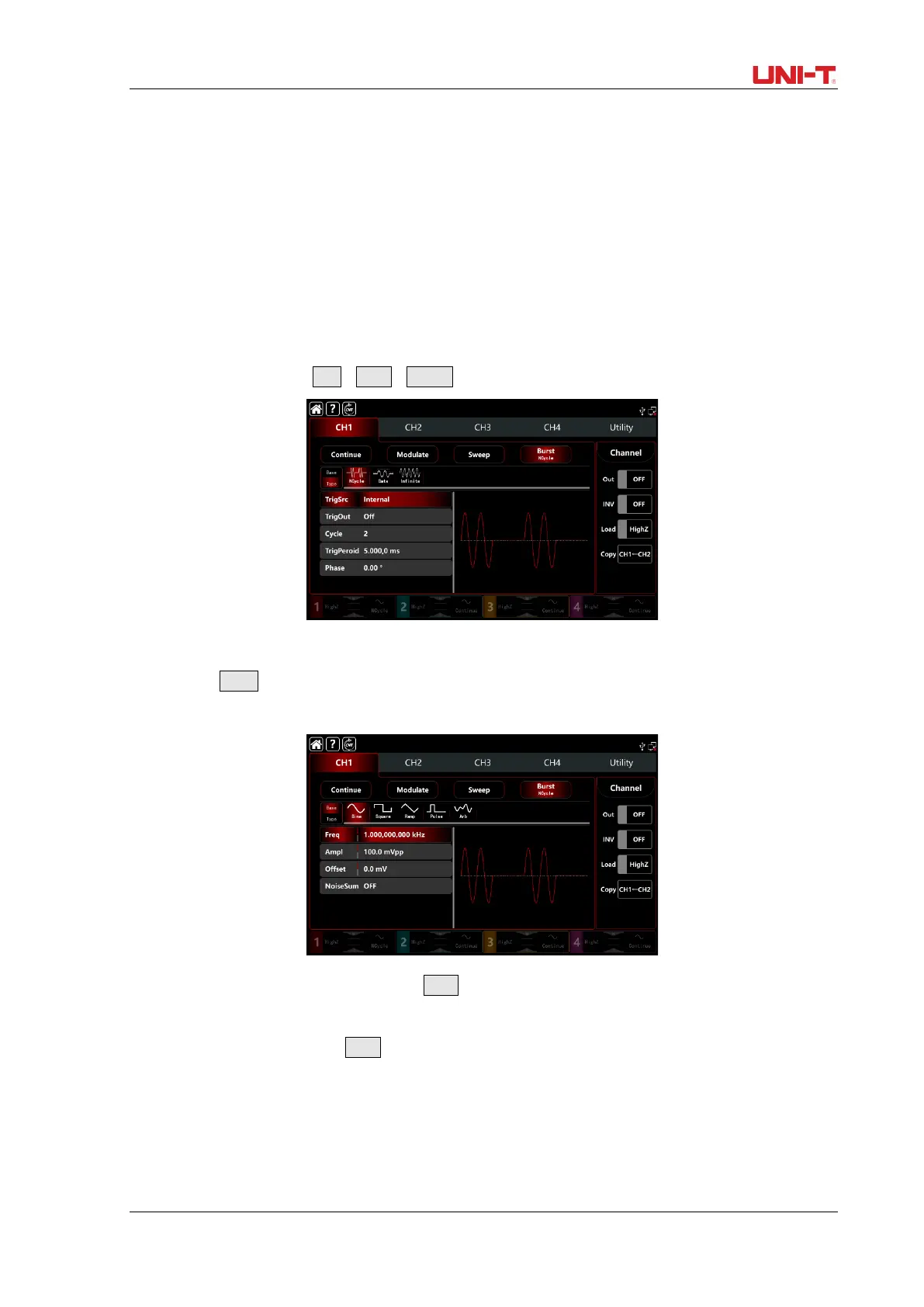

3.3.9 Comprehensive example
In burst mode, set a sine wave with period 5ms, amplitude 500mVpp as pulse string wave, burst
mode set to N cycle, pulse string period 15ms, cycle number 2, the settings steps as following,
1) Turn on burst mode: tap CH1→Burst→NCycle accordingly.
2) Select burst waveform
Tap Base o select sine wave as the carrier waveform (the default option is sine), so this
step has no change.
Note: If the setting interface display Freq, this means it can only change the frequency
parameter, it can’t switch to period. 2ms period is corresponding to 500Hz and their recripocal
relationship is T=1/f. Tap Freq to step through frequency and period.
