UTG9000T Series Function Abitrary Waveform Generator
73

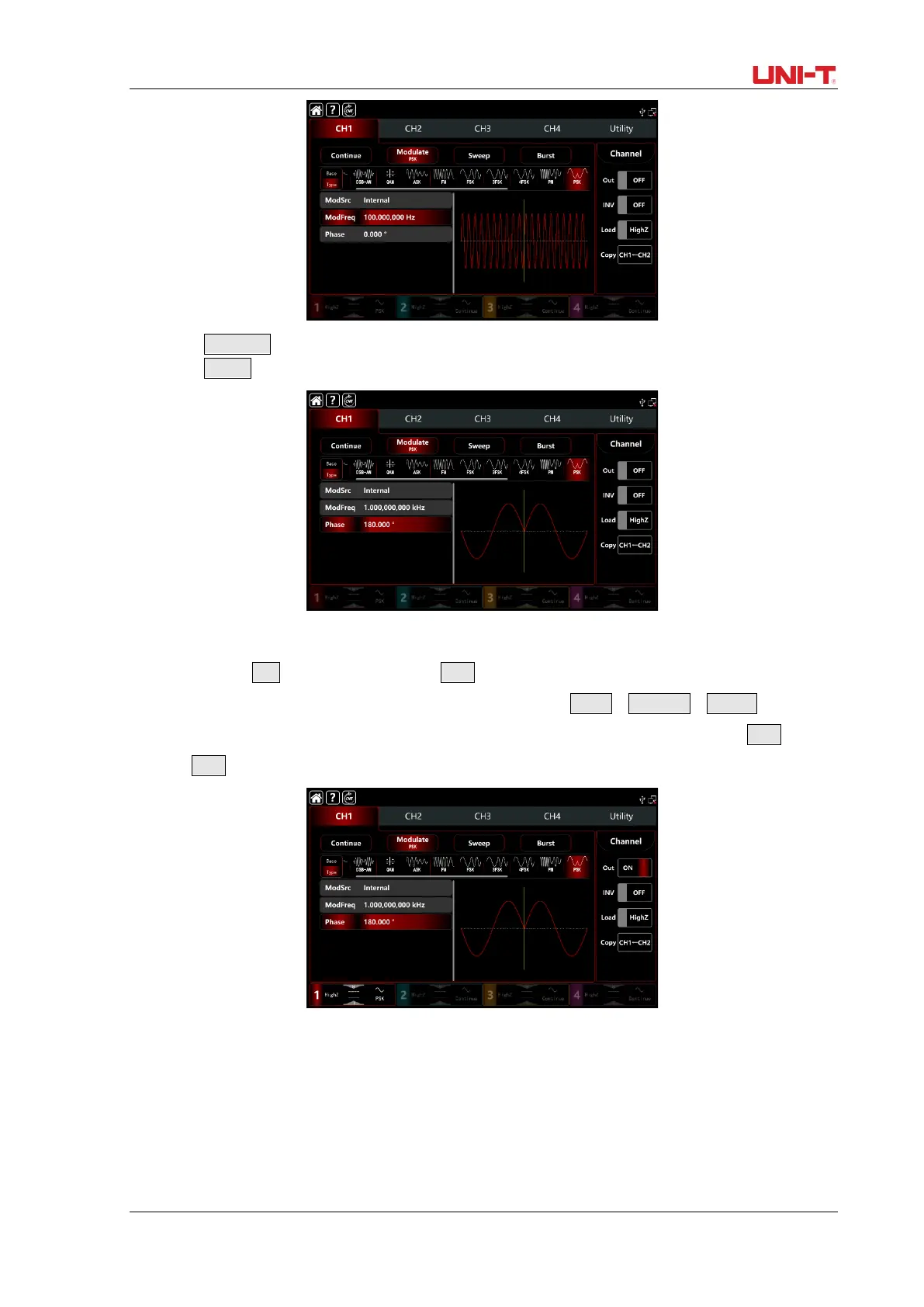

Tap ModFreq to pop-out visual keyboard to enter 1kHz.
Tap Phase to pop-out visual keyboard to enter 180°.
4) Turn on the output channel
Tap channel Out botton to ON or push CH1 key on the front panel to quick set the output
channel,and it can aslo turn on at the Utility interface,tap Utility→Channel→Output or
double-click the channel tab at the bottom of the screen to step through ON/OFF. CH1 key
and CH1 tab backlight light on indicating that the channel 1 output is turned on.
The shape of the PSK modulation waveform viewed through an oscilloscope is shown in the figure
below,
