UTG9000T Series Function Abitrary Waveform Generator
132
Set send type
It have tow send types: Auto and Manual, In auto mode, the instrument sends the set protocol
coding at a time limited lengthin certain time; in manual mode,push send key to sen the set
protocol coding.
1) Auto send mode
Tap SendType to select Auto mode (the default), turn on output function, the protocol signal
automatically and continuously outputs the waveform from the channel interface.
2) Maunal send mode
Tap SendType to select Manual mode (the default is Auto), tap Send on the right side to send
the set waveform.
Set interval time
If the send mode is auto, set the interval time of data send according to the actual condition. Tap Interval
to pop-out visual numeric keyboard to enter values and select unit. The interval time range can set to
20ns~1000s.
Comprehensive example
In SPI mode, set hexadecimal 13, 21,34,55,89 as the data format, clock 15kHz, interval time 5ms,
the setting steps as following,

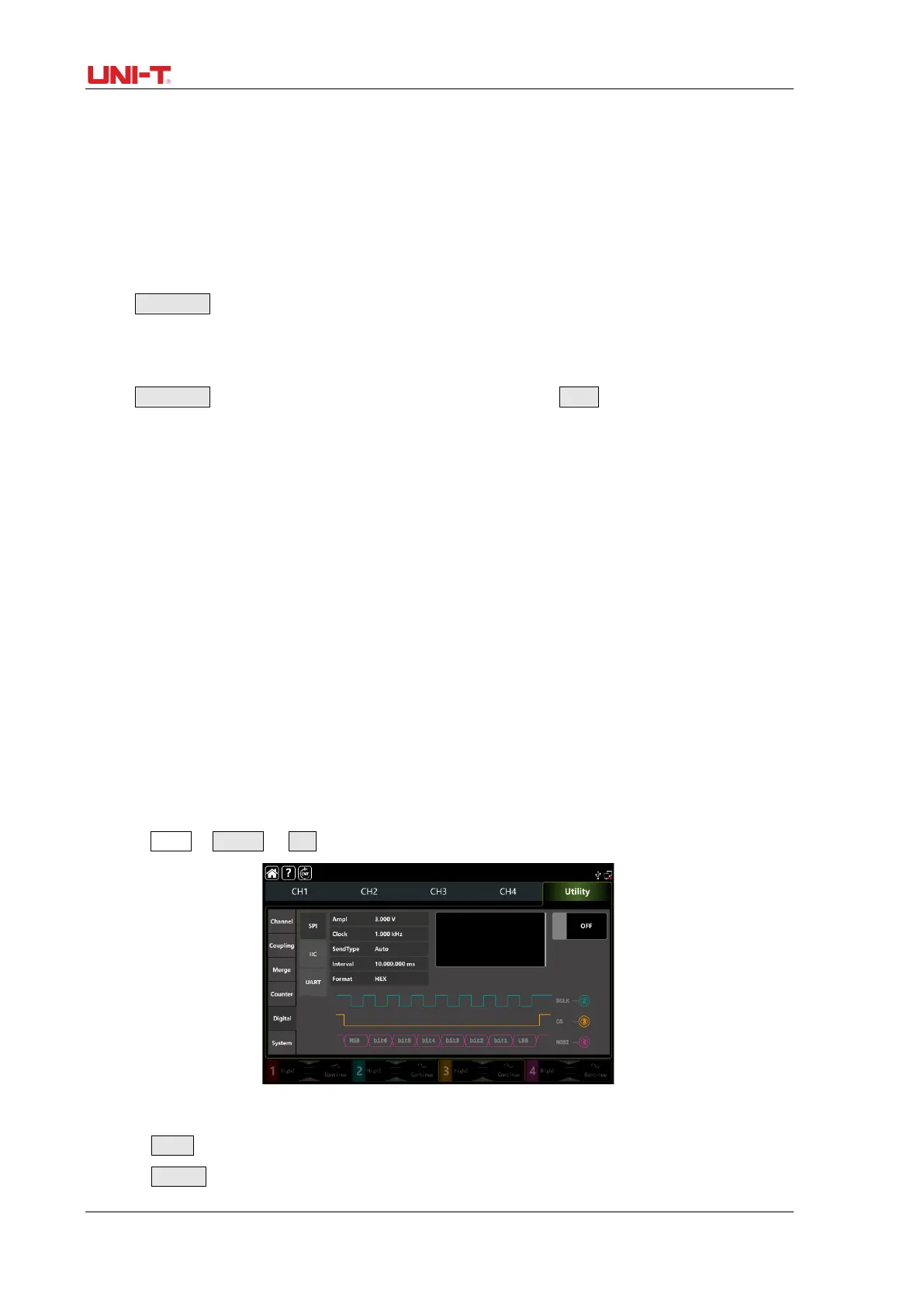

1) Turn on SPI mode
Tap Utility → Digital → SPI accordingly.
2) Set data parameter
Tap Clock to pop-out visual numeric keyboard to enter 15kHz.
Tap Interval to pop-out visual numeric keyboard to enter 5ms.
