UTG9000T Series Function Abitrary Waveform Generator
93
Select FM modulation

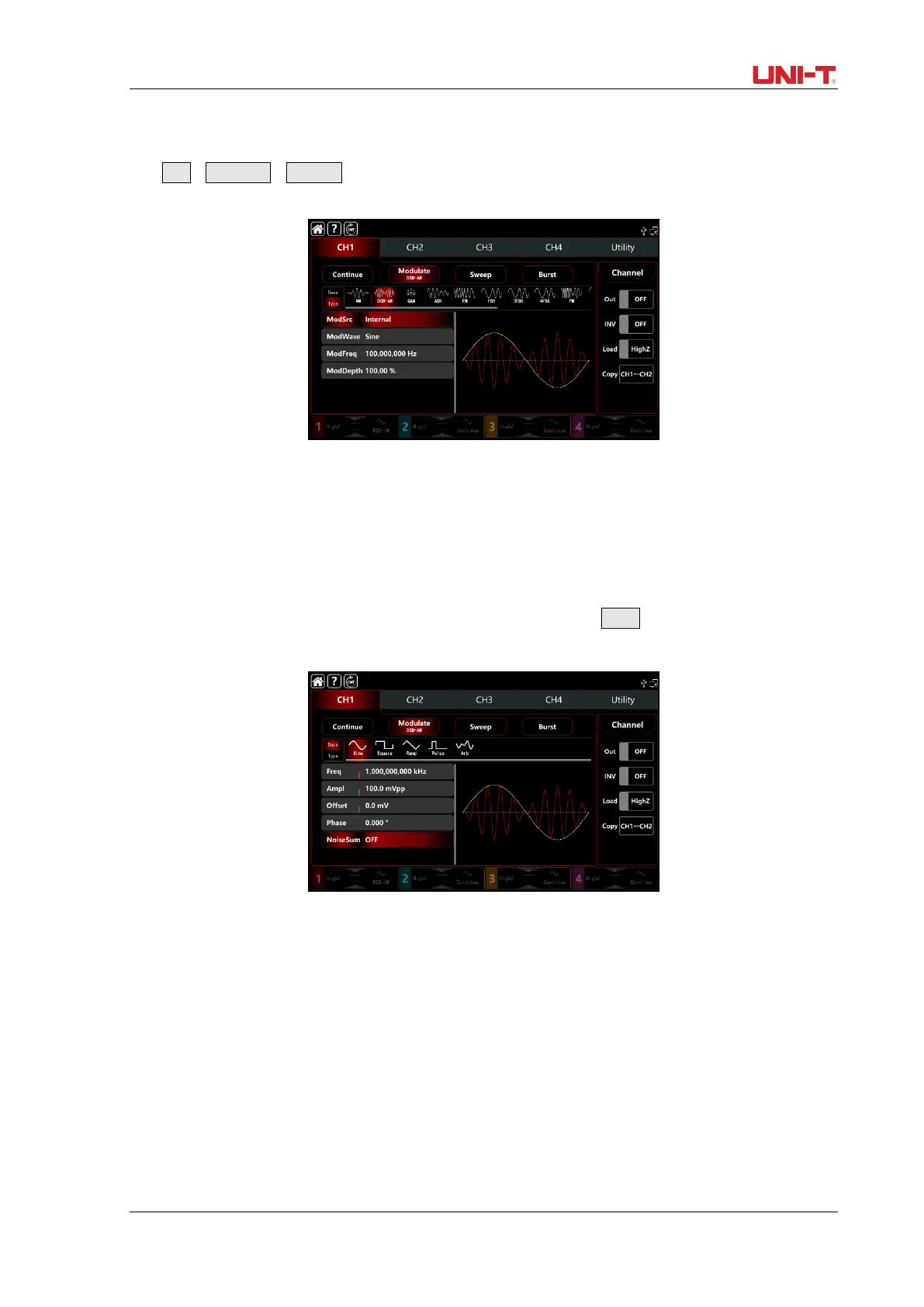

Tap CH1→Modulate→DSB-AM to turn on DSB-AM modulation, the instrument output the moduluated
waveform according to the current setting of the modulation wave and the carrier wave.
Select the carrier waveform
The carrier wave of DSB-AM: sine, square, ramp, pulse and arbitrary wave (except DC), the
default option is sine wave. After select DSB-AM modulation, tap Base to present the carrier
waveform on the right side.
Carrier wave frequency settings
Refer to The carrier wave frequency settings of AM modulation.
Select the source of modulation
UTG9000T function/arbitrary waveform generator can select internal or external modulation source.
When turn on DSB-AM modulation, the default modulation source is internal. Rotate multifunction knob
