UTG9000T Series Function Abitrary Waveform Generator
51

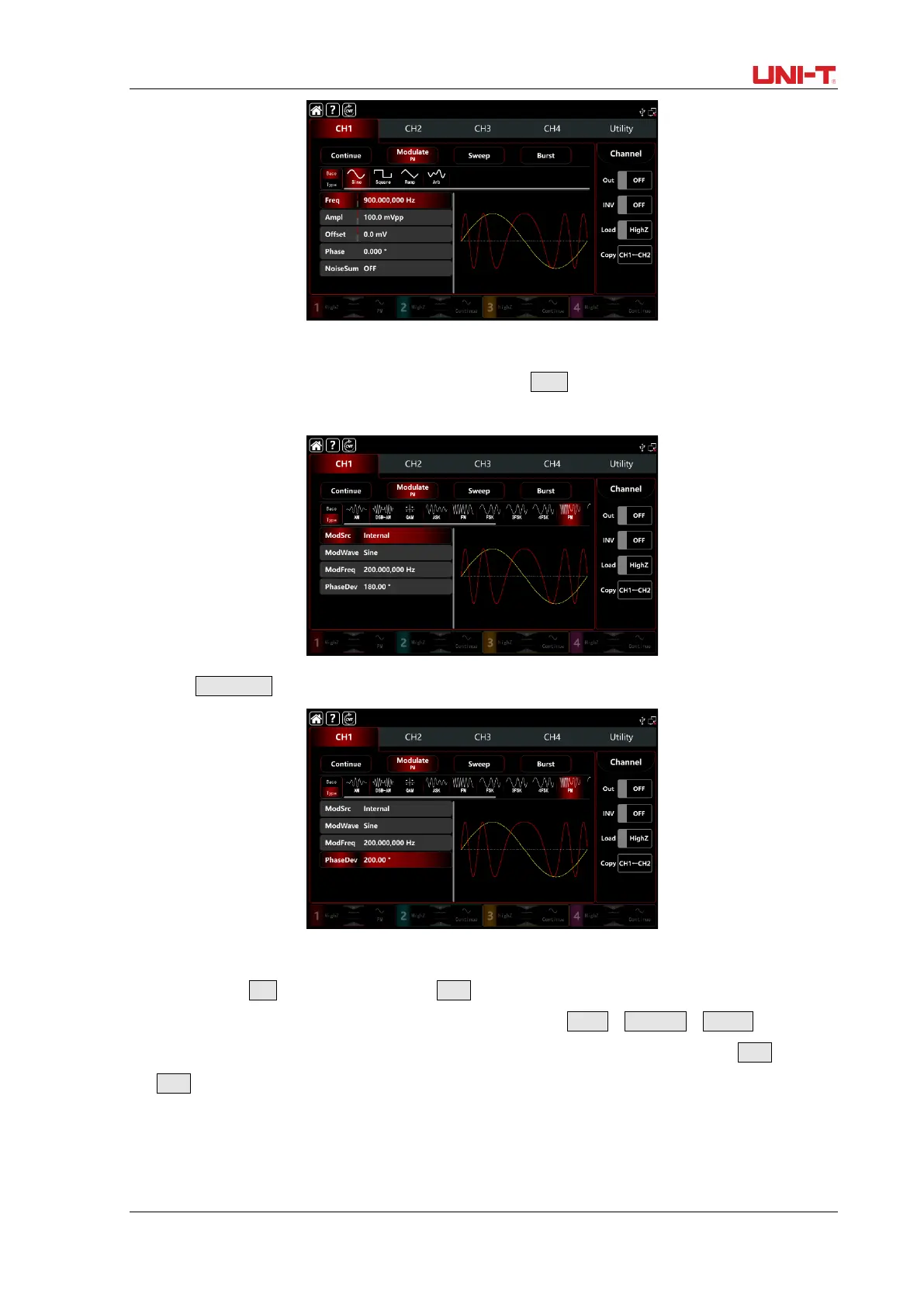

4）Set the phase deviation
After the parameter setting of the carrier wave, tap Type to return to modulation interface to
set the phase deviation.
Tap PhaseDev tab to pop-out visual numeric keyboard to enter 200°.
5）Turn on the output channel
Tap channel Out botton to ON or push CH1 key on the front panel to quick set the output
channel,and it can aslo turn on at the Utility interface,tap Utility→Channel→Output or
double-click the channel tab at the bottom of the screen to step through ON/OFF. CH1 key and
CH1 tab backlight light on indicating that the channel 1 output is turned on.
