UTG9000T Series Function Abitrary Waveform Generator
66

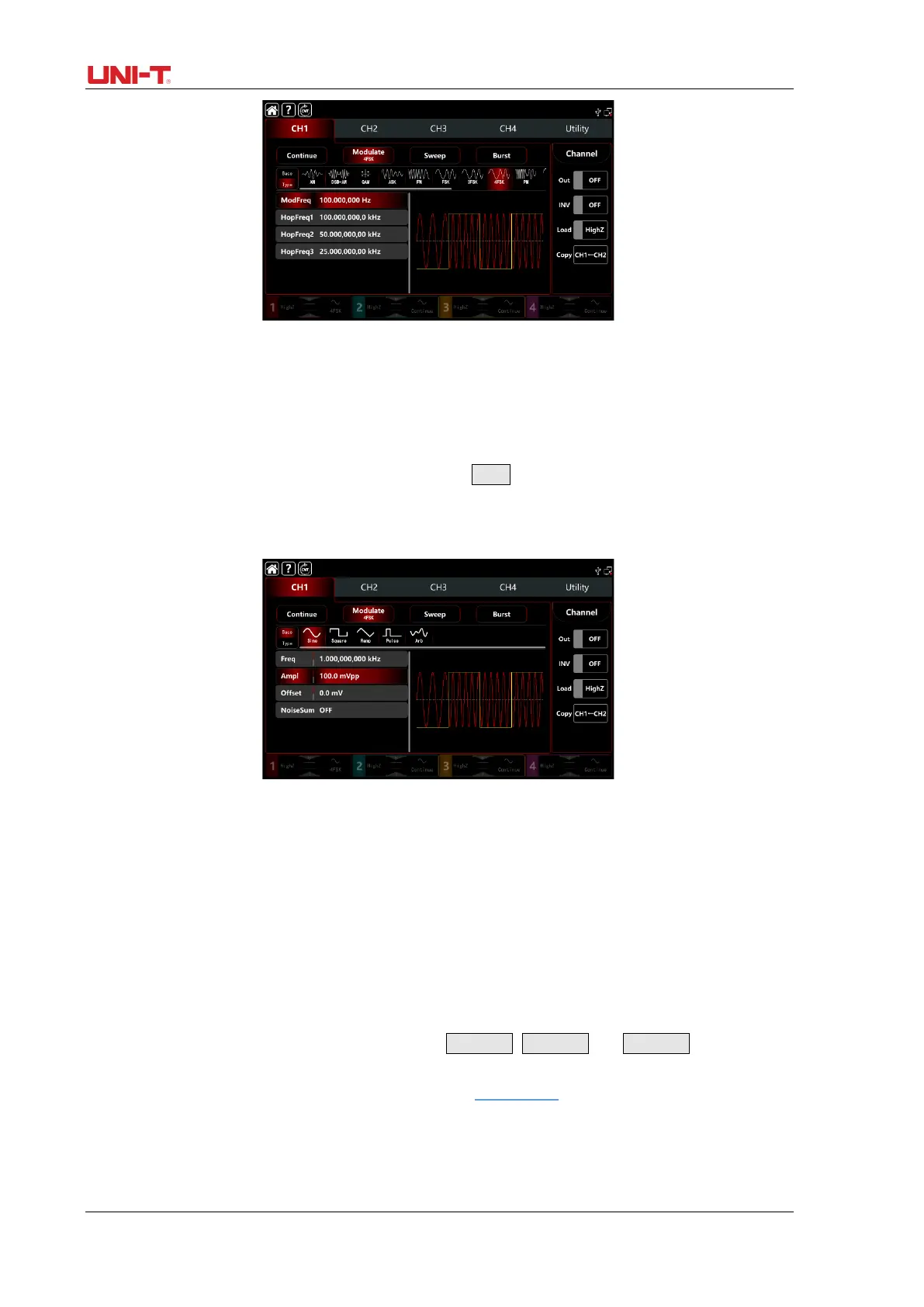

Select the carrier waveform
The carrier wave of 4FSK: sine, square, ramp, pulse and arbitrarty wave (except DC), the default
option is sine wave. After select FSK modulation, tap Base to present the carrier waveform on the
right side.
Carrier wave frequency settings
Refer to The carrier wave frequency settings of AM modulation.
Hopping frequency settings
Rotate multifunction knob, push direction key or tap HopFreq1, HopFreq2 and HopFreq3tab to pop-out
visual numeric keyboard to enter values and select unit in 4FSK modulation setting interface. The range of
hopping frequency depends on carrier waveform. Refer to Tabe 4-1/4-2 of AM modulation.
