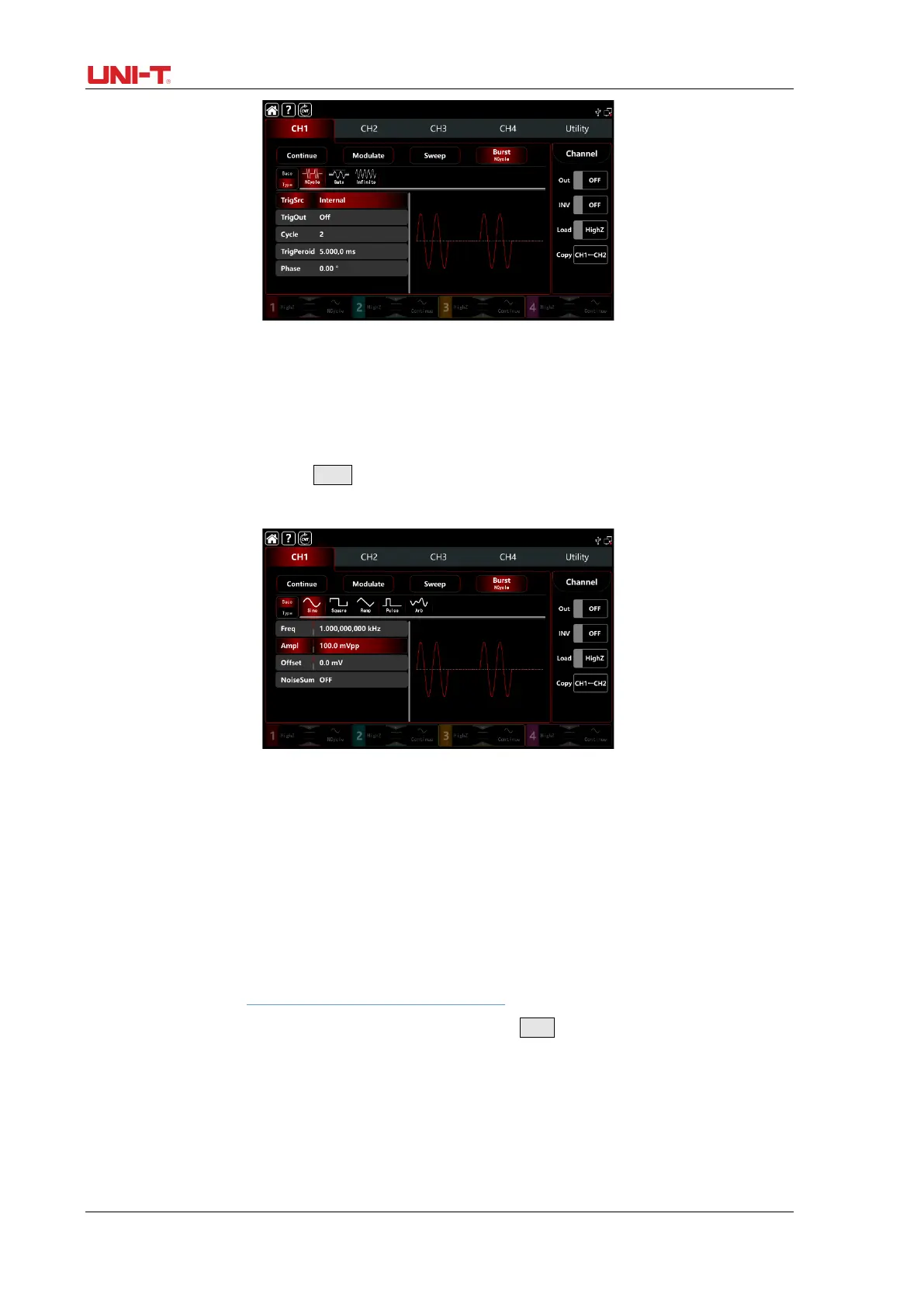

1) Select waveform
 N cycle mode supports sine, square, ramp, pulse and arbitrary wave (expect DC).
 Gating mode supports sine, square, ramp, pulse, arbitrary (expect DC) and noise wave.
 Infinite mode supports sine, square, ramp, pulse and arbitrary wave (expect DC).
After select waveform, tap Base to present the carrier waveform on the right side (sine wave
as default.)
2) Set waveform frequency
In N cycle and gating modes, waveform frequency defines the signal frequency during
period of pulse train, In N cycle mode, output the pulse train at a specified cycle times and
waveform frequency. In gating mode, use waveform frequency to output the pulse string
when the trigger source is high level.
Note: Waveform frequency is different from pulse string period. Pulse string is used to
specify the interval between pulse strings (only in N cycle mode). The default frequency is
1kHz, refer to The carrier wave frequency settings of AM modulation.
Rotate multifunction knob, push direction key or tap Freq tab to pop-out visual numeric
keyboard to enter values and select unit.
