UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
39
Comprehensive example
In AM modulation mode, set an internal 200Hz sine wave as a modulating signal, another carrier wave
signal with freqeuency 10kHz, amplitude 200mVpp, duty ratio 45%, and set the modulation depth to 80%,
the settings steps as following,

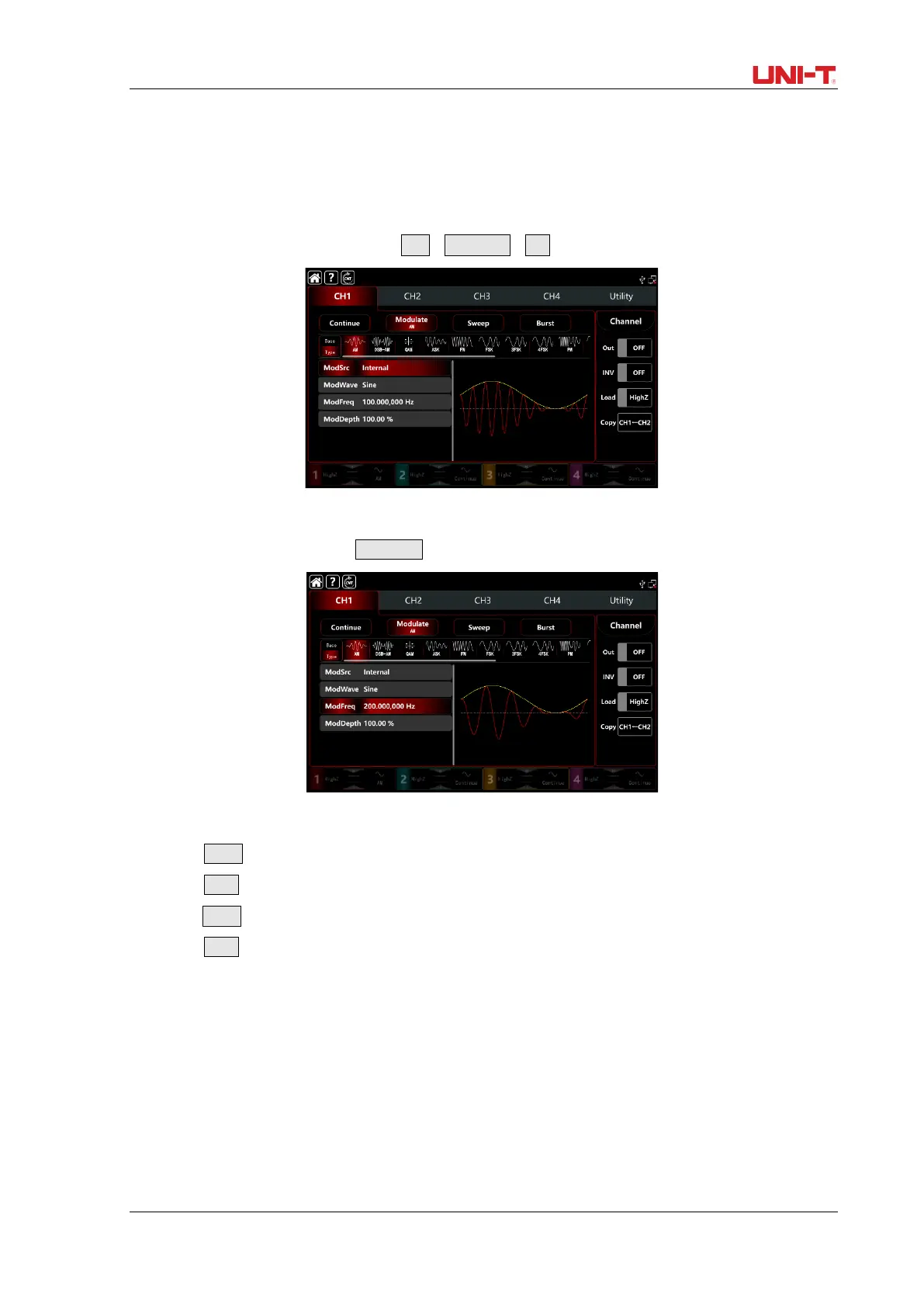

1） Turn on AM modulation mode: tap CH1→Modulate→AM accordingly.
2）Set the parameter of modulating signal
Base on the step 1) to tap ModFreq tab to pop-out visual numeric keyboard to enter 200Hz.
3）Set the parameter of the carrier wave signal
Tap Base to select Square as the carrier waveform (the default option is sine wave).
Tap Freq tab to pop-out visual numeric keyboard to enter 10kHz.
Tap Ampl tab to pop-out visual numeric keyboard to enter 200mVpp.
Tap Duty tab to pop-out visual numeric keyboard to enter 45%.
See the Figure as following,
