UTG9000T Series Function Abitrary Waveform Generator

Carrier wave frequency settings

Refer to The carrier wave frequency settings of AM modulation.

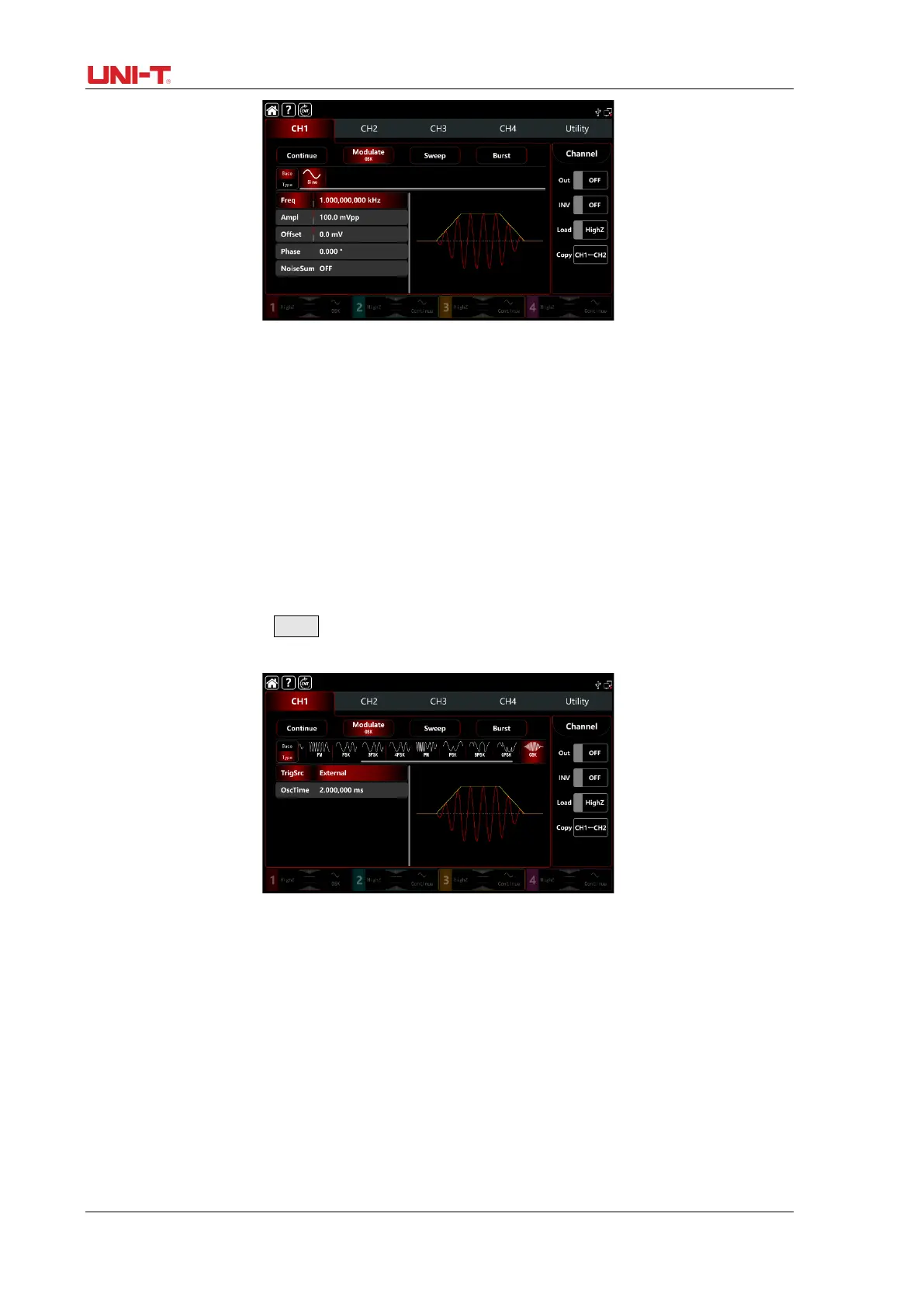

Select the trigger source of modulation

UTG9000T function/arbitrary waveform generator can select internal or external of the modulation

trigger source. When turn on OSK modulation, the default modulation source is internal. Rotate

multifunction knob or tap TrigSrc tab to step through internal or external modulation source in OSK

modulation setting interface.

1） Internal trigger source

When the modulation source is internal, the modulation wave is sine wave. Use OSK

rate to control the phase relationship of oscillation starting and stopped.

2） External trigger source

When the modulation source is external, rate will be hidden in paramteter list. Use the

external waveform to modulating the carrier wave. The OSK phase output is controlled by

logical level on the external digital modulation terminal (FSK Trig connector) on the back

panel.For example, output the current oscillation wave when the external input is low;
