Uniden BCD436HP User Manual

13
Base Station
This is the simplest approach to let you get started quickly. Decide on a location
that is convenient to a nearby wall outlet, has desk space to let you complete your
programming worksheets, will safely allow the indoor antenna to be extended, or
near a window to use an outdoor antenna.

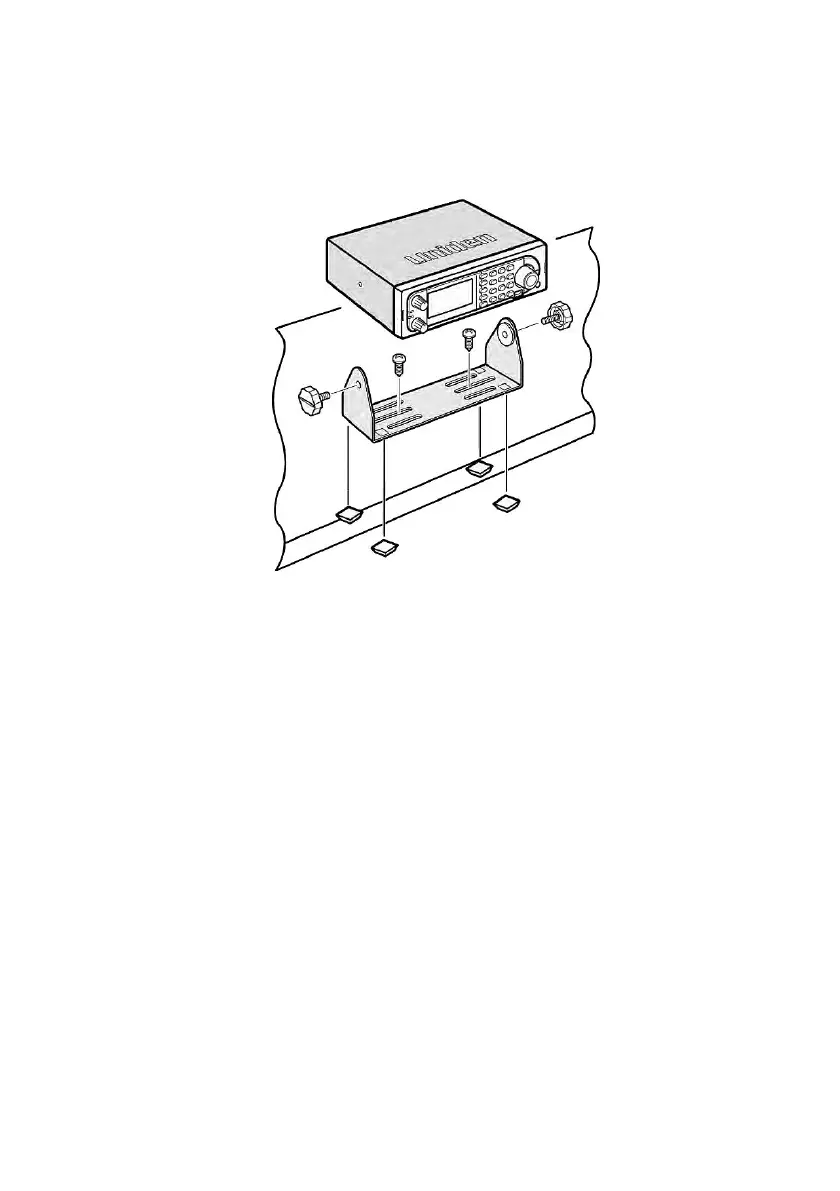

To secure the radio to a surface, by means of the mounting bracket, follow the
steps below:
1. Attach the four protective mounting feet to the mounting bracket when
you casually use the scanner on a flat surface. Should you desire to
permanently mount the scanner, remove the feet and use wood screws
through the bracket as described in Steps 2 and 3.
2. Use the bracket as a template to mark positions for the two mounting
screws.
3. At the marked positions, drill holes slightly smaller than the screws.
4. Align the bracket with the threaded holes on the sides of the radio case
so the bracket is beneath the radio. Secure the bracket using the two
threaded knobs. Never over tighten the knobs.
Once the radio is positioned, connect it to a source of AC power using the
supplied 13.8V, 750 mA AC adapter. Insert the barrel of the AC adapter to the
jack on the rear, upper right side of the radio marked. Insert the connector of the
supplied indoor telescoping antenna to the BNC Antenna Connector and apply
moderate pressure to secure it.

Uniden BCD436HP Specifications

General

Model	BCD436HP
Antenna	Removable SMA Antenna
Close Call RF Capture	Yes
Dynamic Memory	Yes
PC Programmable	Yes
Water Resistance	No
Category	Scanner Radio
Display	Dot-matrix LCD
Power Source	3x AA batteries or USB power
Weight	10.1 oz
Type	Handheld
GPS	Optional GPS receiver supported
Audio Output	Earphone jack (3.5 mm)
Trunking Systems Supported	Motorola, EDACS, LTR, APCO 25 Phase I and Phase II
Modulation Types	AM, FM, NFM, P25
Battery Life	Varies with usage
Display Type	LCD
USB Port	Yes
SD Card Slot	Yes
Frequency Range	25-512 MHz, 758-960 MHz, 1240-1300 MHz
