Uniden BCD436HP User Manual

15
Mounting Using the Bracket
1. Using appropriate screws or other hardware, secure the bracket.
2. Insert the scanner and insert the bracket knobs to lock the scanner in
position.
3. Attach the Cigarette Lighter Power Cord to the rear of the scanner and
plug the adapter end into a dash mounted 12V DC socket.
4. Attach a suitable mounted mobile antenna to the antenna jack on the
back of the scanner.

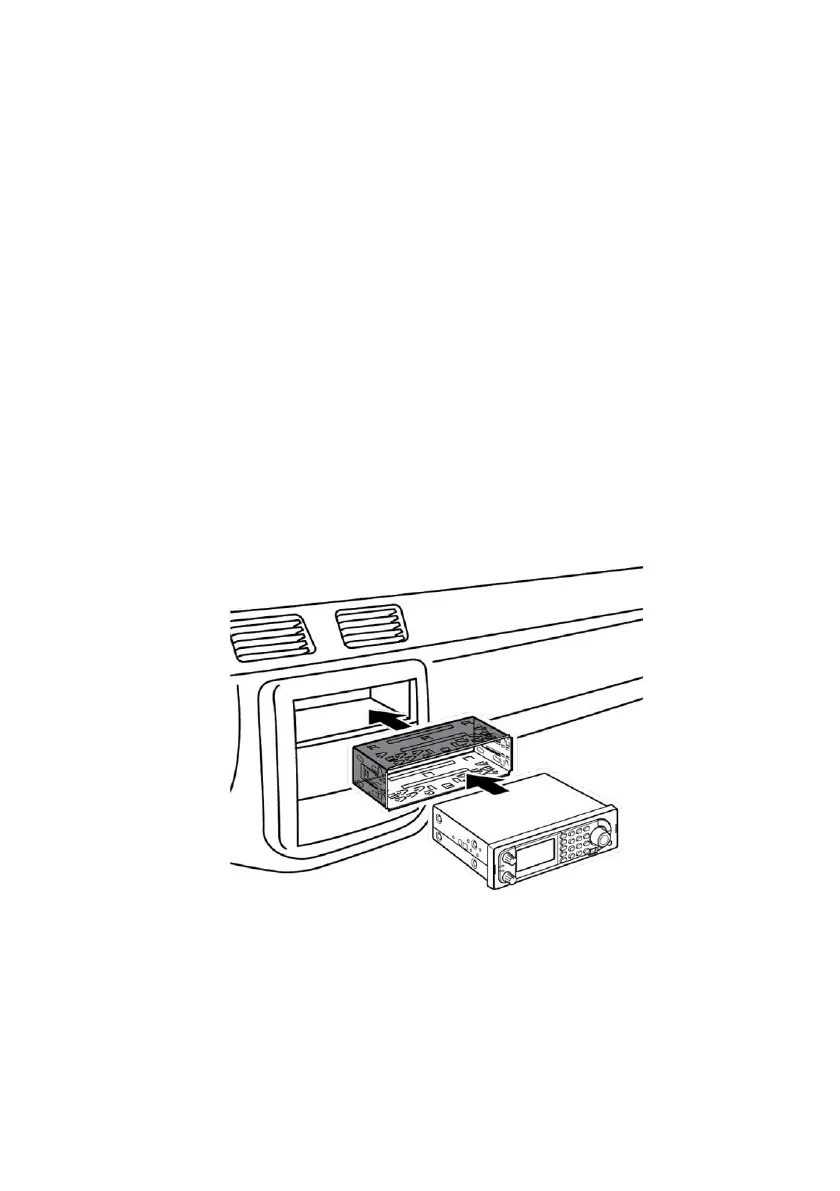

Mounting Using the DIN-E Sleeve
If you are unsure about how to install your scanner in your vehicle using the
optional DIN-E sleeve, consult your automobile manufacturer, dealer, or a
qualified installer. Before installing, confirm that your scanner fits in the desired
mounting area and you have all the necessary materials to complete the task.
Your scanner requires a 2 x 7-1/8 x 5-5/16 inch (50 x 180 x 135 mm) mounting
area. Allow an additional 2-3/8 inch (60mm) space behind the unit for connectors
and wires.
1. Remove the bracket if it is attached.
2. Remove the four Philips screws from four small tabs on the rear of the
case that secure the outer metal case and pull off the case (toward the
rear) with care.
3. Install the DIN sleeve into the opening in your dashboard, lip facing out.
4. Push out the top and bottom tabs to hold the sleeve firmly in place.

Uniden BCD436HP Specifications

General

Model	BCD436HP
Antenna	Removable SMA Antenna
Close Call RF Capture	Yes
Dynamic Memory	Yes
PC Programmable	Yes
Water Resistance	No
Category	Scanner Radio
Display	Dot-matrix LCD
Power Source	3x AA batteries or USB power
Weight	10.1 oz
Type	Handheld
GPS	Optional GPS receiver supported
Audio Output	Earphone jack (3.5 mm)
Trunking Systems Supported	Motorola, EDACS, LTR, APCO 25 Phase I and Phase II
Modulation Types	AM, FM, NFM, P25
Battery Life	Varies with usage
Display Type	LCD
USB Port	Yes
SD Card Slot	Yes
Frequency Range	25-512 MHz, 758-960 MHz, 1240-1300 MHz
