27

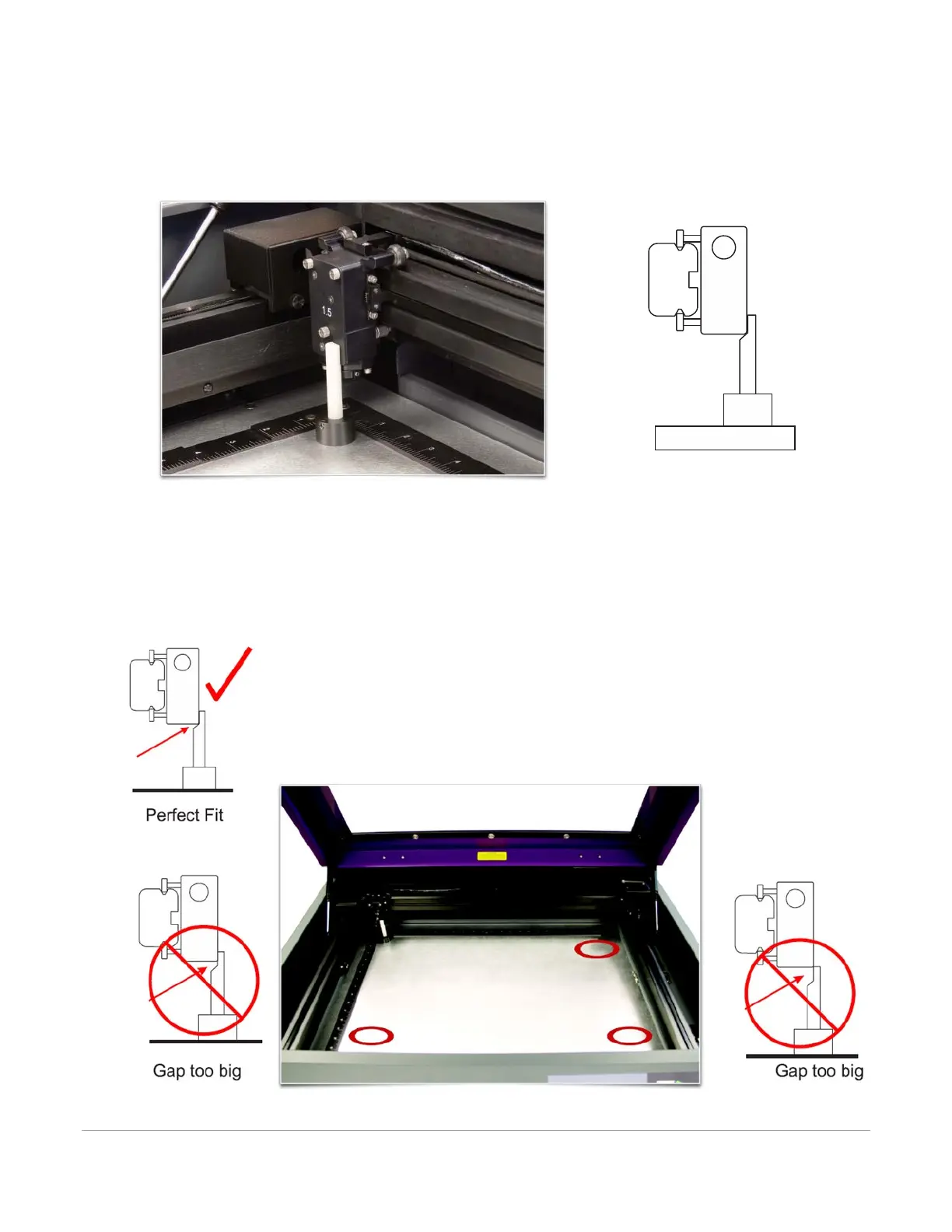

4. Place the focus tool* against the black lens plate (focus carriage) so that the flat edge of the focus
tool rests against the front side of the focus carriage as illustrated. Take note of the fit of the focus
tool (it should look like the diagram to the right) in the upper left corner of the system. This corner
will be your reference point.
*Alternate leveling method available. See the end of this section.
5. Using the upper left corner as a reference point, move the focus carriage by hand to each corner
and take note of any differences between the fit of the focus tool in the upper left corner of the field
and the fit of the focus tool in each of the other corners.
