Laser Cartridge Installation

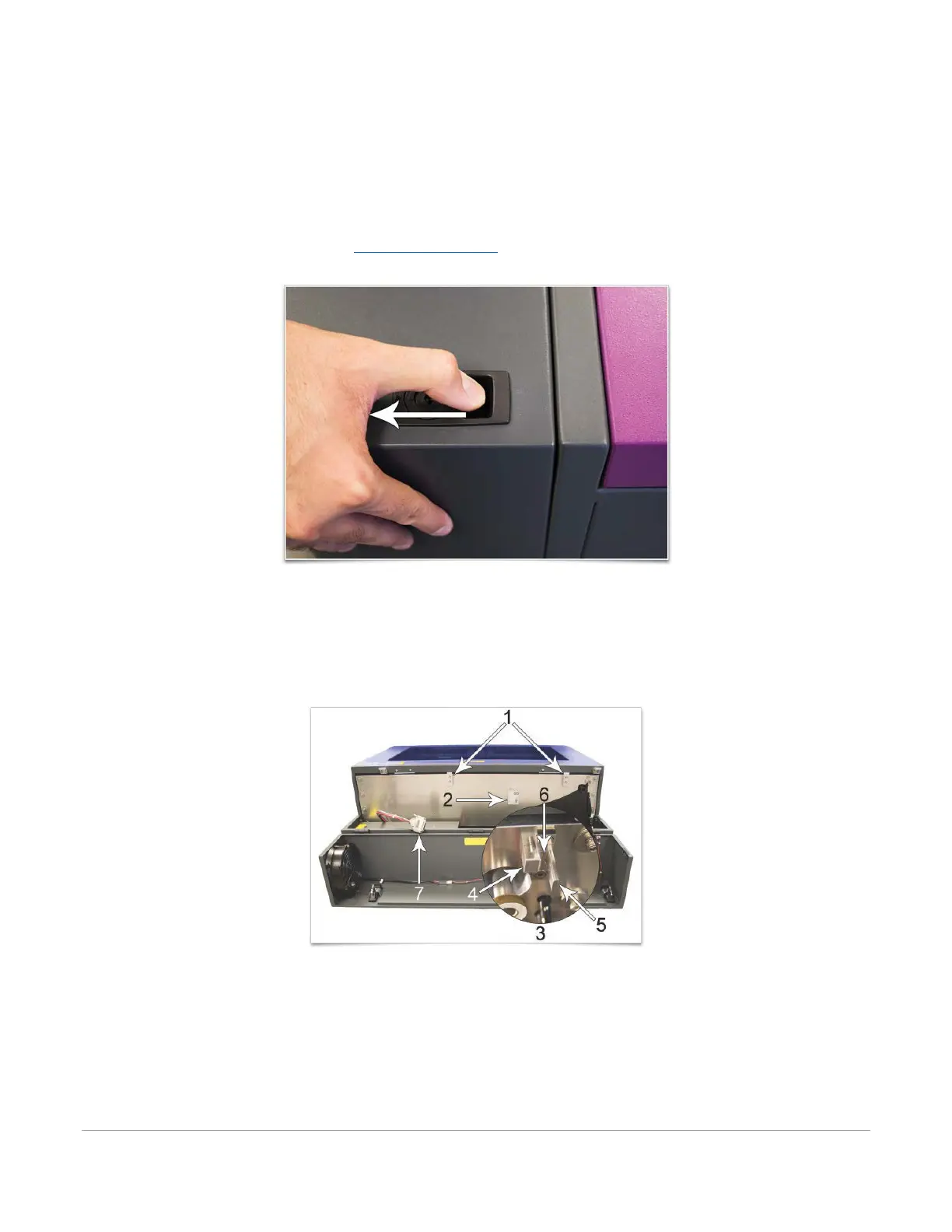

1. Make sure that your laser system power cord is not plugged in at this time. Open the rear laser
cover using the latches on top of the laser cover. Some laser systems are shipped with keyed locks
so make sure the latches are unlocked.
Note: Access latches for the laser cover are lockable. If you lose your keys, please contact our
Customer Service Team at support@ulsinc.com
for new keys.
2. Locate the mounting blocks (1), the laser latches (2) and alignment forks (3). Notice that the
alignment fork has a groove (6) located between two blocks, one short (4) and one tall (5).
