24

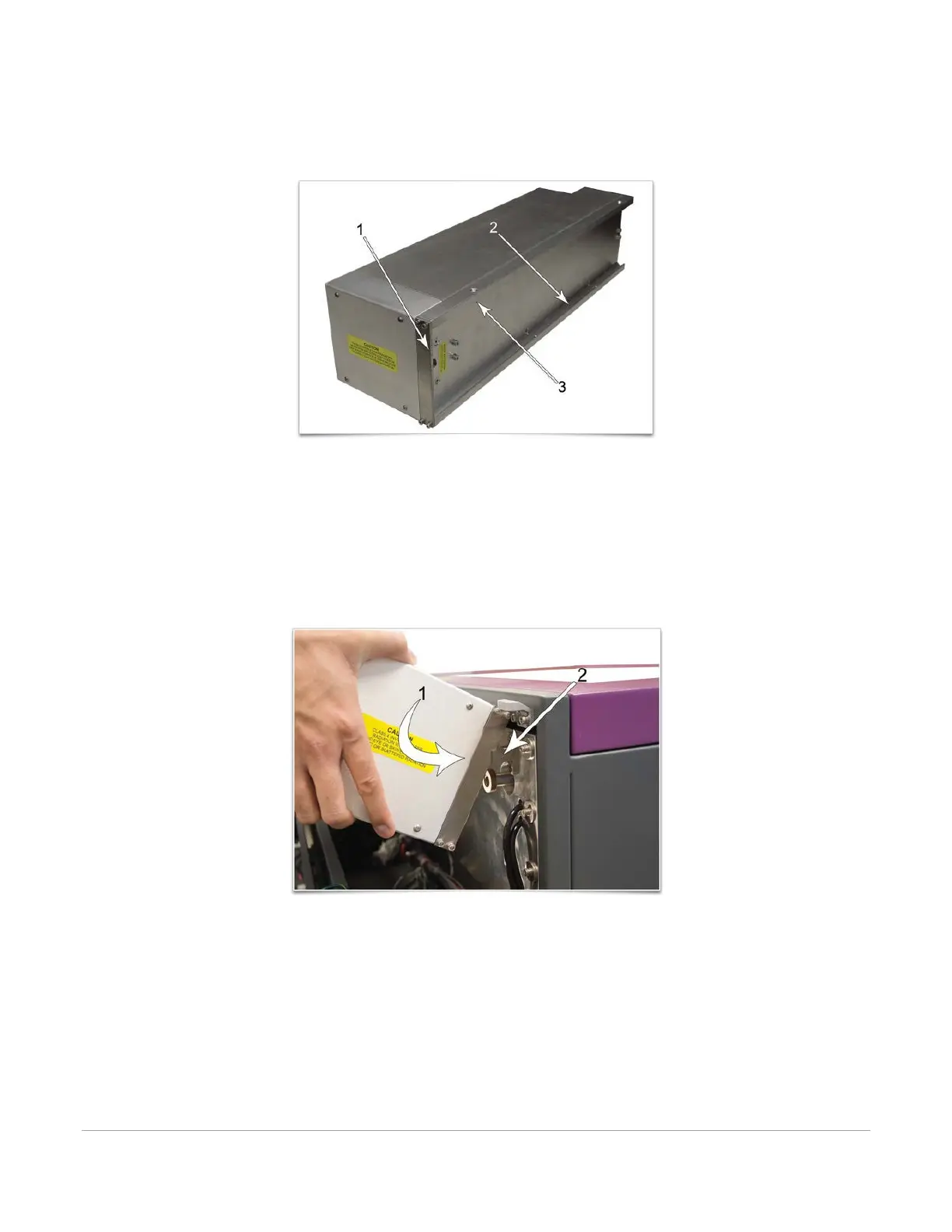

3. Locate the “V” groove along the upper (3) and lower (2) part of the laser cartridge base plate and
the alignment plate (1) at the end of the base plate.
4. Pick up the laser cartridge by the ends and tilt it at a 30° angle as shown (1). Mount the cartridge
onto the mounting blocks shown in step 2 by placing the upper “V” groove on top of the mounting
blocks. Slide the cartridge to the right until the outer edge (2) of the alignment plate contacts the
inside edge of the tall block of the alignment fork.
