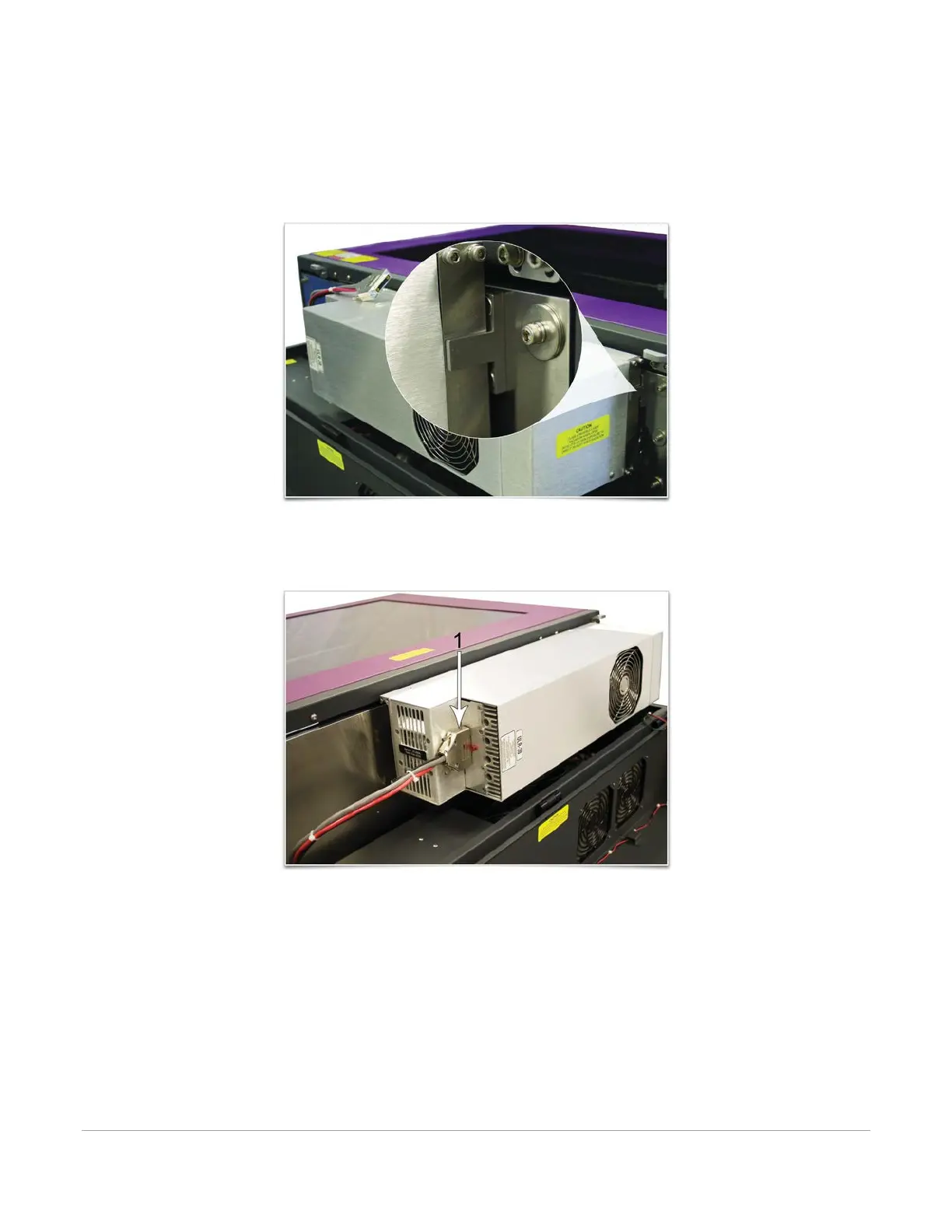

5. Slowly rotate the laser cartridge down into place, making sure that the alignment plate is centered
in the groove in the alignment fork. The laser should click onto the spring loaded laser catch shown
in step 2 to lock it in place. Never force the laser onto the laser latch. If the laser does not install
smoothly, check for obstructions such as pinched wires or hoses or a binding laser latch. Once
installed, verify that the alignment plate is centered within the alignment fork.
6. Plug in the power connector (1) to the laser cartridge.
7. Gently close the rear cover making sure not to pinch any wires or hoses.
8. Once the laser cartridge has been installed, proceed to “Laser System Leveling.”
