Universal Robots UR3/CB3 User Manual

13.12 Installation → Features

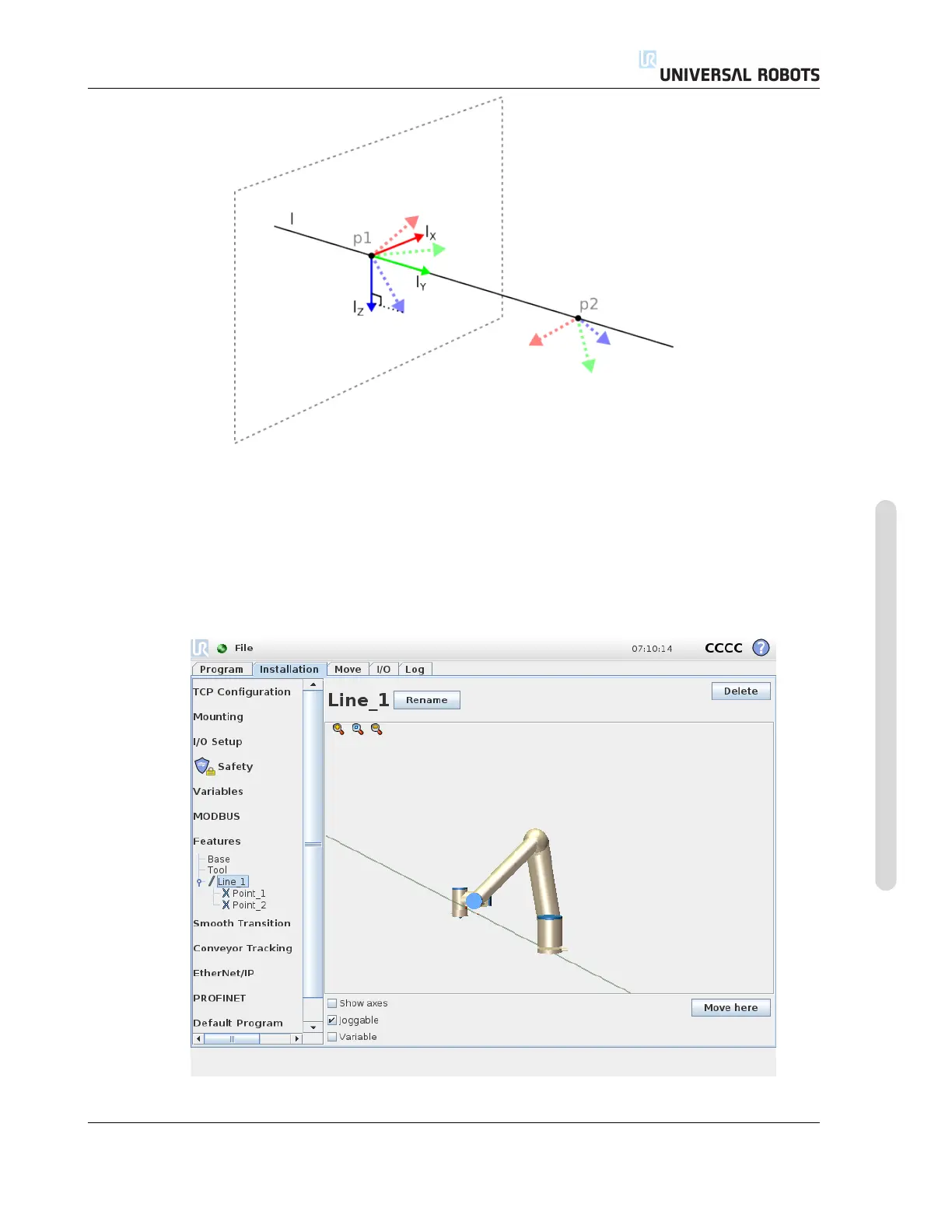

Figure 13.3: Definition of the line feature
In figure 13.3 the axis directed from the first point towards the second point, constitutes the y-axis of
the line coordinate system. The z-axis is defined by the projection of the z-axis of p1 onto the plane
perpendicular to the line. The position of the line coordinate system is the same as the position of
p1.
Version 3.10
Copyright © 2009–2019 by Universal Robots A/S. All rights reserved.
II-57 CB3
